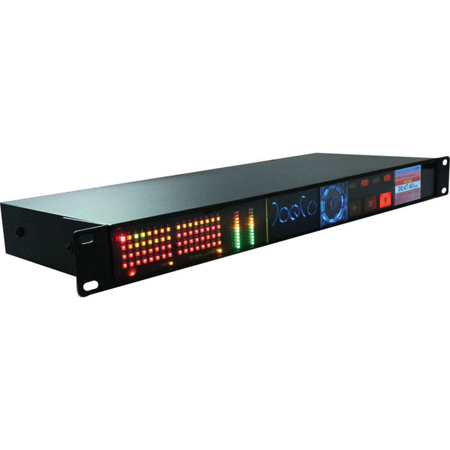

JoeCo BlackBox BBR64 64-Channel Recorder, Coaxial and Optical I/O, 24-bit/96kHz Audio Quality

SKU: JCBBR64MADI MFR: BBR64-MADI
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this 64-channel recorder, perfect for live sound and studio recording.
  • Enjoy high-quality 24-bit/96kHz digital recording, ensuring every nuance of your performance is captured.
  • Use USB 2.0 for seamless file transfer; ideal for quick backups and easy integration into your workflow.
  • This multitrack recorder supports various sample rates, offering flexibility for diverse audio projects.
  • Synchronize seamlessly with MIDI time code for post-production, film scoring, and complex audio setups.
  • Compact 1U rackmount design saves space, making it perfect for studios and on-the-go recording setups.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JoeCo BBR64 Specifications

  • Sample Rates

    44.1kHz, 48kHz, 88.2kHz, 96kHz

  • Bit Depths

    16bit
    24bit

  • Disk Interface

    USB 2.0

  • Format

    FAT32

  • File Type

    Broadcast WAV (BWAV)

  • Media

    USB 2.0 hard disk (7200RPM recommended), USB 2.0 flash drive - 200x minimum (except for MADI systems which have more demanding data rates), SHDC Class 10 with suitable adapter except MADI)

  • Monitoring

    1x 1/4" TRS jack socket, headphone mix/solo

  • Rack Mount

    19" rack mounted 1U

  • MIDI

    1x 5-pin DIN (open loop) MIDI time code (MTC) and MIDI machine control (MMC) protocol

  • LTC

    1x 1/4" TRS jack socket: Frame rates supported: 30fps, 29.97drop fps, 29.97non-drop fps, 25fps, 24fps, 23.98fps

  • Machine Control

    1x 9-pin D, SONY PII protocol

  • Audio Clock Synchronization

    2x RCA sockets AES3 / SPDIF Format, also used for communications to slave units

  • Footswitch

    Momentary switch on ring of LTC TRS socket

  • Keyboard

    1x mini DIN PS2 connector, Standard 102 key

  • Power

    9V-16VDC (<25W). 2.1mm DC inlet. PSU supplied

  • Analogue Inputs

    Levels: -10dBu / +4dBu switchable
    Maximum input level: +22dBu = 0dBFS
    A-D conversion: 24bit, 96kHz
    106dB S/N, 96dB THD+N (typical A-weighted)

  • Analogue Outputs

    Levels: -10dBu / +4dBu switchable
    Maximum output level: +22dBu = 0dBFS
    D-A conversion: 24bit, 96kHz
    106dB S/N, 94dB THD+N (typical A-weighted)

  • Dimensions

    425 x 150 x 44mm / 16.73 x 5.91 x 1.73"

  • Weight

    2.4kg / 5.29lbs

About JoeCo BBR64

Enhance your audio and video recording experience with the BlackBox BBR64 64-Channel Recorder, a high-tech, versatile, and reliable solution for capturing live performances and audio acquisitions. This advanced recorder, specifically designed to overcome the challenges of computer-based systems in live environments, offers a computer-free, superior quality alternative for multi-channel audio capture.

The BlackBox BBR64 Recorder, a product of JoeCo, is capable of recording or replaying up to 64 channels of 24-bit/96kHz audio, a testament to its superior audio quality. Available in both analogue and digital variants, it provides a range of professional interfaces compatible with any live mixing console. For larger track recordings, multiple units can be seamlessly linked.

Audio is recorded as mono broadcast WAV files to an external USB 2.0 drive or USB 2.0 Flash drive. With the integration of JoeCo's iXML plugin, PolyWAV files can also be recorded. This use of universally accepted file and disk formats on external storage solutions offers numerous benefits when used in the field or on tour, including eliminating the time typically needed to load recordings into a workstation for subsequent mixing and re-purposing.

The BlackBox BBR64 Recorder is user-friendly, requiring only input and output connections, power, and a USB drive to start recording. A full-color LCD screen and striking LED displays provide all the necessary information to monitor the recording process. The recorder can be remotely controlled and monitored via JoeCoRemote for iPad, and recordings can be named using either JoeCoRemote or a standard computer keyboard.

This durable recorder is equipped with a range of fail-safe features to ensure the security of your recordings, including the ability to recover files should power fail during a recording. It finds wide-ranging applications in live performance, broadcast, film & TV sound, and post-production.

The BlackBox BBR64 Recorder also features both coaxial and optical MADI connections, making it compatible with any MADI equipped console or other equipment. It can record a further 8 channels of analogue (balanced line in) for capturing audience reactions or general ambiance. The MADI input is echoed directly to the output to ease system integration, and the recorder can lock to or generate word clock, as well as locking to the received MADI data stream.

In addition to the PFL bus providing both high-resolution metering and headphone monitoring, an additional "mix" feature has been added to the headphone output. This feature-rich, high-tech recorder is a testament to JoeCo's award-winning, tried, and tested BlackBox Recorder design, making it an ideal choice for professionals seeking a high-quality, reliable, and versatile recording solution.

JoeCo BBR64 Features

  • Records up to 24 channels at 24-Bit / 96kHz. (analogue, AES/EBU and Light pipe versions). BBR64-DANTE record up to 64 channels. (Multiple units can be linked together for higher track counts.)
  • Records audio in Broadcast WAV format onto a regular USB 2.0 disk drive, USB Flash drive (FAT32 formatted), or SDHC card via USB2 connector. Built-in formatting facility included
  • Enables direct import of recorded audio files from the hard drive to any Mac or PC-based DAW for instant editing and remixing. No file transfer or conversion necessary
  • Is simple to operate via a sleek front panel menu-driven user interface and touch sensitive controls
  • Supports Linear Time Code, MIDI time code and SONY PII (9-pin) control, MIDI Machine Control and AES / SPDIF word clock
  • Can attach to the insert points of any live console to provide Virtual Sound Check facilities
  • Includes "fail safe" features for secure audio capture such as playback lockout and preventing accidental Stop
  • Allows the creation of headphone monitoring mixes, with level and pan on each track (analogue, AES/EBU and Light pipe versions). On MADI versions individual channels, or pairs of channels can be monitored on a PFL bus providing both hi-resolution metering and headphone monitoring
  • Features a QWERTY keyboard interface and Name Manager for easily creating templates and modifying track or song names
  • Offers enhancements for film, TV and broadcast applications including support for 23.98fps time code, improvements to 9-pin support for edit controllers and support for iXML

Key Features

  • Capture pristine audio with this 64-channel recorder, perfect for live sound and studio recording.
  • Enjoy high-quality 24-bit/96kHz digital recording, ensuring every nuance of your performance is captured.
  • Use USB 2.0 for seamless file transfer; ideal for quick backups and easy integration into your workflow.
  • This multitrack recorder supports various sample rates, offering flexibility for diverse audio projects.
  • Synchronize seamlessly with MIDI time code for post-production, film scoring, and complex audio setups.
  • Compact 1U rackmount design saves space, making it perfect for studios and on-the-go recording setups.

What's in the box:

  • JoeCo BlackBox BBR64 64-Channel Recorder
  • JoeCo 1 Year Parts and Labor Limited Warranty
