Netgear ProSafe 24-Port Gigabit Enterprise Class L2 Managed Switch Specifications

  • Physical Interfaces

    RJ-45 Connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (Auto Uplink on all ports): 24
    Small form-factor pluggable (SFP) modules for fiber Gigabit Ethernet interfaces: 4 slots

  • Layer 2 Services 1

    IEEE 802.1Q static VLAN (1024)
    IEEE 802.1p Class of Service (CoS)
    IEEE 802.1D Spanning Tree Protocol
    IEEE 802.1v Protocol VLAN & Port VLAN and MAC-based VLAN
    Voice VLAN
    Guest VLAN
    IP subnet-based VLAN
    IEEE 802.1 Q-in-Q
    IEEE 802.1w Rapid Spanning Tree
    IEEE 802.1s Multiple Spanning Tree
    IEEE 802.3ad Link Aggregation (LACP)
    IEEE 802.1x port access authentication

  • Layer 2 Services 2

    IGMP v1, v2, v3 snooping support
    IGMP querier
    Static multicast filtering
    Ingress rate limit in 1 Kbps increments
    Weighted round robin (WRR) queue technology
    MLD v1, v2 snooping

  • Switch Management Specifications 1

    SNMP v1, v2c, v3 with multiple IP addresses
    RFC 1157, 1902-1907
    RFC 768 UDP
    UDP relay
    RFC 854-859 telnet
    RFC 951 BOOTPRFC 1213 MIB II
    RFC 1757 RMON groups 1,2,3 and 9
    RFC 1215 SNMP Traps
    RFC 1493 Bridge MIB
    RFC 1643 Ethernet Interface MIB
    RFC 1534 DHCP and BOOTP interoperation
    RFC 2131, 2132 DHCP and BOOTP
    Private Enterprise MIB

  • Switch Management Specifications 2

    Port mirroring support (many-to-one)
    DHCP/BOOTP relay-primary and backup (RFC 3046, option 82)
    RFC 2030 Simple Network Time Protocol (SNTP)
    DHCP server
    DHCP L2 relay
    IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
    ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
    DHCP relay (with backup servers)
    GARP/GVRP/GMRP
    SYSLOG
    TFTP, SFTP, HTTP, SCP, or local USB flash firmware upgrade
    Port description
    RFC 1519 CIDR
    Proxy ARP
    DNS lookubp

  • Forwarding mode

    Store-and-forward

  • Bandwidth

    48GBps; 35.7 Mpps

  • Switch latency

    20 us for 64-byte frames (1 G to 1 G)

  • System memory

    128MB

  • Packet buffer memory

    Max support 0.75MB buffer memory

  • Code storage (flash)

    32MB

  • Address database size

    8 K media access control (MAC) addresses

  • Number of VLANs

    1024 (1-4093)

  • Number of trunks

    64

  • Number of queues

    8

  • Number of static route

    32

  • Number of routed VLANs

    32

  • Number of ARP entries

    480

  • Number of ACL rules

    224

  • Jumbo frame support

    up to 9 K packet size

  • Acoustic noise

    38.6 dB

  • Heat dissipation

    131.439 BTU/hr

  • Mean time between failures (MTBF)

    239,032 hours (-27 years)

  • LEDs: Per port

    Speed, link, activity

  • LEDs: Per device

    Power, fan, RPS status

  • Network Standards

    IEEE 802.3i 10BASE-T
    IEEE 802.3u 100BASE-TX, 100BASE-FX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3z 1000BASE-X
    IEEE 802.3x flow control

  • Power consumption

    38.5W maximum

  • Redundant power supply input

    12V

  • Electromagnetic Emissions

    CE mark
    EN 55022 Class A - Emissions
    EN 55024 - Immunity
    FCC Part 15 Class A
    VCCI Class A
    C-Tick

  • Electromagnetic Safety

    CE mark
    EN 60950-1
    UL/cUL 60950-1

  • Modules

    ProSafe AGM731F 1000BASE-SX SFPGBIC
    ProSafe AGM732F 1000BASE-LX SFPGBIC
    ProSafe AGM733 1000BASE-ZX SFPGBIC
    100FX SFP LC transceiver

  • Operating temperature

    0deg. to 55deg. C (32deg. to 131deg. F)

  • Storage temperature

    -20deg. to 70deg. C (-4deg. to 158deg. F)

  • Operating humidity

    90% maximum relative humidity, non-condensing

  • Storage humidity

    95% maximum relative humidity, non-condensing

  • Operating altitude

    3,000 m (10,000 ft) maximum

  • Storage altitude

    3,000 m (10,000 ft) maximum

  • Dimensions (W x D x H)

    440 x 205 x 43 mm (17.3 x 8.1 x 1.7")

  • Weight

    3.65 kg (8.05 lbs)

  • UPC Code

    606449069150

0 Accessories for Netgear ProSafe 24-Port Gigabit Enterprise Class L2 Managed Switch

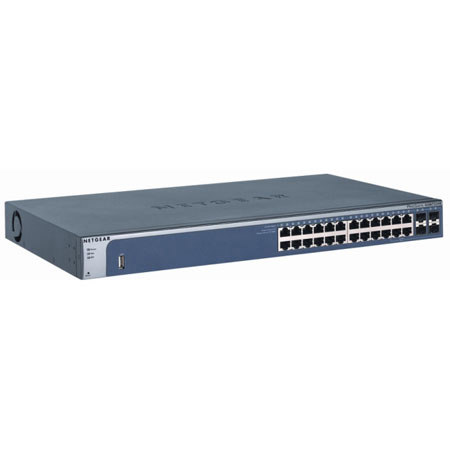

About Netgear ProSafe 24-Port Gigabit Enterprise Class L2 Managed Switch

The Netgear ProSafe delivers wire-speed 24-Port Gigabit performance and a full set of Layer 2 management features, as well as static routing with unsurpassed affordability. This next-generation, high-speed switch delivers maximum throughput where you need it - to high-performance workgroups at the edge of the network, or as a backbone for fast Ethernet switches and high-speed servers in demanding small networks. The non-blocking design offers full Gigabit throughput simultaneously to all 24 ports of 10/100/1000 to ensure reliable performance. Flexible fiber connectivity is enabled through four combination small form-factor pluggable (SFP) gigabit interfaces. Layer 2 management functionality delivers reliability, control and availability.

Static routing enables inter-VLAN routing and provides a faster network and more effective bandwidth management. Access control lists (L2-L4) provide robust security, while L2-L4 based QoS provides enhanced traffic management capabilities. The cost-effective Netgear ProSafe 24-port Gigabit L2 Managed Switch creates a more productive - and future-proof - network. With increasing bandwidth requirements from applications such as voice, video, database management and other services that slow throughput and response time, you can unleash your network and enable maximum productivity with Gigabit Ethernet for today's high-performance environments.

Multiple Netgear fully managed switches can be managed via a single IP address. Optimize bandwidth, security and control with full Layer 2 management capabilities. Network administrators can use any combination of these features to ensure uptime, availability, bandwidth and throughput.

Netgear ProSafe 24-Port Gigabit Enterprise Class L2 Managed Switch Features

  • Powerful: Full 24 10/100/1000 ports and a non-blocking design provide wire speed throughput and maximum bandwidth for the most demanding network environments. Small form-factor pluggable (SFP) modules deliver choice in 1000BASE-SX, 1000BASE-LX or 1000BASE-ZX (70Km) optics
  • Easy to Use: Move up to Gigabit power in minutes. Use either of these solutions as a managed switch out of the box - just plug and play! All ports are auto-negotiating and support Auto Uplink technology
  • Manageable: Meet your management needs with SNMP (v1, v2c and v3), RMON, Command Line Interface (CLI) and completely redesigned Web-based GUI, ProSafe Control Center
  • Outstanding: These products offer Layer 2 management and full Gigabit power at a compelling price. Use at the edge to improve workgroup connections, or at the core to upgrade a Gigabit Ethernet backbone - now you can afford the power your network deserves

What's in the box:

  • Netgear ProSafe 24-Port Gigabit Enterprise Class L2 Managed Switch
  • Null Modem Cable
  • Rubber Footpads
  • Power Cable
  • Rack Mount Kit
  • Installation Guide
  • Resource CD-ROM
  • Netgear Lifetime Warranty
