Juice Goose SQ-1500 3 Sequenced 15A Power Distribution System with Remote Control Capability

If you're seeking a robust and reliable power distribution solution, the SQ-1500 3 Sequenced 15A Power Distribution System with Remote Control Capability is an excellent choice. This high-quality system is designed for single rack applications where local or remote control is necessary, offering a convenient and user-friendly experience.

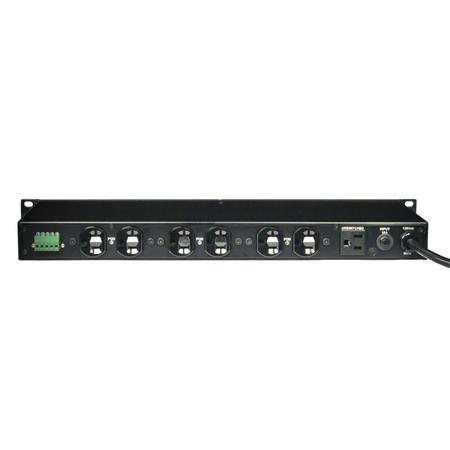

The SQ-1500 boasts a 15 amp capacity and features seven AC power outputs located on the rear of the chassis, one of which is unswitched. The remaining six outputs are grouped into three Power Pods, each containing two outputs. Each Power Pod represents an individual sequence event, providing a flexible and efficient power distribution setup.

This durable power distribution system is equipped with Juice Goose's superior surge and spike protection, as well as line noise filtration, ensuring the safety and longevity of your connected devices. The front of the chassis features LED indicators for real-time monitoring of the processor and sequencing functions. A green flashing LED signifies the ongoing operation of the processor that controls and drives the sequencer, while individual red LEDs are linked to the output of each of the relays, lighting up when their respective relay latches.

The SQ-1500 can be activated either by the switch on the front of the unit or by a remote contact closure, offering flexibility in control. The remote control terminal on the back of the SQ-1500 has five positions, allowing the unit to be controlled by closing and opening a latching contact. This feature makes the SQ-1500 compatible with a variety of latching devices, including custom mounted single or double pole switches, relays, and controllers from manufacturers like Crestron and AMX.

Local controls and monitors are also available on the SQ-1500. A two-position sequence switch on the front of the chassis is active only if there is no contact closure on the connect terminal on the back of the unit. A Manual Override switch allows for manual operation of the SQ-1500, overriding the control circuit in the event of a fault or failure. This switch activates all outlets at once without sequencing, providing an additional layer of control.

In summary, the SQ-1500 3 Sequenced 15A Power Distribution System with Remote Control Capability is a versatile, reliable, and high-quality solution for your power distribution needs. Its user-friendly design, high outlet count, and remote control capabilities make it a standout choice in power distribution systems.
