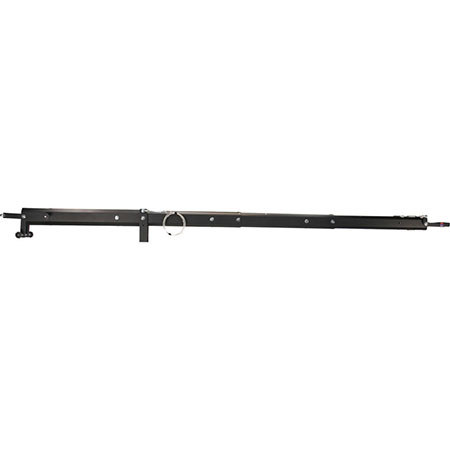

JonyJib Pro 15' Jib Arm with LCD Monitor Mount and Mitchell Mounting Hub

The JonyJib Pro 15' Jib Arm is a modular jib arm built to be lightweight and portable without sacrificing functionality. The design revolves around a series of 4' sections that provide 3' of extension each (since there is a 1' overlap when the modules are connected). This model comes with 4 sections, for a total height of 15'. All the modules of the jib arm can be stored in a 48" tripod bag. Also included in this package is a camera platform, leveling cable, pivot bracket, Mitchell mounting hub and a rear control and weight mounting center.

Mitchell Mounting Hub
The JonyJib Pro mounts to a Mitchell mount style tripod via this 150mm Mitchell mounting hub. A 2.75" nut holds the hub in place on the Mitchell mount. The weight of the jib's pivot bracket attaches to an aluminum disc that glides on an oil impregnated bearing. This gives the JonyJib perfect drag for smooth arcing moves. The friction knob allows you to brake the jib or apply additional drag as needed.

Rear Control Center & Weight Bar
This unit provides a horizontal bar to mount your controls upon. It also provides a horizontal primary weight bar for your counterweights. The recommend combination is 25, 10, 5 and 2.5 lb cast iron plate weights with at least a 1" mounting hole. This assembly swivels, further absorbing unwanted vibration or movement from the operator.
