JK Audio BlueSet 5-Pin XLR Wireless Headset Interface For Intercoms
See all JK Audio items

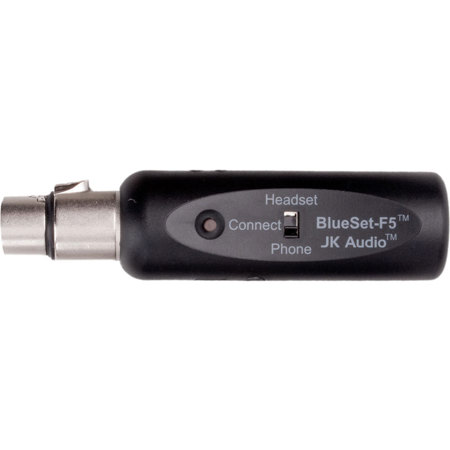

JK Audio BlueSet 5-Pin XLR Wireless Headset Interface for Intercoms

SKU: JKABSET
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JK Audio BlueSet Specifications

Output

Output

Jump to...

  • Output

    1/8" (3.5mm) stereo

  • Impedance

    1000 ohms

  • Level

    15 mV RMS (-34 dBu nom)

Bluetooth Wireless Technology

Jump to...

  • Standard

    Bluetooth 3.0

  • Distance

    66' (20m)

  • Frequency Response

    Hands-Free (Full Duplex): 300 Hz- 3.4 kHz
    Hands-Free (Full Duplex HD): 50 Hz- 7 kHz

XLR Pinout

Jump to...

  • Pin 1

    Headset Mic (low)

  • Pin 2

    Headset Mic (high)

  • Pin 3

    Headphone (low)

  • Pin 4

    Headphone (high)

  • Pin 5

    Headphone (high)

Misc

Jump to...

  • Connector

    Mini-USB Series B

  • Battery

    Internal Lithium-Ion Polymer rechargeable

  • Dimensions

    1.1 x 4.4" (2.8 x 11.2cm)

  • Weight

    2.1 oz (60g)

Other

Jump to...

  • UPC Code

    814170010574

About JK Audio BlueSet

Communications Unleashed.
These headset interfaces plug directly into most Party- Line (PL) belt packs, replacing the wired headset. A 3.5 mm stereo headset jack contains a mic level output signal suitable for recording, with the beltpack headphone signal on the left channel, and the Bluetooth return signal on the right. A switch selects between connection to a 3rd party Bluetooth headset or a cell phone.

Headset Connect
Pair BlueSet to your Bluetooth headset. Leave your belt pack on the desk as you walk around the room.

Phone Connect
Pair BlueSet to your cell phone to extend your system around the world. The belt pack Mic/Talk button controls audio from the cell phone into the intercom system.

HD Voice
BluePack now features HD Voice technology, allowing 7 kHz Wide Band Speech when used with compatible phones on compatible networks.

Intercom Headset Compatibility
Female and Male XLR four and five pin versions available: BlueSet-F4, BlueSet-F5, BlueSet-M4, BlueSet-M5

JK Audio BlueSet Features

  • Electret / Dynamic Headset Compatibility
  • HD Voice Compatible (Wide-Band Speech)
  • Bluetooth Wireless Technology
  • Mini USB power jack
  • >6 hours on Internal Li-Ion Battery
  • Trim pot adjusts Bluetooth Return

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Electret / Dynamic Headset Compatibility
  • HD Voice Compatible (Wide-Band Speech)
  • Bluetooth Wireless Technology
  • Mini USB power jack
  • >6 hours on Internal Li-Ion Battery
  • Trim pot adjusts Bluetooth Return

What's in the box:

  • BlueSet 5-Pin XLR Wireless Headset Interface
  • VAC Power Supply
  • Universal Charger Adapter Kit
  • 3.5mm Mini Stereo Cable (1m)
  • JK Audio 2 Year Limited Warranty
