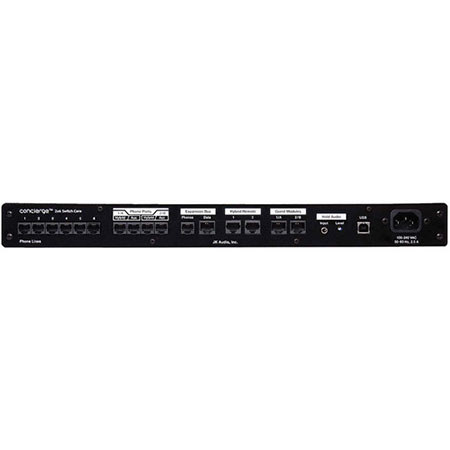

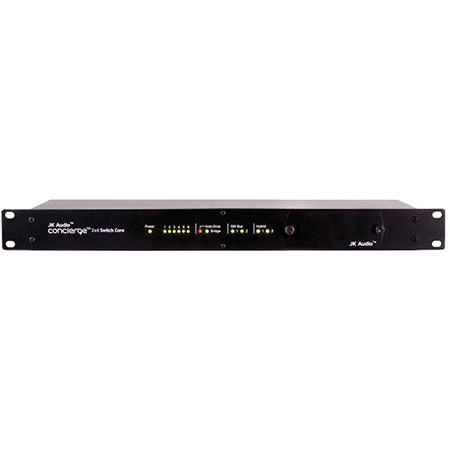

JK Audio Concierge 2x6 Switch Core, 20kOhms Input Impedance

SKU: JKCON2X6 MFR: CON2X6
Earn VIP Reward Points

Key Features

  • Manage calls like a pro! This audio interface switches between 2 phone lines & 6 outputs.
  • Enjoy low latency audio for seamless communication, perfect for broadcast or podcasting.
  • Crystal-clear sound quality ensures every call is crisp with this computer audio interface.
  • Built tough for daily use, this JK Audio interface offers reliable performance for years.
  • Driver support is a breeze! Easy setup gets your digital audio interface running quickly.
  • Ideal for call centers & studios, offering versatile connectivity at an unbeatable price!
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JK Audio Concierge 2x6 Specifications

  • Phone Lines

    Connector: RJ-11C
    Isolation: 1500V AC
    Ringer: 0.5B REN

  • Hold Audio Line Input

    Connection: 3.5mm mono
    Impedance: 20 kOhmss
    Level: (-10 dBu) nom.

  • USB

    Connector: Type B
    Standard: v2.0

  • Power

    120-240 VAC, 50-60 Hz, 25 Watts max

  • Connector

    IEC320-C14

  • Dimensions

    1.75 x 7.3 x 19" / 4.45 x 18.54 x 48.26cm

  • Weight

    5.4lbs / 2.45kg

  • UPC Code

    00814170010659

About JK Audio Concierge 2x6

With the introduction of the JK Audio Concierge 2x6 Switch Core, professionals in the audio industry can now experience a seamless integration of telecommunication within their audio setups. This high-quality switch core is the centerpiece of a modular talk show system, expertly designed to facilitate the connection of two hybrids across six phone lines. The innovative switch matrix efficiently routes six incoming analog phone lines to compatible JK Audio innkeeper 1rx or innkeeper 2 Digital Hybrids, ensuring a user-friendly interface for managing calls and audio routing.

The Concierge 2x6 Switch Core is not only reliable but also boasts a high input impedance of 20kOhms, making it the ideal choice for audio professionals who demand the best performance when integrating high-end microphones and preamplifiers into their systems. Its compatibility with most older model INN1x/INN1rx and INN2 hybrids, through a simple firmware upgrade, adds to its versatility and appeal.

This innovative product enhances any professional audio setup with additional features such as music on hold input, auxiliary phone integration, and intuitive call control, all designed to streamline audio management in recording studios or live sound environments. For larger setups, two Concierge switch cores can be bridged, expanding the system to a robust 2 hybrid, 12 line configuration.

The system's scalability is further enhanced by the ability to connect up to eight Guest Module control surfaces, which allow for remote control of the switch matrix via CAT5 cable. These control surfaces are hot swappable, ensuring that calls are not lost during exchanges, and feature color-changing line selection buttons for clear call status indication. Available in GM1x6, GM2x6, and GM1x12 configurations, these modules can be selected in both desktop and rack mount versions, boasting durable aluminum and steel construction with a sealed rubber keypad for longevity.

In its most compact form, the system comprises one Concierge switch core, one innkeeper 1rx, and one Guest Module GM1x6 control surface, providing a durable, reliable, and user-friendly solution for audio professionals seeking to enhance their telecommunication capabilities. The Concierge 2x6 Switch Core by JK Audio represents an innovative leap in professional audio equipment, offering unparalleled quality and reliability for those who require the best in audio switching solutions.

JK Audio Concierge 2x6 Features

  • 6 Phone line jacks
  • 2 Hybrid Connections
  • 2 Integrated Aux Phone Connections
  • Hold Audio Input
  • Expandable to 2 x 12 Lines
  • LED Line Status Indicators
  • Front Panel DIP switches

Product Documents

User Manual

Key Features

  • Manage calls like a pro! This audio interface switches between 2 phone lines & 6 outputs.
  • Enjoy low latency audio for seamless communication, perfect for broadcast or podcasting.
  • Crystal-clear sound quality ensures every call is crisp with this computer audio interface.
  • Built tough for daily use, this JK Audio interface offers reliable performance for years.
  • Driver support is a breeze! Easy setup gets your digital audio interface running quickly.
  • Ideal for call centers & studios, offering versatile connectivity at an unbeatable price!

What's in the box:

  • Jk Audio Concierge 2x6 Switch Core
  • Jk Audio 2 Year Limited Warranty
