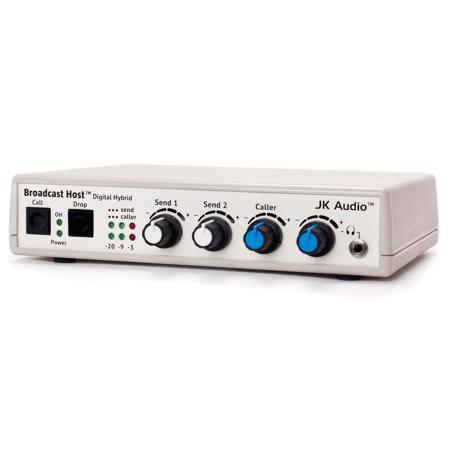

JK Audio Broadcast Host Analog Digital Hybrid Telephone, Audio Line & Mic Desktop Broadcast Station, 200Hz-3600Hz Frequency Response (Telephone Side)

SKU: JKHOST MFR: HOST
Earn VIP Reward Points

Key Features

  • Enhance your broadcast with this JK Audio hybrid, ensuring top sound quality on every call.
  • Connect to any standard phone line using the RJ11 interface for seamless audio integration.
  • Achieve clear, low-latency communication for remote interviews and broadcast applications.
  • Use the balanced XLR inputs for professional-grade microphone connections in your studio.
  • Enjoy driver stability with this computer audio interface, perfect for reliable broadcasts.
  • This broadcast host offers exceptional build quality, ensuring durability for years to come.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-12-10T01:33:09

Rated 5 out of 5

god

everyth?ng very good

AHMER M.

2020-11-13T03:15:31

Rated 2 out of 5

Low quality audio

Caller audio is noisy. If you even approach 50% on the input gain, you’ll get lots of hiss. Send audio is weak. An internal clipper is set far too low. The result is that to get adequate send audio to the caller, you must turn up the output level to the point where the clipper causes severe distortion. Multiple calls to mfr support were useless. Very poor support.

Josephb

2020-07-02T11:55:46

Rated 4 out of 5

Very good product

N8ce product

ANDRE M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JK Audio Broadcast Host Specifications

  • Input

    Balanced Female XLR Mics: 1kOhmss/15 mV RMS; -34 dBu nom
    (Mic/Line pad switch = +6 dBu max)
    1/8" (3.5mm) Stereo Line: 20kOhmss/250 mV RMS; -10 dBu nom

  • Output

    Balanced Male XLR:
    200 Ohms / 500 mV RMS; -4 dBu nom.;
    +14 dBu max
    Caller Only
    1/8" (3.5mm) Stereo:
    50 Ohms / 250 mV RMS; +6 dBu max
    Left = Send; Right = Caller
    Headphone 1/4" Stereo:
    8 Ohms / 250 mW
    Mixed Send and Caller

  • Phone Line Connector

    RJ11C

  • Aux Phone

    RJ11C

  • Ringer

    0.8 B REN

  • Frequency Response

    Telephone Side 200 Hz-3600 Hz

  • Isolation

    1500 VAC

  • Power

    120-240 VAC Power Supply

  • Dimensions

    7.00 x 6.00 x 1.60" (17.78 x 15.24 x 4.06cm)

  • Weight

    2.20lbs (0.99kg)

  • UPC Code

    814170010109

7 Accessories for JK Audio Broadcast Host Analog Digital Hybrid Telephone, Audio Line & Mic Desktop Broadcast Station, 200Hz-3600Hz Frequency Response (Telephone Side)

  • All Accessories (7)
  • Cables & Adapters (2)
  • Headphones (5)

About JK Audio Broadcast Host

FEATURED REVIEWS

god

By AHMER M.

everyth?ng very good

What sets the JK Audio Broadcast Host Analog Desktop Digital Hybrid apart is its ability to transform your workspace into a professional-grade broadcasting hub. This high-quality, multifunctional device is designed to facilitate superior phone recordings, effortlessly integrating with your mixer or sound card. It seamlessly connects a microphone and headphones, enabling a straightforward broadcast back to your station.

Ideal for use in your newsroom, the Broadcast Host is perfect for recording top-tier interviews. Additionally, it offers the convenience of uploading your recorded interviews directly to your podcast, expanding your reach and audience engagement.

The Broadcast Host is expertly engineered to send both mic and line-level signals into the phone line, all while maintaining exceptional separation between your voice and the caller's. Its stereo output jack provides a unique dual-channel output, with your voice on one channel and the caller's voice on the other. The balanced XLR output jack is dedicated solely to the caller's voice, ensuring clear and uninterrupted audio.

The JK Audio Broadcast Host Analog Desktop Digital Hybrid is designed to connect audio signals to a standard analog telephone line, eliminating the transmit/receive crosstalk often associated with analog hybrids. Its Digital Signal Processor (DSP) consistently monitors both the phone line and audio signals to deliver superior separation.

This device employs a proprietary, dual-convergence echo canceller algorithm that achieves remarkable separation, often exceeding 50 dB, without any setup or noise burst transmission. It offers connections for a microphone, headphones, mixer, sound card, telephone, and your analog telephone line.

An auxiliary telephone is only needed to place outgoing calls, and is automatically disconnected when you press the "Call" button and reconnected when you press the "Drop" button. The Broadcast Host also features Auto-Answer/Auto Disconnect for use in IFB and monitoring applications.

Other potential applications for this durable, compact, and user-friendly device include telephone interviews, talk shows, church PA interface, and conference room full duplex applications. With the JK Audio Broadcast Host Analog Desktop Digital Hybrid, you're investing in a versatile tool that elevates your broadcasting capabilities.

JK Audio Broadcast Host Features

  • Excellent separation of caller and talent voice
  • 16 bit DSP technology
  • Proprietary auto null algorithm, 50 dB null
  • Guest Module remote control jack
  • Send & Receive LEDs
  • Auto answer/disconnect

Product Documents

User Manual

Key Features

  • Enhance your broadcast with this JK Audio hybrid, ensuring top sound quality on every call.
  • Connect to any standard phone line using the RJ11 interface for seamless audio integration.
  • Achieve clear, low-latency communication for remote interviews and broadcast applications.
  • Use the balanced XLR inputs for professional-grade microphone connections in your studio.
  • Enjoy driver stability with this computer audio interface, perfect for reliable broadcasts.
  • This broadcast host offers exceptional build quality, ensuring durability for years to come.

What's in the box:

  • Jk Audio Broadcast Host Analog Digital Hybrid Telephone & Audio Line & Microphone Desktop Broadcast Station
  • Universal Power Supply with Detachable Cord
  • 60 RJ11 Phone Cord
  • Jk Audio 2 Year Limited Warranty
