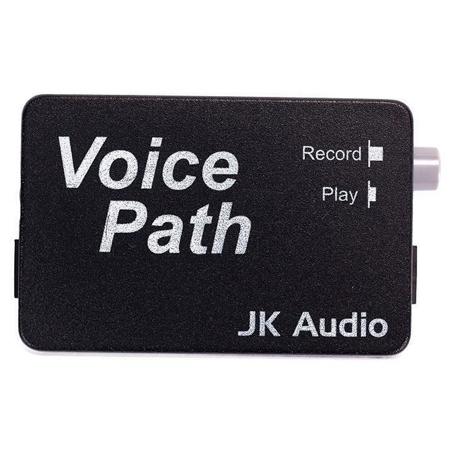

JK Audio Voice Path Telephone Handset Audio Tap for Phone Conversation Recording to Computer Sound Cards, 1/8" (3.5mm) TRS Cable Input and Output

SKU: JKVOICE MFR: VOICE
$110.00
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio for phone interviews using this telephone handset audio tap.
  • Easily record important phone conversations directly to your computer sound card.
  • Achieve high-quality recordings with low latency using the 3.5mm TRS cable input.
  • Enjoy broad handset compatibility with carbon, dynamic, and electret microphone types.
  • Ensure safety with 1500 Volts isolation from phone line, protecting your equipment.
  • Compact design integrates seamlessly, making phone conversation recording simple.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JK Audio Voice Path Specifications

  • Input

    Connector: 3.5 mm TRS cable
    Input Impedance: 10 k ohms
    Level: 250 mV RMS
    Max input: +12 dBM

  • Output

    Connector: 3.5 mm TRS cable
    Output Impedance: 2800 ohms
    Level: 100 mV RMS
    Max Output: -16 dBm

  • Isolation from phone line

    1500 Volts

  • Handset and Telephone connectors

    Modular 4pin/4wire handset jacks

  • Handset Compatibility

    Most Carbon, Dynamic and Electret Handset Microphone Types

  • Dimensions

    3.00 x 1.00 x 2.00" (7.62 x 2.54 x 5.08cm)

  • Weight

    9oz (255.14g)

  • UPC Code

    814170010369

About JK Audio Voice Path

Are you seeking a compact, durable, and high-quality solution for recording phone conversations to your computer's sound card Look no further than the JK Audio Voice Path Telephone Handset Audio Tap. This innovative device is expertly designed to route audio from any telephone directly into your PC or Mac sound card, providing a seamless and user-friendly experience.

Simply connect the Voice Path between the handset and base of your telephone, and let the attached cables link directly to the in and out jacks of your sound card. This allows you to use your PC software to record, edit, and play your conversation right back into the phone line, offering endless possibilities for newsrooms, weather and traffic reports, ad creation and proofing, transcribing, voice mail prompts, and production rooms.

The Voice Path continuously routes both sides of your conversation to the mic input of your sound card. When you're ready to play audio recordings back into the phone line, just press the gray button. With the button engaged, the Voice Path disconnects the microphone from your handset and sends audio down the phone line and into your receiver. You'll hear the transmit audio as well as the voice from the other end of the call.

To ensure compatibility with a variety of handsets, the Voice Path features a switch on the back that allows you to select between the three basic types of handset microphones: electret, dynamic, and carbon. The signal level to the PC sound card is also adjustable for optimal recording quality. Please note, this device is not compatible with telephones that have a keypad in the handset.

Choose the JK Audio Voice Path Telephone Handset Audio Tap for a reliable, high-quality solution to recording phone conversations to your computer sound card.

JK Audio Voice Path Features

  • Analog and digital phone systems
  • Single or multi-line phones
  • No Batteries or AC needed
  • Simple operation, great sound!
  • HD Voice Compatible

Product Documents

User Manual

Key Features

  • Capture crystal-clear audio for phone interviews using this telephone handset audio tap.
  • Easily record important phone conversations directly to your computer sound card.
  • Achieve high-quality recordings with low latency using the 3.5mm TRS cable input.
  • Enjoy broad handset compatibility with carbon, dynamic, and electret microphone types.
  • Ensure safety with 1500 Volts isolation from phone line, protecting your equipment.
  • Compact design integrates seamlessly, making phone conversation recording simple.

What's in the box:

  • JK Audio Voice Path Telephone Handset Audio Tap
  • JK Audio 2 Year Warranty
