JLCooper GangWay32 32-Port RS-422 Gang Roll Switcher and GPI Trigger Box

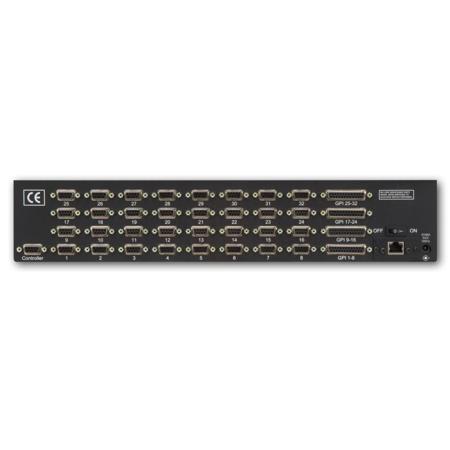

The boss of all gang roll switchers! GangWay32 is a massive 32 port RS-422 Gang Roll Switcher and GPI Trigger Box. Like the smaller GangWay 16, this monster is an easy-to-use, RS-422 Gang Roll Switcher and GPI Trigger Box. The front panel includes lighted buttons for clear indication as to the status of each machine, a gang roll button to quickly enable all machines, 3 User Preset Groups and a Tally Select button. A front mounted RS-422 port provides a convenient connection for a jog/ shuttle remote or other device. It has 32 RS-422 ports on the rear panel and a rear mounted RS-422 input. The rear panel also includes 2 - 25 pin D-Sub connectors for GPI I/O, a power switch and an additional interface slot.

An optional compact interface card can act as a Master Input, connecting the GangWay32 to 10/100 Ethernet, USB, RS-232 or RS-422. This can be used to remotely change the switching configuration of the GangWay itself or as the source of commands for controlling connected VTRs, DDRs or Servers. You can communicate with GangWay16 over LAN or over the internet, for remote control and switching. It's ideal for remote truck or studio applications. A new feature allows ES-SloMo and SloMo Mini to directly interface with GangWay32 to provide for control up to 16 RS-422 machines.
