Joe Meek meQ 500 Meequalizer 4-Band EQ Module

500 Series EQ with Four Bands, Shelving Switches On Both Hi and Low Bands and "Q" Controls On Both Mid Bands
The Joemeek meQ 500 Series EQ gives you the sought-after sound of the famed Meequalizer, with improved control. You get four bands with boost/cut controls for each, shelving switches on both high and low bands and "Q" controls on both mid bands. With electronically balanced outputs and audiophile-grade Burr Brown amplifiers used throughout the signal path, the meQ 500 is an ideal tool for subtly or radically shaping your tracks with that special Joemeek magic. Put a genuine Meequalizer in your 500 Series rack the Joemeek meQ.

• Four EQ bands that cover the entire audio spectrum
• Choice of shelving or bell curves on low and hi bands gives you a plethora of sonic options
• "Q" controls on both mid bands let you precisely sculpt your midrange
• Generous overlaps in coverage between bands gives you access to all frequencies of interest
• Audiophile-grade Burr Brown amplifiers used throughout the signal path
• Electronically balanced outputs

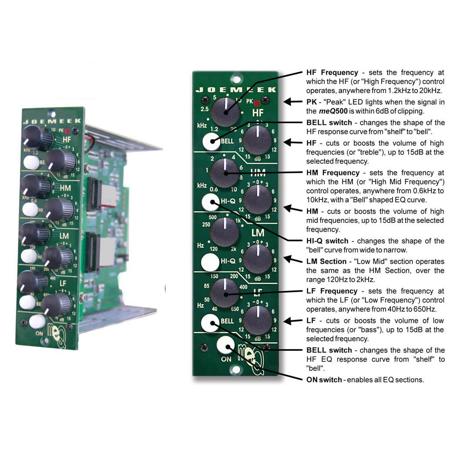

HF Frequency
Sets the frequency at which the HF (or "High Frequency") control operates, anywhere from 1.2kHz to 20kHz.

PK
"Peak" LED lights when the signal in the mech500 is within 6dB of clipping.

BELL Switch
changes the shape of the HF responsecurve from "shelf"to"bell".

HF
Cuts or boosts the volume of high frequencies (or "treble"), up to 150B at the selected frequency.

HM Frequency
Sets the frequency at which the HM (or "High Mid Frequency") control operates, anywhere from 0.6kHz to 10kHz, with a "Bell" shaped EQ curve.

HM
Cuts or boosts the volume of high midfrequencies, up to 15dB at the selected frequency.

Hi-Q Switch
changes the shape of the "bell" curve from wide to narrow.

LM Section
"Low Mid" section operates the same as the HM Section, over the range 120Hz to 2kHz.

LF Frequency
Sets the frequency at which the LF (or "Low Frequency") control operates, anywhere from 40Hz to 650Hz.

LF
Cuts or boosts the volume of low frequencies (or "bass"), up to 15 dB at the selected frequency.

ON switch
Enables all EQ sections.
