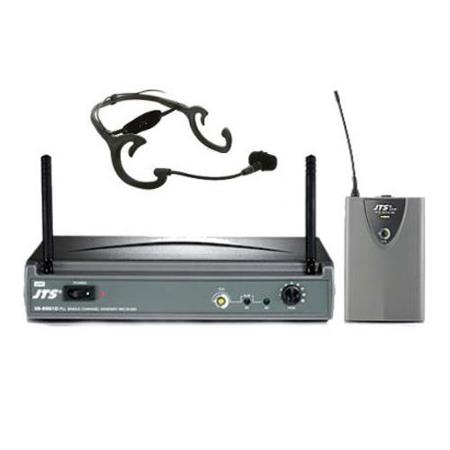

JTS US-8001D Diversity UHF PLL Single Channel Receiver with PT-850B Body-Pack Pocket Transmitter and CX-504 Lavalier Headset Microphone

SKU: JTS8DPTCX504 MFR: US-8001D/PT-850B+CX-504
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for vocal performances.
  • Enjoy freedom of movement with the PT-850B body-pack transmitter's reliable wireless range.
  • The CX-504 lavalier headset microphone ensures comfortable, hands-free use during presentations.
  • Achieve professional sound quality with the diversity UHF PLL single channel receiver (US-8001D).
  • This wireless microphone system's durable build guarantees long-lasting performance for any event.
  • Simple to use, this microphone system offers plug-and-play functionality for quick setup and use.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JTS US-8001D/PT-850B+CX-504 Specifications

Diversity UHF PLL Single Channel Receive

Diversity UHF PLL Single Channel Receive

Jump to...
  • Frequency Preparation

    PLL Synthesized Control

  • Carrier Frequency Range

    502-960 MHz

  • 3x Frequency range

    856.1 - 864.9 MHz (F band)
    606.5 - 629.9 MHz (U band)
    721.5 - 748.375 MHz (G band)
    658.125 - 678.5 MHz (D band)
    487.125 - 506.5 MHz (I band)
    502 - 694 MHz (T band)

  • S/N Ratio

    > 105dB

  • T.H.D

    <0.6%@1KHz

  • Display

    LED

  • Display Contents

    Antenna A/B, RF/AF Status

  • Controls

    Power On/Off, Channel Selecting, Audio Level

  • Audio Output Level

    -12dB

  • AF Output Impedance

    600 Ohm

  • Squelch

    Pilot Tone, Noise and Mute

  • Operation Voltage

    12-18 VDC, 150mA

  • Output Connector

    Balanced XLR socket
    Unbalanced 6.3mm phone jack

  • Dimension (W x H x D)

    8.26 x 1.57 x 6.73" (210 x 40 x 171mm)

Body-Pack Pocket Transmitter

Jump to...
  • Frequency Preparation

    PLL Synthesized Control

  • Carrier Frequency Range

    502-960 MHz

  • 3x Frequency range

    856.1 - 864.9 MHz (F band)
    606.5 - 629.9 MHz (U band)
    721.5 - 748.375 MHz (G band)
    658.125 - 678.5 MHz (D band)
    487.125 - 506.5 MHz (I band)
    502.000 - 694 MHz (T band)

  • RF Outputs

    10mW

  • Stability

    +/-10KHz

  • Frequency Deviation

    +/-48KHz

  • LCD Display

    Power On / Off, Low battery

  • Controls

    Power On / Off, Channel Up / Down

  • Output connector

    4P mini XLR

  • Spurious Emissions

    <-60 dBC

  • Audio Frequency Response

    50-16,000Hz

  • Battery

    UM3, AA 1.5V2

Lavalier Headset Microphone

Jump to...
  • Connector

    4P Mini XLR

  • Frequency Response

    30-18,000Hz

  • Polar Pattern

    Cardioid

  • Sensitivity (at 1KHz)

    -68 +/-3 dB (0.4mV) 0dB=1V/microbar

  • Impedance

    680 Ohm

  • Max. SPL for 1% THD

    130dB

  • Dimension (W x H x D)

    11.22 x 2.16 x 4.38" (285 x 55 x 111.3mm)

  • Weight

    1.98 oz (56.3g)

  • UPC Code

    4712832611083

About JTS US-8001D/PT-850B+CX-504

How does the US-8001D Diversity UHF PLL Single Channel Receiver with PT-850B Body-Pack Pocket Transmitter and CX-504 Lavalier Headset Microphone stand out This advanced audio equipment set is designed for superior sound transmission and reception, making it an ideal choice for various applications such as aerobics/fitness classes, school presentations, corporate events, stage performances, and wireless video production when used with the KA-10R.

The US-8001D Diversity UHF PLL Single Channel Receiver is a compact, half-rack space design unit that boasts 16 preset selectable UHF channels. It employs diversity technology to prevent RF link dropouts and PLL synthesized technology for a stable, high-quality audio signal. The receiver is equipped with both XLR balanced and 6.3mm unbalanced outputs, and its tuned antennas maximize the effective range of the wireless link. It also features noise mute and pilot tone squelch for clear, uninterrupted sound.

The PT-850B Body-Pack Pocket Transmitter is a compact, heavy-duty plastic housing unit that offers 16 selectable channels. It uses a PLL synthesized oscillator type for reliable signal transmission and is powered by 2 AA batteries. The transmitter is equipped with a 4P Mini XLR connector and features an LED display for easy operation. The PT-850Bmi variant provides a wireless solution for most musical instruments, enhancing your audio experience.

The CX-504 Lavalier Headset Microphone completes the set with its uni-directional design for high-quality voice pick-up. It offers excellent gain-before-feedback and noise isolation, ensuring clear, crisp sound. The lightweight and ergonomic design of the headset allows for great freedom, mobility, and comfortable wearing, making it a perfect companion for any performance or presentation.

In summary, the US-8001D Diversity UHF PLL Single Channel Receiver with PT-850B Body-Pack Pocket Transmitter and CX-504 Lavalier Headset Microphone is a comprehensive audio solution that offers high-quality sound, versatility, and convenience.

JTS US-8001D/PT-850B+CX-504 Features

  • Advanced audio equipment set with UHF PLL Single Channel Receiver, Body-Pack Pocket Transmitter, and Lavalier Headset Microphone
  • US-8001D Receiver features 16 preset selectable UHF channels, diversity technology, and PLL synthesized technology for stable, high-quality sound
  • PT-850B Transmitter offers 16 selectable channels, PLL synthesized oscillator type, and is equipped with a 4P Mini XLR connector for reliable signal transmission
  • CX-504 Lavalier Headset Microphone provides uni-directional design for high-quality voice pick-up and excellent noise isolation
  • Ideal for aerobics/fitness classes, school presentations, corporate events, stage performances, and wireless video production
  • Lightweight and ergonomic design for great freedom, mobility, and comfortable wearing

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for vocal performances.
  • Enjoy freedom of movement with the PT-850B body-pack transmitter's reliable wireless range.
  • The CX-504 lavalier headset microphone ensures comfortable, hands-free use during presentations.
  • Achieve professional sound quality with the diversity UHF PLL single channel receiver (US-8001D).
  • This wireless microphone system's durable build guarantees long-lasting performance for any event.
  • Simple to use, this microphone system offers plug-and-play functionality for quick setup and use.

What's in the box:

  • Diversity UHF PLL Single Channel Receiver (US-8001D)
  • Body-Pack Pocket Transmitter (PT-850B)
  • Lavalier Headset Microphone (CX-504)
  • JTS 1 Year Limited Warranty
