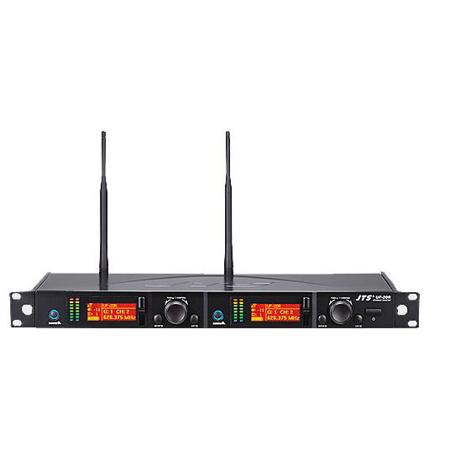

JTS UF-20R UHF PLL Dual-Channel Wideband True Diversity Wireless Receiver, 470-960MHz
SKU: JTSUF20R MFR: UF-20R
$1,275.75
$1,594.95
Save: $319.2 (20%)OR
Key Features
- Experience superior audio clarity with this UHF wireless receiver for professional sound.
- Enjoy wideband true diversity ensuring stable signal & fewer dropouts for reliable performance.
- This dual-channel receiver operates from 470-960 MHz, offering flexible frequency options.
- Use the patented REMOSET to easily set up interference-free wireless microphone channels.
- Ideal for live performances, presentations, & events needing reliable wireless connectivity.
- Monitor transmitter battery, RF levels, & more on the clear LCD of this wireless system.
Special Order?Estimated to Ship: 08/11/2025
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$139.99
3 Year
$184.99
5 Year
$339.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About JTS UF-20R
The wideband multifrequency system UF-20... from JTS is the perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.
2-channel true diversity UHF PLL wideband receiver
• Bandwidth: 75 MHz
• 15 groups, each with 63 compatible preset channels
• 64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
• RF output and mains voltage output for easily cascading up to 10 x UF-20R/5 receiver without additional splitter
• REMOSET technology for receiver/transmitter synchronisation
• Auto-scan function
• Pilot tone and noise squelch
• Equalizer function
• LED for indicating RF level and AF level
• Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
• Metal housing
• Power supply for optional antenna booster UB-900I directly via antenna inputs
JTS UF-20R Features
- UHF True diversity technology renders 200-480 meters of operation distance
- Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
- Preset 15 groups each of up to 63 compatible channels
- User programmable 6 groups each of 64 channels
- Free space scan function
- JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
- JTS LCX circuit design technology minimizes Companding noise
- The is now not only sends the frequency data but also transmitter's RF power, sensitivity, low cut, key lock and user's name
- RF "NO SIGNAL" alert function
- AF "MUTE" alert function
- Transmitter "LOW BATTERY" alert function
- Built in equalizer
- Power / Antenna cascading output provided
