21% Off

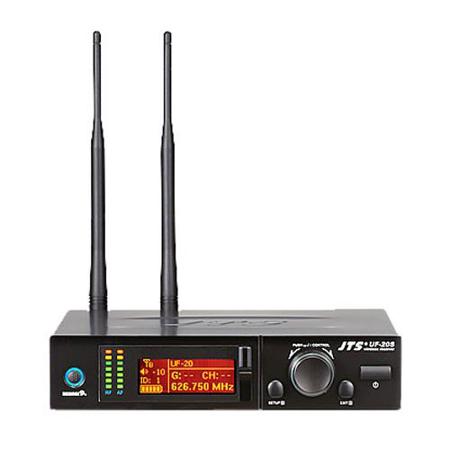

JTS UF-20S UHF PLL Single-Channel Wideband True Diversity Wireless Receiver, 470-960MHz

SKU: JTSUF20S MFR: UF-20S
Earn VIP Reward Points

Key Features

  • Experience true diversity with this wireless receiver, ensuring stable audio signal.
  • Enjoy wideband UHF (470-960 MHz) for clear, interference-free wireless microphone use.
  • PLL synthesized control offers precise frequency, enhancing wireless audio quality.
  • Utilize REMOSET for quick, obstacle-free RF setup, streamlining wireless workflows.
  • Monitor crucial data on the LCD, including battery and signal strength for your microphone.
  • Achieve pro-level sound with a >108dB S/N ratio in this robust wireless system.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JTS UF-20S Specifications

  • Frequency Preparation

    PLL Synthesized Control

  • Frequency Setting

    JTS patented obstacles-free RF REMOSET

  • Carrier Frequency Range

    UHF 470 - 960 MHz

  • Channel

    Single

  • Bandwidth

    60 - 75MHz Wideband

  • S / N Ratio

    > 108dB (A)

  • T.H.D

    <0.5% @ 1KHz

  • Chassis

    1U/2U standard metal chassis

  • Preset Channels / Group

    From group 1 - 15 up to 63 interference-free compatible channels
    844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth
    User programmable from U1 - U6 each of 64 channels reserved

  • Display

    LCD

  • Display Contents

    Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch

  • Sensitivity

    6dBmicro V, at S / N> 80dB

  • Receiving Mode

    True diversity

  • Receiving Mode

    True diversity

  • Audio Output Level

    Maximum 6dBu

  • Audio Output Level

    Maximum 6dBu

  • AF Output Impedance

    600 Ohm

  • Frequency Response

    50Hz - 18kHz, with high-pass filter

  • Squelch

    Pilot Tone & Noise Mute

  • Power Supply

    100 - 240V or 12V DC

  • Output Connector

    1 XLR Balanced Socket
    1 6.3mm Unbalanced phone jack

  • Dimensions (W x H x D)

    8.3 x 1.7 x 8.4" (212 x 44 x 213.9mm)

  • UPC Code

    4712933610046

About JTS UF-20S

You can elevate your stage performances with the UF-20S UHF PLL Single-Channel Wideband True Diversity Wireless Receiver. This high-quality, durable device is designed to meet the most demanding requirements, offering exceptional flexibility and reliability.

The UF-20S is a compact, portable solution that boasts a wide frequency range of 470-960 MHz, ensuring optimal performance in various applications. Its true diversity system, utilizing two separate antennas, significantly reduces the risk of signal interference, enhancing the overall reliability of your wireless setup.

This multifunctional receiver is equipped with REMOSET technology for seamless receiver/transmitter synchronization, making setup a breeze. With a bandwidth of 75 MHz, it offers 3,000 selectable frequencies, allowing you to customize your sound to perfection.

The UF-20S features 15 groups, each with up to 63 compatible preset channels, and an additional 64 channels in 6 groups from the selectable frequencies can be stored in user presets. This gives you an abundance of options to find the perfect frequency for your performance.

The device also includes an auto-scan function, pilot tone and noise squelch, and an equalizer function for fine-tuning your sound. The backlit display provides clear visibility of the transmitter's battery status, frequency setup, and active antenna, ensuring you're always in control of your performance.

The UF-20S is housed in a robust metal casing, ensuring it can withstand the rigors of regular use. Plus, it provides power supply for an optional antenna booster UB-900I directly via antenna inputs, offering even more versatility.

Experience the second generation REMOSET with enhanced features like Frequency Data, RF Power, Sensitivity, Low Cut, Key Lock, and User's Name. With the UF-20S UHF PLL Single-Channel Wideband True Diversity Wireless Receiver, you're investing in a device that delivers professional-grade performance and unparalleled reliability.

JTS UF-20S Features

  • UHF True diversity technology renders 200-480 meters of operation distance
  • Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
  • Preset 15 groups each of up to 63 compatible channels
  • User programmable 6 groups each of 64 channels
  • Free space scan function
  • JTS Patented obstacle-free RF
  • function synchronizes a transmitter by pushing a button
  • JTS LCX circuit design technology minimizes companding noise
  • The is now not only sends the
  • frequency data but also transmitter's RF power, sensitivity, low cut, key lock and user's name
  • RF "NO SIGNAL" alert function
  • AF "MUTE" alert function
  • Transmitter "LOW BATTERY" alert function
  • Built in equalizer

Product Documents

User Manual

Key Features

  • Experience true diversity with this wireless receiver, ensuring stable audio signal.
  • Enjoy wideband UHF (470-960 MHz) for clear, interference-free wireless microphone use.
  • PLL synthesized control offers precise frequency, enhancing wireless audio quality.
  • Utilize REMOSET for quick, obstacle-free RF setup, streamlining wireless workflows.
  • Monitor crucial data on the LCD, including battery and signal strength for your microphone.
  • Achieve pro-level sound with a >108dB S/N ratio in this robust wireless system.

What's in the box:

  • UF-20S UHF PLL Single-Channel Wideband True Diversity Wireless Receiver
  • JTS 1 Year Limited Warranty
