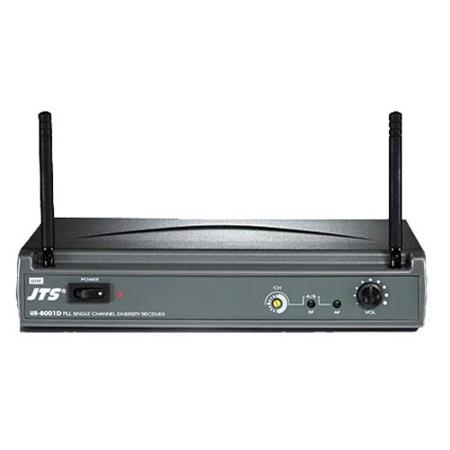

JTS US-8001D UHF PLL Single-Channel Diversity Receiver, 502-960MHz
See all JTS items
21% Off

JTS US-8001D UHF PLL Single-Channel Diversity Receiver, 502-960MHz

SKU: JTSUS8001D MFR: US-8001D
Be the first to review this itemAsk a Question
$199.00
$251.00
Save: $52 (21%)
OR
$34/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience clear audio with this UHF PLL single-channel diversity receiver.
  • Enjoy a wide 502-960 MHz carrier frequency range for reliable wireless audio.
  • LED display shows antenna and RF/AF status for easy monitoring of receiver.
  • Balanced XLR and unbalanced phone jack outputs offer versatile connectivity.
  • PLL synthesized control ensures stable frequency for seamless audio quality.
  • Compact design (8.2 x 1.5 x 6.7") fits easily into any audio setup for receiver.
See More Product Details
Special Order?Estimated to Ship: 10/18/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$15.99
2-Year Adorama Protect$23.99
3-Year Adorama Protect$35.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JTS US-8001D Specifications

  • Frequency Preparation

    PLL Synthesized Control

  • Carrier Frequency Range

    502 - 960 MHz

  • 3x Frequency range

    856.1 - 864.9 MHz (F band)
    606.5 - 629.9 MHz (U band)
    721.5 - 748.375 MHz (G band)
    658.125 - 678.5 MHz (D band)
    487.125 - 506.5 HHz (I band)
    502 - 694 MHz (T band)

  • S/N Ratio

    > 105dB

  • T.H.D

    <0.6%@1KHz

  • Display

    LED

  • Display Contents

    Antenna A/B, RF/AF Status

  • Controls

    Power On/Off, Channel Selecting, Audio Level

  • Audio Output Level

    -12dB

  • AF Output Impedance

    600 Ohm

  • Squelch

    Pilot Tone, Noise and Mute

  • Operation Voltage

    12-18 VDC, 150mA

  • Output Connector

    1 Balanced XLR socket (2 for US-8002DB/US-8002D)
    1 Unbalanced 6.3mm phone jack

  • Dimensions (W x H x D)

    8.2 x 1.5 x 6.7" (210 x 40 x 171mm)

  • UPC Code

    4712832610918

About JTS US-8001D

Diversity UHF PLL receiver Features
• 16 channels
• Parallel operation of up to 4 intermodulation-free frequencies
• Pilot tone squelch and fixed noise squelch
• LEDs for indicating diversity status and AF level
• 482 mm (19") unit holder DR-900SET for 1 RS rack installation of 2 x US-8001D/1 is available at option

JTS US-8001D Features

  • Preset 16 selectable UHF channels
  • Single transmitter operation
  • Diversity technology prevents dropouts in the RF link
  • PLL synthesized technology
  • Noise mute and pilot tone squelch
  • Equipped with both XLR balanced and 63mm unbalanced outputs
  • Tuned antennas maximize the effective range of the wireless link
  • Compact half rack space design

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience clear audio with this UHF PLL single-channel diversity receiver.
  • Enjoy a wide 502-960 MHz carrier frequency range for reliable wireless audio.
  • LED display shows antenna and RF/AF status for easy monitoring of receiver.
  • Balanced XLR and unbalanced phone jack outputs offer versatile connectivity.
  • PLL synthesized control ensures stable frequency for seamless audio quality.
  • Compact design (8.2 x 1.5 x 6.7") fits easily into any audio setup for receiver.

What's in the box:

  • US-8001D UHF PLL Single-Channel Diversity Receiver
  • JTS 1 Year Limited Warranty
