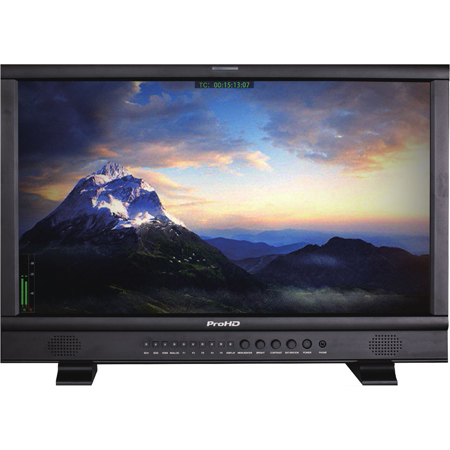

JVC DT-N24H 23.8" Full HD Broadcast Studio LED Monitor, 1920x1080
See all JVC items

JVC DT-N24H 23.8" Full HD Broadcast Studio LED Monitor, 1920x1080, Gold Mount Battery Plate

SKU: JVDTN24H

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JVC DT-N24H Specifications

  • LCD Display Size

    23.8" wide format

  • Display area

    527mm x 296mm

  • Resolution

    1920 x 1080 (Full HD)

  • Color depth

    16.77 million

  • Aspect ratio

    16:9

  • Brightness

    300cd/m2

  • Contrast

    1000:1

  • Viewing Angle

    178 deg. (H) / 178 deg. (V)

  • Surface treatment

    Non-glass

  • Backlighting

    LED

  • Working voltage

    DC / battery 11V-17V

  • Power consumption

    Max 36W

  • Working temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Working humidity

    10% to 90%

  • Storage temperature

    -15 to 60 deg. C / 5 to 140 deg. F

  • Storage humidity

    10% to 90%

  • VESA standard

    100 x 100mm / 3.94 x 3.94" (M4x4mm screw)

  • Compatible video formats

    CVBS: NTSC / PAL
    Y/Pb/Pr: 480i, 480p, 576i, 576p, 720p (50 / 60), 1080i (50 / 60)
    HDMI: 480i / 576i / 480p / 576p
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-2048-2: 2048x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
    2048x1080i 50 / 59.94 / 60
    SMPTE-425M: 1080p (60 / 59.94 / 50)

  • Compatible video formats (cont.)

    SDI SMPTE-274M: 1080i (60 / 59.94 / 50)
    1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M: 720p (60 / 59.94 / 50)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)
    VGA: 640x480, 800x600, 1024x768, 1152x864, 1280x768,
    1280x960, 1280x1024, 1600x1200

  • Dimensions

    576 x 387 x 87mm / 22.68 x 15.24 x 3.43"

  • Weight

    7.2kg / 15.87lbs (Without stand)

  • UPC Code

    6948193503479

4 Accessories for JVC DT-N24H 23.8" Full HD Broadcast Studio LED Monitor, 1920x1080, Gold Mount Battery Plate

  • All Accessories (4)
  • Batteries & Power Supply (2)
  • Cables & Adapters (2)
Anton Bauer Performance DUAL Charger, 2 Position Simultaneous Fast Charging
Anton Bauer Performance DUAL Charger, 2 Position Simultaneous Fast Charging
$1,183.70
Anton Bauer Performance QUAD Charger, 4 Position Simultaneous Fast Charging
Anton Bauer Performance QUAD Charger, 4 Position Simultaneous Fast Charging
$1,388.10
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
$11.99
Shape 10" Coil SDI Cable with Right Angle BNC 90 Deg. Connectors
Shape 10" Coil SDI Cable with Right Angle BNC 90 Deg. Connectors
$29.92

About JVC DT-N24H

Supports 3G/HD/SD-SDI and 2K-SDI
DT-N24H supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display.

• SDI Timecode (LTC, VITC1&2) and AFD info display
• R/G/B/Mono, False color, Zebra stripes display
• Peaking focus assist display mode
• H/V delay, freeze frame display mode
• Safety area selection: 80%, 85%, 90%, 93%, 95%
• Scale marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• Native scan, over scan and normal scan selection
• GPI control via RS485 port connection
• 3 User setting data storage
• TALLY light with adjustable brightness
• 4 User definable function keys
• Easy One-key Menu operation
• Built-in speaker (2.5W, 8)
• AntonBauer battery plate for field application (V-mount plate in an option)

Full HD LCD panel with LED backlighting
The monitor features a 1920x1080 pixel full HD resolution LCD panel with LED backlighting, with 178 deg. wide viewing angle (H & V), 1000:1 contrast and 16.7M color depth.

ITU-709 color space
The DT-N24H is compatible with ITU-709 standard color space for HDTV broadcasting.

Selectable gamma preset
The DT-N24H supports gamma preset selection from: 2.2, 2.4 and 2.6.

Audio meters display
The DT-N24H supports SDI/HDMI embedded audio 2-ch meters display and analog audio 2-ch meters display.

TSL UMD control and display
The DT-N24H monitor supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.

USB firmware upgradable
The Monitor offers a USB port on the rear side, for firmware upgrade. Users can download firmware to a USB disk and the upgrade operation is directly on the monitor, without PC or other adaptors.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • JVC DT-N24H 23.8 " Full HD Broadcast Studio LED Monitor
  • Desktop Stand
  • AC-DC Power Adaptor (Bundled on Rear Panel)
  • Gold Mount Plate (Pre-Installed)
  • JVC Warranty
