Review Summary
HDTV/SDTV Format Compatibility:
• These monitors are compatible with all major DTV formats (480i, 576i, 480p, 576p, 1080i, & 720p), & also accept signals in 1080/24psF cinema mode, making them ideal for TV producers, broadcasters, & video professionals processing movie stock captured at 24 frames-p.s. Offering support of 720/50p & 576/50p, they can be readily integrated into PAL based environments.
Big-Screen Display in Rugged, Compact Cabinet:

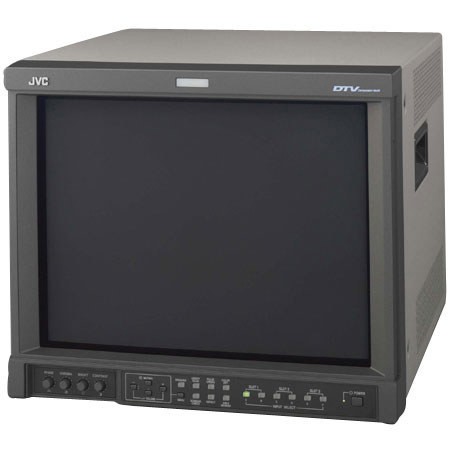

• JVC's stylish DT-V1910CG comes in a tough metal cabinet. The monitor features a 16:9 aspect 19" display, with an effective viewing area which is 40% larger than a conventional 17" monitor. Likewise, the DT-V1710CG offers a 16:9 aspect 17" display while maintaining the same dimensions as a conventional 15" monitor
Natural Flat-Screen CRT:
• These high-performance monitors deliver high resolution 900 TV lines of horizontal resolution for DT-V1910CG & 800 TV lines of horizontal resolution for DT-V1710CG on a Natural Flat-screen CRT (Aperture Grille & 3 Electron Guns) with both high contrast & high brightness. That translates into accurately rendered high-definition images which reveal the smallest detail with astonishing clarity. In turn, this also means reduced eyestrain when viewing the display closely for long periods, such as when performing specialist editing tasks.
High-Voltage Separation Circuit:
• To achieve professional-level image stability on screen, the monitor employs a high-voltage/deflection sep aration circuit.
White Balance Stability:
• The natural flat-screen CRT employs an IK feedback system which provides exceptional color stability over a long period of time.
Front Panel Controls featuring Advanced Ergonomics:
• The front panel controls are ergonomically designed & rotate smoothly. They allow fast & simple adjustment of key image parameters such as Brightness, Phase, Chroma & Contrast.
Extended Multi-Standard Compatibility with Optional Input Cards (Plug & Play):
• Besides the signals of all major digital formats, these monitors will automatically detect & accept an incoming NTSC or PAL signal. Users can customize the monitor by inserting optional input cards into the 3 input slots provided. There are 9 input cards available which together cover virtually every possible input combination including HD-SDI, SDI, Component/RGB & Video. Each card is automatically recognized when inserted into an input slot.
Wide Selection of Control Functions:
• Underscan, Aspect Ratio, Color Off, Switchable Area Marker are just some of the control functions which lend this DTV monitor for use in professional TV production.
Plus:
• UL & CE Regulatory Approval, Rush-Current Delay, Variable Aspect Ratio & Area & Safety Markings, Remote Control Capabilities, Selectable (Gr/Rd) Color of Tally Lamp, HD/SD Compatible Interface, AES/EBU Digital Audio Output, Audio Level Indication on Screen, Power Cord Holder for Preventing Accidental Disconnection.
