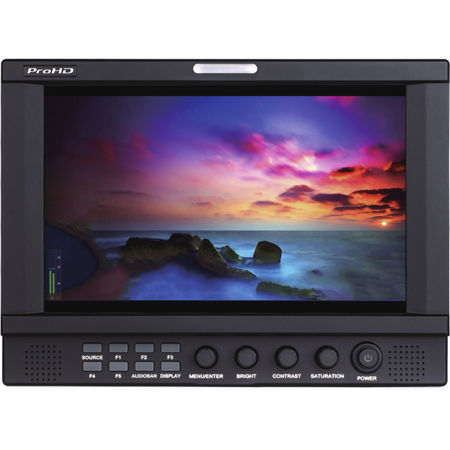

JVC DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor, 1920x1200
See all JVC items

JVC DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor, 1920x1200

SKU: JVDTX93H

This item is no longer available.

Recommended Alternatives

JVC DT-X71HI: Picture 1 regular
JVC DT-X71HI 7" On-Camera Field Monitor, 1024x600 Resolution, 400nit Brightness
$1,280.00$499.00
JVC ProHD 7" AC/DC: Picture 1 regular
JVC DT-X71HP ProHD 7" AC/DC Portable HD & C2K LCD Monitor
$1,280.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor?

The DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor boasts a high resolution of 1920 x 1200 pixels.

What types of inputs does the DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor support?

The monitor supports a wide range of inputs, including 2K/3G/HD/SD-SDI, HDMI, and CVBS.

What special features does the DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor offer?

The monitor comes with an embedded audio meters display, peaking focus assist, various scale markers, and a GPI control interface.

What are the power options for the DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor?

The monitor can be powered via a 4-pin XLR 6.5-24V DC input or V-mount / Gold mounts.

What is the viewing angle of the DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor?

The DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor offers a wide H/V 170-degree viewing angle.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JVC DT-X93H Specifications

  • Signal System

    NTSC/PAL

  • Monitor Type

    IPS, LCD

  • Screen Size

    9.0" (23cm)

  • Resolution

    1920 x 1200

  • Colors

    8-bit

  • Viewing Angle (H/V)

    170 Degree /170 Degree

  • Brightness

    450 cd/sq. m

  • Contrast Ratio

    1000:1

  • Inputs

    2x BNC: 2K/3G/HD/SD-SDI input
    1x BNC: CVBS input
    1x HDMI-A: HDMI input
    1x RJ45: UMD, GPI input
    1x 3.5 mm: Analog audio input

  • Output

    2x BNC: 2K/3G/HD/SD-SDI loop output
    1x BNC: CVBS
    1x HDMI-A: HDMI loop output
    1x 3.5m: SDI/HDMI/analog audio output

  • Video Format

    SDI: SMPTE-ST 2048-1: 2011: 2048 x 1080p (23.98/24/25/29.97/30/50/59.94/60)
    SMPTE-425M-A/B: 1080p (60/59.94/50)
    SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)

    SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
    SMPTE-296M: 720p (60/59.94/50)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)

  • Video Format (Contd.)

    HDMI:
    480i/576i/480p/576p
    1080i (60/59.94/50)
    720p (60/59.94/50)
    1080p (60/5 9.94/50/30/29.97/25/24/23.98)
    1080psf (30/29.97/25/24/23.98)

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    5 to 140 Degree F (-15 to 60 Degree C)

  • Humidity

    10 to 90%

  • Power Requirements

    6.5 to 24 VDC

  • Power Consumption

    18 W

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

  • Battery Type

    Non universal

  • Dimensions

    9.4 x 7.1 x 1.9" (24 x 18 x 5cm)

  • Weight

    33.8 oz (960g)

About JVC DT-X93H

Find exceptional clarity and precision with the DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor. This advanced 9-inch LCD monitor boasts a high resolution of 1920 x 1200, offering crystal-clear images for your viewing pleasure. With a wide H/V 170-degree viewing angle, you can enjoy consistent, high-quality visuals from any perspective.

Designed to support a broad range of inputs, including 2K/3G/HD/SD-SDI, HDMI, and CVBS, this monitor is a versatile addition to any professional HD video production setup. The embedded audio meters display ensures accurate sound monitoring, while the peaking focus assist feature aids in achieving sharp, well-defined images.

The DT-X93H ProHD 9" Full HD 3GSDI and HDMI IPS LCD Monitor also offers various scale markers for precise measurements and a GPI control interface for seamless operation. Powering the monitor is made easy with the option of a 4-pin XLR 6.5-24V DC input or V-mount / Gold mounts. This monitor is not just a device, but a tool that enhances your video production with its superior performance and functionality.

JVC DT-X93H Features

  • 9" IPS LCD, 1920 x1200, H/V 170 Degree viewing angle
  • LCD protective glass
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 2-ch SDI/HDMI/Analog audio meters with alert
  • Peaking focus assist, Zebra stripes
  • H/V delay, Freeze Frame, AFD, Timecode
  • False color, R/G/B/Mono, 100% internal colorbar
  • Image Flip and Rotate
  • TSL 3.1/4.0 UMD
  • Front / Rear TALLY light and GPI control
  • USB firmware upgrade

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-resolution 9-inch LCD monitor with 1920 x 1200 pixel clarity
  • Wide H/V 170-degree viewing angle for consistent, high-quality visuals
  • Supports a range of inputs including 2K/3G/HD/SD-SDI, HDMI, and CVBS
  • Embedded audio meters display for accurate sound monitoring
  • Features peaking focus assist and various scale markers for precision

What's in the box:

  • DT-X93H ProHD 9 " Full HD 3GSDI and HDMI IPS LCD Monitor
  • Battery Plate
  • Articulating Arm
  • Sun Hood
  • 4-Pin XLR Power Adapter
