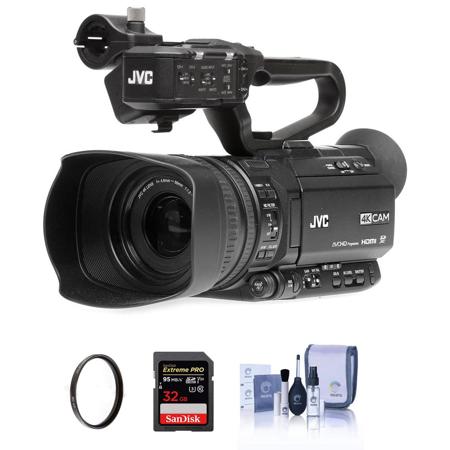

JVC GY-HM180 12.4MP 4K Ultra HD Camcorder, 12x Optical Zoom - Bundle With 32GB SDHC U3 Card, 62mm UV Filter, Cleaning Kit

SKU: JVGYHM180A

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the zoom capability of the GY-HM180 12.4MP 4K Ultra HD Camcorder?

The GY-HM180 features an integrated 12x optical zoom lens. Additionally, its Dynamic Zoom feature allows for lossless 24x zoom when shooting in HD mode.

What type of memory cards does the GY-HM180 12.4MP 4K Ultra HD Camcorder use?

The GY-HM180 uses economical SDHC or SDXC memory cards. It has dual card slots for continuous, seamless recording.

Can I view the camera's live 4K signal on a monitor?

Yes, you can connect a 4K Ultra HD monitor with a single HDMI cable to view the camera's live 4K signal.

What is included in the bundle with the GY-HM180 12.4MP 4K Ultra HD Camcorder?

The bundle includes a 32GB SDHC U3 card, a 62mm UV filter, and a cleaning kit.

Can the GY-HM180 12.4MP 4K Ultra HD Camcorder record slow-motion footage?

Yes, the GY-HM180 offers high-speed recording at up to 120fps for capturing smooth slow-motion footage.

Shopper : Why Did You Choose This?JOHN N : I liked the specs.Oscar S : Good CameraAngel A : I like this camera is my good choiceTrevor B : I need a professional camera with SDI that does not break my budget.ANTONIO R : Price and FeaturesANTONIO R : Price and features

Reviews about this item

Review Summary

2021-12-17T07:26:56

Rated 5 out of 5

Excellent

The product is very unique and outstanding

YAW M.

2021-06-14T13:25:41

Rated 4 out of 5

Great addition

Loved it. Camera worked amazing for my production. Would not film a full fledged movie, but aside from that , awesome.

BRANDON W.

2021-06-14T13:22:03

Rated 5 out of 5

Great camera

I honestly love the camera. Wasn?t overly challenging to operate, nor was it difficult to handle. The bag was bulky, but that?s the only downside I experienced.

BRANDON W.

2019-02-28T07:05:17

Rated 4 out of 5

Worth the money. Great ENG rig with SDI.

While it's the best in extreme dark it's fine at night or not best of lighting. The XLR mics jacks are great. The shot gun mic is phanominal its better than the 175 Rode mic i just bought. I curnetly use it to Live stream events like small venue music event;s and sports and weddings. The 4k has great depth of feel. The cameras batteries last a long time. You will have to have a 10 rated SD car. the only thing i would of liked is a better screen. but i am almost 50 so it competes with my Luminx G5. Zoom is great. you have no heat issues. I had the camera plugged up to ac power unit 3.5 hrs strait recording 1080i 60p no issues. Its the work horse for my live streaming company I just shot this event on with this Camera as the main unit. It was local pro wrestling in a gym bad lighting. It handled it like a camp https://vcloud.blueframetech.com/broadcast/embed/113199?fbclid=IwAR1BWtgrweLZI4gLsmhRsgAWcuJV6gxgOBPfak33phTBqFBAeLIfDXUOPM

Albert H.

2019-01-17T12:47:56

Rated 5 out of 5

What a Good Brand to have!!

I would recommend this brand to all professionals for the quality of work you can do with it. Very convenient for travelers. Good stuff!!

Jean-Pierre L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC GY-HM180 Specifications

Imaging

Imaging

Jump to...
  • Image Sensor

    1-Chip 1/2.33" CMOS Sensor

  • Sensor Resolution

    12.4 MP

  • Gain

    0 to 24 dB (Native)
    30 to 36 dB (Expanded)

  • 35mm Equivalent Focal Length

    29.6 to 355mm

  • Optical Zoom Ratio

    12x

  • Max Digital Zoom

    24x

  • Maximum Aperture

    f/1.2 to 3.5

  • Filter Size

    62 mm

  • Control Rings

    Focus
    Zoom

  • Image Stabilization

    Optical

  • Focus Control

    Autofocus
    Manual Focus

  • Shutter Speed

    1/6 to 1/10,000 sec

  • Built-In ND Filter

    Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16) ND Filters

  • Built-In Microphone Type

    Stereo

  • Recording Media

    2 x SDXC Card Slots (U3 / V30 or faster cards recommended)

Recording

Jump to...
  • Broadcast System Compatibility

    NTSC, PAL

  • Recording Modes

    H.264 4:2:2: 3840 x 2160p at 23.98/25/29.97 fps (70 to 150 Mb/s)
    H.264: 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (50 Mb/s), 1920 x 1080i at 50/59.94 fps (50 Mb/s)
    H.264: 1280 x 720p at 50/59.94 fps (35 Mb/s)
    AVCHD: 1920 x 1080p at 50/59.94 fps (28 Mb/s), 1920 x 1080i at 50/59.94 fps (24 Mb/s), 720 x 576i at 50 fps (8 Mb/s)

  • Recording Modes (Contd.)

    H.264: 960 x 540p at 23.98/25/29.97 fps, 720 x 480i at 59.94 fps, 720 x 576i at 50 fps, 480 x 270p at 23.98/25/29.97 fps
    AVCHD: 1440 x 1080i at 50/59.94 fps (9 Mb/s), 720 x 480i at 59.94 fps (8 Mb/s), 720 x 576i at 50 fps (8 Mb/s)
    H.264: 1920 x 1080p at 23.98/29.97/59.94/

  • Audio Recording

    AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio

Interfaces

Jump to...
  • Video Connectors

    1x BNC (3G-SDI) Output
    1x HDMI Output
    1x 1/8" (3.5 mm) TRRS A/V Output

  • Audio Connectors

    2x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
    1x 1/8" / 3.5 mm TRRS Headphone/Microphone Output

  • Other I/O

    1x 2.5 mm Control
    1x USB Type-A Data

Display

Jump to...
  • Display Type

    LCD

  • Screen Size

    3.5"

  • Screen Resolution

    920,000 Dots

  • EVF Display Type

    LCD

  • Screen Size

    .24"

  • EVF Resolution

    1,560,000 Dots

  • Battery Type

    JVC BN-VF823

  • Power Connectors

    1 x Barrel (12 VDC) Input

  • Power Consumption

    >=8 W

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Operating Humidity

    30 to 80%

  • Storage Humidity

    0 to 85%

  • UPC Code

    192223036130

57 Accessories for JVC GY-HM180 12.4MP 4K Ultra HD Camcorder, 12x Optical Zoom - Bundle With 32GB SDHC U3 Card, 62mm UV Filter, Cleaning Kit

  • All Accessories (57)
  • Bags & Cases (3)
  • Monitor & Recorder (1)
  • Filters (1)
  • Batteries & Power Supply (1)
  • Cables & Adapters (3)
  • Microphones (1)
  • Microphones & Audio (1)
  • Flash & Lighting (46)

About JVC GY-HM180

FEATURED REVIEWS

Excellent

By YAW M.

The product is very unique and outstanding

Great camera

By BRANDON W.

I honestly love the camera. Wasn?t overly challenging to operate, nor was it difficult to handle. The bag was bulky, but that?s the only downside I experienced.

Make your professional videography stand out with the advanced GY-HM180 12.4MP 4K Ultra HD Camcorder. This high-quality, compact camera sets a new standard in the industry with its enhanced recording features and full professional controls.

The heart of this versatile camcorder is its integrated 12x F 1.2-3.5 optical zoom lens (35mm equivalent: 29.6-355mm), delivering stunning 4K Ultra HD video recordings directly to economical SDHC/SDXC memory cards. The 1/2.3" 4K CMOS sensor with 12.4M pixels ensures high sensitivity and excellent performance across a wide range of lighting conditions, resulting in crisp and accurate details throughout the entire image plane.

The GY-HM180 also features a Dynamic Zoom for lossless 24x zoom when shooting in HD mode. This combines optical zoom and pixel mapping to create a seamless and long zoom range, all while maintaining its compact form factor. The convenient ND filter wheel with 0, 1/4th, and 1/16th positions further enhances your control over the image quality.

Recording 4K has never been easier. Simply insert an affordable SDHC or SDXC (UHS-I Speed class 3) memory card into one of the two card slots and record hours of 4K Ultra HD (3840 x 2160) material. You can connect a 4K Ultra HD monitor with a single HDMI cable to view the camera's live 4K signal, or play back recorded files directly from the camera.

The GY-HM180 records 4:2:2 signals up to 60p at 50Mbps, making it an ideal camera for production work. Files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats.

For those seeking to capture smooth slow-motion footage, the GY-HM180 offers high-speed recording at up to 120fps (1920 x 1080 resolution only). This feature can create incredible artistic effects or assist in sports analysis.

The dual SDHC/SDXC card slots make the GY-HM180 a truly versatile camcorder, offering benefits such as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is effectively no limit to the continuous shooting time in any mode, even with lower capacity cards.

In addition to the camcorder, this bundle includes a 32GB SDHC U3 card, a 62mm UV filter, and a cleaning kit to enhance your recording experience. The GY-HM180 12.4MP 4K Ultra HD Camcorder is the perfect tool for capturing high-quality video footage in any professional setting.

JVC GY-HM180 Features

  • Single 1/2.3" CMOS image sensor with 12.4 million pixels
  • High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.6-355mm)
  • Dynamic Zoom in HD mode maps pixels to create seamless and lossless 24x zoom
  • 4K Ultra HD recording (150 Mbps, 24/30p) to dual SDXC (UHS-l Speed class3) cards
  • 4K Ultra HD recording (70 Mbps, 24/30p) to SDXC/SDHC(Class 10) card
  • 4:2:2 Full HD (24-60p) recording at 50Mbps
  • 120fps HD recording
  • Live 4K UHD output via HDMI connector
  • 2 position ND filter (1/4, 1/16)
  • 3G-SDl output
  • HDMI outputs (4K output via HDMI only)
  • 3G-SDI and HDMI outputs can feed and trigger external recorder
  • 2-channel XLR audio inputs with phantom power
  • Built-in stereo microphone
  • 3.5" color LCD display (920K pixel) and 0.24" color viewfinder (1.56M pixel) with smart focus assist function
  • Histogram Display
  • Includes handle unit, BN-VF823 battery and an AC Adapter

Product Documents

User Manual

Key Features

  • High-quality 4K Ultra HD Camcorder with 12.4MP CMOS sensor for crisp and accurate video recording
  • Integrated 12x optical zoom lens and Dynamic Zoom for lossless 24x zoom in HD mode
  • Dual SDHC/SDXC card slots for continuous, seamless recording and easy file storage
  • High-speed recording at up to 120fps for smooth slow-motion footage
  • Professional controls including an ND filter wheel and 3G-SDI output for live broadcasting

What's in the box:

  • JVC GY-HM180 12.4MP 4K Ultra HD Camcorder
  • Top Handle Unit
  • BN-VF823 Battery
  • AC Adapter
  • JVC 1 Year Limited Warranty
  • Bundle With 32GB U3 Card
  • 62mm UV Filter
  • Cleaning Kit
