JVC GY-HM180U Specifications

Camera Front-End

Camera Front-End

Jump to...
  • Image Sensor

    1/2.3" CMOS

  • Number of Sensors

    1

  • Mega Pixels

    12.4MP

  • Gain in dB

    0 to 36

  • Shutter speed

    1/4 to 1/10000

  • White Balance modes

    FAW, AWA, 3200K, 5600K, Manual

  • Color Matrix adjustment

    Yes

  • Wide Dynamic Range Mode (WDR)

    Yes

  • User selected function buttons

    Yes, 13 (9 Buttons 4 Cross shaped)

  • User Customizes Menu

    Yes

Optical

Jump to...
  • Lens mount

    Internal

  • Optical Zoom x times

    12

  • Dynamic Zoom x times

    24

  • Lens F Number

    1.2 to 3.5

  • Lens ratio from / to

    4.67mm to 56.04mm

  • Lens ratio equivalent to 35mm

    29.6mm to 355mm

  • Auto Focus

    Yes

  • Special Auto Focus Features

    Area Focus, Near/Far mode / Face

  • Optical Image stabilization

    Yes

  • Filter Diameter

    62mm

  • Built-in ND Filters

    None, 1/4, 1/16

Recording Formats

Jump to...
  • Media

    SDHC/SDXC

  • Media Class

    4K/70 Mbps,HD and below Class 10
    4K/150Mbps UHS1-U3 (no UHS-2)

  • Recording slots

    2

  • Encoder

    H.264

  • File Format MOV

    Yes

  • File Format AVCHD

    Yes

  • Video Codec MPEG4 AVC/H264 4K/HD

    Yes

  • Video Codec AVCHD

    Yes

  • Recording specials

    4:2:2 HD Record (H.264,50Mbps)

  • Simultaneous recording on 2 cards

    Yes

  • Simultaneous recording in 2 modes

    Yes

  • Resolution 3840 x 2160

    Yes, 29,97p/25p/23.98p

  • Resolution 1920 x 1080

    Yes, 60p/50p/30p/25p/24p/1080i60/i50

  • Resolution 1440 x 1080

    Yes, 60i/50i

  • Resolution 1280 x720

    Yes, 60p/50/30p/25p/24p

  • Resolution 720 x 576

    Yes, 59i

  • Resolution 960 x 540

    Yes, 30p/25p/24p

  • Resolution 480 x 270

    Yes, 30p/25p/24p

  • High Speed Recording

    Yes

  • High Speed Recording Modes

    1920x1080 QuickTime (MPEG-4, AVC/H.264)
    120fps/100fps

  • Recording Data rate 1

    150 Mbps (UHD)

  • Recording Data rate 2

    70 Mbps (UHD)

  • Recording Data rate 3

    8,17,24,28 Mbps (AVCHD)

  • Recording Data rate 4

    35 Mbps (UHQ)

  • Recording Data rate 5

    50 Mbps (XHQ/YUV422)

  • Recording Data rate 6

    8 Mbps (SD)

  • Recording Data rate 7

    9,8,5,3,1.2,0.8,0.3,0.2 (WEB)

  • SD Recording

    Yes

  • Interval Recording

    Yes

  • Pre Rec (retro) recording

    Yes, 5 sec. (4K)
    5,10,15 sec. (HD/SD)

  • Clip Trimming

    Yes

  • Audio Channels

    2

  • Audio Recording modes

    LPCM 2ch, 48 kHz/16 bit (4k/HD/SD MOV), AC3 2ch (AVCHD), microlow 2ch (Proxy)

Input / Output Connections

Jump to...
  • OUT HDSDI

    Yes, 3G HDSDI

  • OUT HDSDI Format max.

    1080/60p,50p 8 Bit 4:2:2 EE

  • OUT HDMI

    Yes

  • OUT HDMI Format max.

    2160/30p,25p,24p 8 bit 4:2:2 EE

  • OUT HDMI Format max.

    2160/30p,25p,24p 8 bit 4:2:2 EE

  • OUT AV

    Yes, 3.5mm mini jack

  • OUT Audio Line

    Yes, 1 times 3.5mm mini jack

  • OUT Audio Headphone

    Yes, 1 times 3.5mm mini jack

  • IN Audio XLR MIC/LINE

    Yes, 2 times supports LINE and MIC Level with +48V

  • IN Audio AUX

    Yes, 1 times 3.5mm mini jack

  • Build in Microphones

    Yes, Stereo Mic

  • Wired remote IN

    Yes, serial LANC 2.5mm mini jack

  • USB Data Exchange (Storage)

    Yes

EVF and LCD

Jump to...
  • Operation Panel Type

    LCD

  • Operation Panel Resolution

    920K

  • Operation Panel Size diagonal

    3.5" (8.9cm)

  • Electronic Viewfinder (EVF) Type

    LCOS

  • Electronic Viewfinder (EVF) Resolution

    1,56M

  • Electronic Viewfinder Size diagonal

    0.24"

Power and Environment

Jump to...
  • Power AC

    Yes, DV12V(AC Adapter)

  • Power DC

    Yes, 12V , Battery 7.4V

  • Power consumption

    Approx. 8.0W (with VF in 4K REC mode, default settings)

  • Operation Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Operation Humidity

    30 to 80%

  • Storage Humidity under

    85%

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (W x H x D)

    5.8 x 7.5 x 12" (149 x 191 x 307mm)

  • Weight

    2.44 lbs (1.11kg) (including battery) (Approx.)

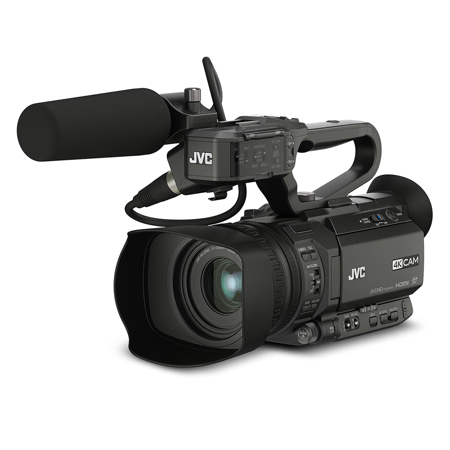

About JVC GY-HM180U

The GY-HM180U 12.4MP 4K UHD Compact Handheld Camcorder with Integrated 12x Ultra HD Lens is a game-changer in the realm of professional compact cameras. It boasts enhanced recording features over its predecessor, offering full professional controls and a seamlessly integrated 12x zoom lens. This handheld camcorder delivers breathtaking 4K Ultra HD video recordings directly to cost-effective SDHC/SDXC memory cards.

For live broadcasting needs, it offers 4K output through its HDMI connector, or HD through the newly added 3G-SDI output. The integrated 12x Ultra HD Lens, coupled with a 1/2.3-inch CMOS Sensor, ensures ultra-high-quality imagery. The precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.6-355mm) and JVC's 4K CMOS sensor with 12.4M pixels provide high sensitivity and superior performance across diverse lighting conditions.

When shooting in HD mode, the Dynamic Zoom combines optical zoom and pixel mapping to create a seamless and lossless 24x zoom, allowing the camera to maintain a long zoom range while retaining its compact form. The convenient ND filter wheel with 0, 1/4th, and 1/16th positions further enhances the user experience.

The GY-HM180U makes working with 4K easier than ever. Simply insert an SDHC or SDXC (UHS-I Speed class3) memory card and record hours of 4K Ultra HD (3840 x 2160) material. The recordings are made using the Quicktime (.MOV) file format, ensuring compatibility with many popular editing systems.

The camera also offers 4:2:2 Full HD recording at 50Mbps, making it an ideal choice for general HD production work. The dual SDHC/SDXC card slots offer simultaneous recording and relay recording, providing a truly versatile camcorder experience.

For web-friendly formats, lower resolution H.264 files (480x270p and 960x540p) can be recorded simultaneously with full HD files. These smaller files are perfect for immediate web posting or quick import to an iPad for easy editing using iMovie or Pinnacle Studio.

In summary, the GY-HM180U 12.4MP 4K UHD Compact Handheld Camcorder with Integrated 12x Ultra HD Lens is a compact, high-definition, handheld, portable, and user-friendly device designed for professionals and individuals seeking high-quality video recording capabilities.

JVC GY-HM180U Features

  • Single 1/2.3-inch CMOS image sensor with 12.4 million pixels (9.03 active)
  • High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
  • Dynamic zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom
  • 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC (UHS-I Speed class3) card
  • 4:2:2 full HD recording at 50Mbps (24-60p)
  • 120fps HD slow motion recording
  • Live 4K UHD output via HDMI connector
  • 3G-SDI output for HD signals
  • 2 position ND filter (1/4, 1/16)
  • Built-in stereo microphone
  • Audio handle with 2 XLR connectors
  • Dual SDHC/SDXC slots enable dual, backup and continuous recording
  • Clip Continuous Recording mode
  • 3.5-inch color LCD display (920K pixel) with smart focus assist function
  • 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
  • Wired remote control supported
  • 9 user button assignable functions
  • Includes BN-VF823 7.2V Battery, AC Adapter

Key Features

  • High-performance 4K UHD Compact Handheld Camcorder for professional video recording
  • Integrated 12x Ultra HD Lens with 1/2.3-inch CMOS Sensor for high-quality imagery
  • Dynamic Zoom feature for seamless and lossless 24x zoom in HD mode
  • Dual SDHC/SDXC card slots for simultaneous and relay recording
  • 4:2:2 Full HD recording at 50Mbps ideal for general HD production work
  • Lower resolution H.264 file recording for immediate web posting or iPad editing

What's in the box:

  • JVC GY-HM180U 12.4MP 4K UHD Compact Handheld Camcorder
  • BN-VF823 Battery
  • AC/DC Adapter
  • Handle Unit
  • User Manual
  • JVC 1 Year Limited Warranty
