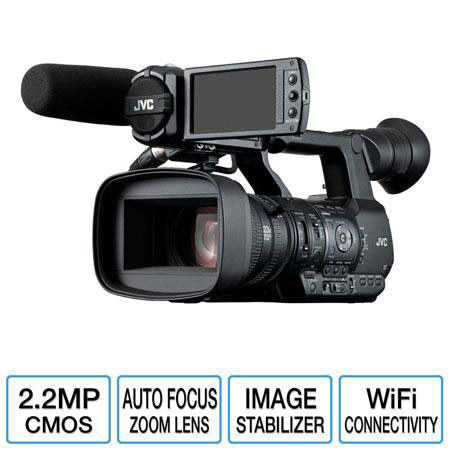

JVC GY-HM650: Picture 1 thumbnail

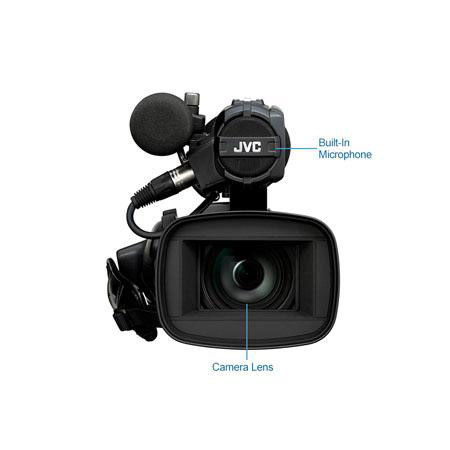

JVC GY-HM650: Picture 2 thumbnail
JVC GY-HM650: Picture 3 thumbnail
JVC GY-HM650: Picture 4 thumbnail
JVC GY-HM650: Picture 5 thumbnail
JVC GY-HM650: Picture 6 thumbnail
+8
more
JVC GY-HM650 ProHD Mobile News Camera - Open Box
See all JVC items

JVC GY-HM650 ProHD Mobile News Camera, 2.2MP, Three 1/3" 12-Bit CMOS Sensors, 23x Fujinon Auto Focus Zoom Lens, Built-In GPS - Open Box

SKU: JVGYHM650BB
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

JVC GY-HM650 Specifications

  • Sensor

    1/3" 2.2M pixels progressive scan 3CMOS

  • Synchronizing System

    Internal

  • Stabilizer

    Optical image stabilizer

  • Lens

    Fujinon F1.6-3.0, 23x, f=4.1 - 94.3 mm (35 mm conversion: 29 to 667 mm)

  • Filter Diameter

    72 mm

  • Shutter Speed

    1/4 to 1/10000

  • Gain

    -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC

  • ND Filter

    1/4, 1/16, 1/64

  • LCD Display

    3.5" (8.9 cm) 920K pixels, 16:9

  • Viewfinder

    0.45" (1.1 cm) 1.22M pixels, 16:9

  • Recording Media

    2x SDHC/SDXC memory card class 6/10

  • Video Recording

    Video codec: MPEG2 Long GOP (HD), AVCHD, H.264 (SD)
    File format: MOV (HD/SD: H.264), MP4 (XDCAM EX), MTS (AVCHD)

  • Recording Mode

    MPEG-2 Long GOP:
    NTSC setting
    HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p
    SP mode: 1440 x 1080/59.94i
    AVCHD
    NTSC setting
    HQ mode: 1920 x 1080/59.94i, SP mode: 1920 x 1080/59.94i
    SD (H.264)
    NTSC setting: 720 x 480/59.94i
    Proxy (H.264)NTSC setting: LP/LV mode: 480 x 270/29.97p, 23.98p

  • Audio Recording

    LPCM 2ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 (AVCHD)

  • Video Output

    (1) AV output (f3.5 mm mini jack)
    (1) SDI output
    (1) HDMI output

  • Audio Input

    (2) XLR (MIC, +48V/LINE)
    (1) f3.5 mm mini jack

  • Audio Output

    (1) AV output (f3.5 mm mini jack)

  • Headphone

    (1) f3.5 mm mini jack

  • Time Code Link Input/Output

    (1) RCA

  • Remote

    (1) f2.5 mm mini jack

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage Temperature

    14 to 122deg.F (-20 to 50deg.C)

  • Operating Humidity

    35 to 80%

  • Storage Humidity

    Under 85%

  • Power

    DC 12V (AC adapter), DC 7.2V (battery)

  • Power Consumption

    Approx. 12W (with VF and LCD monitor)

  • Dimensions

    7x7.8x16.3" (17.8x19.8x41.6cm)

  • Weight

    Approx. 5.3lbs (2.4kg)

5 Accessories for JVC GY-HM650 ProHD Mobile News Camera, 2.2MP, Three 1/3" 12-Bit CMOS Sensors, 23x Fujinon Auto Focus Zoom Lens, Built-In GPS - Open Box

  • All Accessories (5)
  • Microphones & Audio (1)
  • Filters (2)
  • Bags & Cases (1)
  • Tripods (1)
ProOPTIC Pro Digital 72mm Multi Coated UV Ultra Violet Filter
ProOPTIC Pro Digital 72mm Multi Coated UV Ultra Violet Filter
$13.95
Recommended
Rode NTG2 Dual Powered Directional Condenser Microphone
Rode NTG2 Dual Powered Directional Condenser Microphone
$269.00
Porta Brace CSDV4U Mini DV Camera Case,Universal Cradle
Porta Brace CSDV4U Mini DV Camera Case,Universal Cradle
$199.07
Tiffen 72mm Circular Polarizer Filter
Tiffen 72mm Circular Polarizer Filter
$30.00
Miller DS10 Fluid Head with Solo 75 3-Section Aluminum Alloy Tripod
Miller DS10 Fluid Head with Solo 75 3-Section Aluminum Alloy Tripod
$1,678.65

About JVC GY-HM650

The JVC GY-HM650 ProHD Mobile News Camera features superb low-light performance, a lightweight and user-friendly design and exceptional advanced features, altogether providing capacity for fast, efficient and high-quality mobile newsgathering. Fully supporting the needs of news camera operators, the HM650 offers built-in GPS, Wi-Fi connectivity allowing FTP file uploads and remote control and remote viewing Apps for both iOS and Android. Also, a dual codec recording capacity allows for simultaneous HD + SD or HD + 1/4 HD capture for web delivery.

Three 1/3" 12-bit CMOS sensors are each capable of a max resolution of 1920 x 1080. A 23x Fujinon autofocus zoom lens shoots long and wide angles and is operable by manual functions. The camera offers F11 sensitivity at 2000 lux as well as a built-in 3-position ND filter. Connections include HD-SDI and HDMI. Comprehensive recording options consist of MPEG-2, AVCHD and SD and Proxy H.264. Two SDXC/SDHC slots are available for dual-backup, continuous recording. A viewfinder, LCD display and built-in microphone provide additional flexibility in on-the-go shooting.

JVC GY-HM650 Features

  • 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
  • F11 Sensitivity
  • 23x Fujinon Auto focus zoom lens with manual functions
  • F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)
  • Optical image stabilizer
  • 3 position ND filter (1/4, 1/16, 1/64)
  • 0.45-inch 1.22M pixel color viewfinder
  • 3.5-inch 920K pixel LCD display with focus assist
  • SDXC/SDHC memory card recording(2 slots for dual-backup, continuous recording)
  • Dual Codec: Recording simultaneously HD + SD or HD + 480 x 270 (for Web delivery)
  • Professional switch layout and comprehensive video settings
  • Pre Rec (retro) mode (20 sec.)
  • Interval (time lapse) recording
  • Built-in stereo microphone
  • 2-channel balanced audio inputs (mic/line switchable) w/phantom power supply
  • HD/SD-SDI, HDMI Outputs
  • Wired remote control connector
  • Built-in GPS
  • Wi-Fi connectivity with Apps for iOS/Android for remote control, remote viewing, metadata upload
  • FTP file upload via Wi-Fi
  • High performance 2D DNR

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • JVC GY-HM650 ProHD Mobile News Camera
  • AC Adapter
  • Battery Pack
  • AV Cable
  • JVC Warranty
