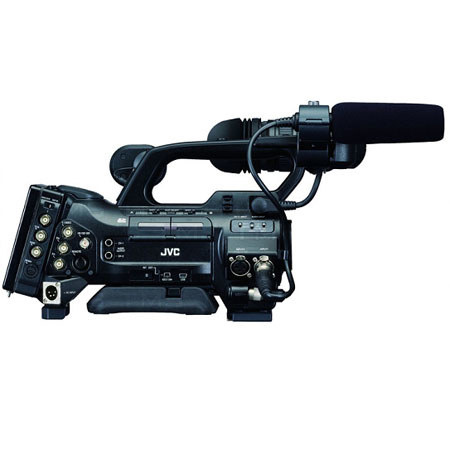

JVC GY-HM790 ProHD ENG / Studio Camera without Lens, 1/3" Progressive 3CCDs, Bayonet Lens Mount, Dual SD/SDHC Slots, HD/SD-SDI, Firewire Output

JVC GY-HM790 Features

• Modular Design: The GY-HM790 is equipped with a 68-pin chassis connector that allows various modules to be attached to the unit without external cabling
• Advanced Technologies = Higher HD Image Quality: The GY-HM790 utilizes three precisely aligned 1/3" progressive scan full HD CCDs--one each for red, green and blue primary colors--and outputs full resolution in both 720p and 1080i/p
• JVC Original 35Mbps MPEG2 Encoder: Drawing from its experience in developing rack mount encoders used by major television stations, JVC developed a proprietary codec capable of providing highly efficient compression up to 35 megabits per second, a bitrate that can support full 1920 x 1080 sampling
• Variable Frame Rate Recording (Overcrank, Undercrank): When recording in the 720p 35Mbps mode, the camera can be set to record at a frame rate different than the playback rate. This capability makes it possible to record slow or fast motion when the recording is played back at 24p or 30p
• Standard Definition Recording Capability: Responding to the needs of the industry, the GY-HM790, in addition to its capability as an HD recorder, offers standard-definition recording for maximum flexibility
• SDHC Memory Card Recording: The GY-HM790 records on widely available SDHC Class 6 or Class 10 memory cards, presently available in capacities up to 32GB. The camera provides 2 memory card slots, for a total of up to 64GB of on-board storage--enough for more than 6 hours of continuous HD recording
• Native File Recording: The GY-HM790 incorporates JVC's Native File Recording technology that stores video in the ready-to-edit file formats used by Apple's Final Cut Pro and other popular nonlinear editing systems
• Optional SxS Media Recorder: The optional SxS media recorder allows simultaneous shooting to SDHC and SxS media, providing instant backup or archival recordings. This compact recorder attaches directly to the GY-HM790 without an adapter
• Pre Rec (Retro Cache) Start Mode: In this mode, the GY-HM790 continually records up to 20 seconds in cache memory. When the trigger is pressed, the live signal is appended to the cache recording, giving the shooter a head start in getting the shot
• Continuous Clip Mode: In this mode, the GY-HM790 creates a single clip file from multiple trigger presses. This is ideal when "in camera editing" is preferred. The complete shot sequence is instantly available as a single clip
• JVC ProHD Clip Manager: The ProHD Clip Manager for both Mac and Windows makes it easy to manage MP4 clips on the GY-HM790's memory cards from your computer. With a few clicks of the mouse you can copy, move or delete clips, preview clip content, as well as view and edit clip metadata
• ProHD Log and Transfer Plug-in: The ProHD Log and Transfer Plug-in is a software for Apple's Final Cut Pro that lets you drop MP4 files recorded on the GY-HM790 into the clip bin of Final Cut Pro&
• Compact Shoulder Form Factor: Weighing only 8.2 lbs including lens, viewfinder, microphone and battery, the GY-HM790 rests comfortably on the right shoulder providing stable, steady shots
• High Resolution LCOS viewfinder: The GY-HM790 is equipped with a new, rugged, high-resolution viewfinder based on a new .45-inch 1.22MP Liquid Crystal on Silicon (LCOS) panel (852 x 480 x 3)
• Jumbo Size 4.3" Flip-out LCD Panel: The 4.3" 800 x 480 WVGA LCD offers a 16:9 aspect ratio and provides a wide array of monitoring and setup indications
• Built-in Clip View & Management Functions: When the camera is switched to the playback mode, a clip viewer appears on the large LCD monitor and in the VF. Clips are identified by timecode and with a user-defined filename with numeric increments
• Spot Exposure Meter: When shooting very high contrast scenes, the Spot Meter can be a very useful tool, letting the videographer monitor the dynamic range of an image on the LCD/VF and adjust the exposure of an object in the frame
• Uncompressed Audio Recording w/Full Manual Control: The GY-HM790 captures audio with the same uncompromising quality as video. Two-channel 16-bit/48kHz uncompressed linear PCM audio channels are recorded via the detachable shotgun microphone, or via a pair of balanced XLR connectors
• Patented "Focus Assist" Function: Achieving exact focus with HD signals is critical. JVC's Focus Assist turns focusing into a fast, easy and accurate process. When Focus Assist is activated, the picture in the viewfinder becomes monochrome and all objects which are in focus take on a colored edge
• HD/SD-SDI, IEEE1394 Output: For live broadcast applications or monitoring, the GY-HM790 provides an uncompressed, 4:2:2 full HD or downconverted SD signal via its HD/SD-SDI connector. The signal can come from either the camera or from memory playback
• Genlock / Aux (Pool feed) Input: For multi-camera productions, the GY-HM790 provides a genlock input. The same connector can be switched to an auxiliary SD video input (standard definition), useful for recording composite pool feeds from other cameras
• Timecode In/Out: Timecodes can be preset from within the GY-HM790's menu or can be input from an external timecode generator--useful in isocam recording applications
• KA-790 Studio Sled: KA-790 is a mechanical adapter for studio use for the GY-HM790 and KA-M790. It supports the VF-HP790 LCD studio viewfinder on the top and stabilizes the entire system including an optional teleprompter. A hinged side panel makes it easy to remove the camera for shoulder use
