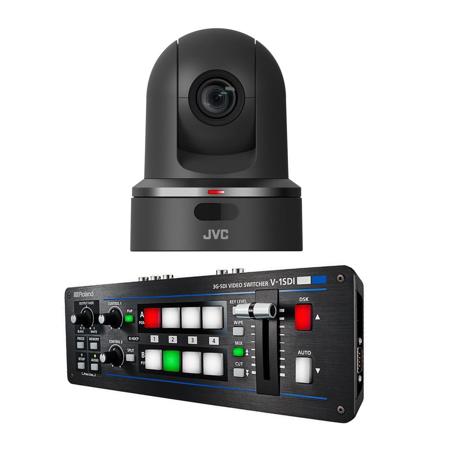

JVC KY-PZ100 2.13MP Full HD PoE+ Live Streaming 30x PTZ Camera, Black, Bundle with Roland V-1SDI Video Switcher

SKU: JVKYPZ100BA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of environments is the KY-PZ100 2.13MP Full HD PoE+ Live Streaming 30x PTZ Camera suitable for?

The KY-PZ100 is designed for both stand-alone and multi-camera system use, making it versatile enough to perform excellently in both studio and field environments.

Can the KY-PZ100 camera be controlled remotely?

Yes, remote control is possible via a web browser, the dedicated RM-LP100 remote control panel, or a variety of remote units using standard protocol.

What kind of sensor does the KY-PZ100 camera have?

The KY-PZ100 is equipped with a 1/2.8-inch CMOS sensor, offering 2.2 million pixels for high-resolution imaging.

Does the KY-PZ100 camera offer any kind of zoom capabilities?

Yes, the camera's optical zoom lens boasts a 30x zoom ratio, supplemented by a 12x digital zoom.

Can the KY-PZ100 camera record directly to a memory card?

Yes, this camera includes on-board HD recording at up to 50Mbps to a micro SDHC/SDXC card, with the ability to upload the recorded files to an external server.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC KY-PZ100 Specifications

  • Image Sensor

    1/2.8" CMOS 2.13M pixel

  • Lens

    F1.6(wide) to F4.7(Tele) f=4.3mm to 129mm
    30x Optical Zoom

  • Streaming Capability

    1080p
    1080i/60
    720p
    540p
    270p

  • Digital Zoom

    12x

  • Horizontal FOV

    63.7 deg. -2.3 deg.

  • Shutter speed

    1/60- 1/10000 (U model), 1/50- 1/10000 (E model)

  • Gain

    0, 3, 6, 9, 12, 15, 18, 21, 24, 30, 36, 42, 48 dB

  • Minimum Illumination

    High sensitive mode OFF:0.1
    High sensitive mode ON: 0.01 lx

  • White Balance

    FAW, OnePush, 3200K, 5600K, Manual

  • S/N ratio

    50dB

  • Pan/Tilt Angle

    Pan: +/-175 deg.
    Tilt: -30 deg. / 90 deg.

  • Preset Position

    100 points

  • HD Video output

    SDI output (3G support:1x BNC), 1x HDMI output

  • Audio input

    Dia. 1x 3.5mm mini jack ( Balanced Mono/Line / MIC with Power)

  • LAN terminal

    RJ-45

  • RS-422

    Serial Control ( RJ-45 )

  • RS-232C

    Mini DIN 8pin (IN), Mini DIN 8pin (OUT)

  • USB

    1x Host (Network Connection)

  • Live streaming protocol

    MPEG-2-TS/UDP,MPEG2-TS/TCP, RTSP/RTP, Zixi, RTMP

  • Recording media

    Micro SDHC/SDXC memory card ( Class 6/10 )

  • Video recording

    Video codec: MPEG-4 AVC/H.264
    File format: Quick Time
    HD(H.264)
    NTSC setting:
    1920x1080/59.94p,59.94i,29.97p(50Mbps)
    1920x1080/59.94i,29297p(35Mbps), 1280x720/59.94p(35Mbps)
    1920x1080/59.94p(28Mbps)
    1920x1080/59.94i,29.97p(18Mbps), 1280x720/59.94p,29.97p(18Mbps)
    1920x1080/59.94i(5Mbps), 1280x720/29.97p(5Mbps)

  • Video recording (cont.)

    PAL setting:
    1920x1080/50p,50i,25p(50Mbps)
    1920x1080/50i,25p(35Mbps), 1280x720/50p(35Mbps)
    1920x1080/50p(28Mbps)
    1920x1080/50i,25p(18Mbps), 1280x720/50p,25p(18Mbps)
    1920x1080/50i(5Mbps), 1280x720/25p(5Mbps)

  • Audio recording

    LPCM 2ch, 48kHz/16-bit(MOV), Mu-low 2ch(5Mbps)

  • Operation temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating humidity

    30% to 80%

  • Storage humidity

    Under 85%

  • Power

    DC12V(AC adapter), DC42V to 57V(PoE+ power supply)

  • Power Consumption

    1.2A (AC adapter) , 0.4A (PoE+ power supply)

  • Dimensions (W x H x D)

    148 x 199.5 x 172mm / 5.83 x 7.85 x 6.77"

  • Weight

    Approx. 1.9kg / 4.19lbs

About JVC KY-PZ100

Before diving into the world of professional video production, consider the KY-PZ100 2.13MP Full HD PoE+ Live Streaming 30x PTZ Camera. This robotic pan, tilt, and zoom camera is a groundbreaking product from JVC, featuring a unique IP communications engine that allows for seamless network connection via Wi-Fi, 4G-LTE, or a cabled LAN.

Designed for both stand-alone and multi-camera system use, this camera is versatile enough to thrive in studio and field environments. It offers reliable streaming of 1080i/60, 1080p, 720p, and 360p video, complete with 2-channel audio, all with minimal latency and forward error correction.

The KY-PZ100 is equipped with a 1/2.8-inch CMOS sensor, offering 2.2 million pixels for high-resolution imaging. The optical zoom lens boasts a 30x zoom ratio (4.3-129mm, f/1.6-4.7), supplemented by a 12x digital zoom. With built-in autofocus and image stabilization, this camera ensures sharp, steady footage in every shoot.

The camera's high sensitivity mode, which operates down to 0.01 lux, combined with a fast f/1.6-4.7 maximum aperture, ensures excellent low light performance. The direct drive motor provides smooth, quiet, and accurate pan and tilt, making it an ideal choice for professional video production.

The KY-PZ100 is PoE+ equipped, meaning a single LAN cable can handle streaming, camera control, and power supply simultaneously. It also offers full HD 1080p, 1080i, 720p video, and simultaneous 3G-SDI, HDMI, and IP digital outputs.

This camera also includes on-board HD recording at up to 50Mbps to a micro SDHC/SDXC card, with the ability to upload the recorded files to an external server. Remote control is possible via a web browser, the dedicated RM-LP100 remote control panel, or a variety of remote units using standard protocol.

The KY-PZ100 can memorize up to 100 preset settings and positions, and can be mounted upside-down or right-side-up for maximum flexibility. Its advanced IP communications capability includes streaming with SMPTE 2022 forward error correction, advanced Zixi reliable communication with ARQ, FEC, and adaptive bitrate control, low latency streaming, and RTMP streaming directly to content delivery networks like YouTube and Ustream.

In summary, the KY-PZ100 2.13MP Full HD PoE+ Live Streaming 30x PTZ Camera is a versatile, high-quality choice for professional video production, offering a wide range of features and capabilities to meet the demands of any project.

JVC KY-PZ100 Features

  • High-resolution 2.13MP Full HD PoE+ Live Streaming 30x PTZ Camera for professional video production
  • Unique IP communications engine for seamless network connection via Wi-Fi, 4G-LTE, or cabled LAN
  • Robust streaming capabilities with minimal latency and forward error correction, offering 1080i/60, 1080p, 720p, and 360p video with 2-channel audio
  • Equipped with a 1/2.8-inch CMOS sensor and 30x optical zoom lens for high-quality imaging, even in low light conditions
  • Direct drive motor for smooth, quiet, & accurate pan & tilt, enhancing video production quality
  • Advanced IP communications capability, including streaming with SMPTE 2022 forward error correction and RTMP streaming directly to content delivery networks like YouTube and Ustream

Product Documents

User Manual

Key Features

  • Unique IP communications engine for seamless network connection via Wi-Fi, 4G-LTE, or cabled LAN
  • Direct drive motor for smooth, quiet, & accurate pan & tilt, enhancing video production quality

What's in the box:

  • JVC KY-PZ100 2.13MP Full HD PoE+ Live Streaming 30x PTZ Camera (Black)
  • Power Supply
  • Remote Control
  • Ceiling Mount Bracket
  • Set of Screws
  • JVC 1 Year Limited Warranty
  • Bundle With:
  • Roland V-1SDI Video Switcher
