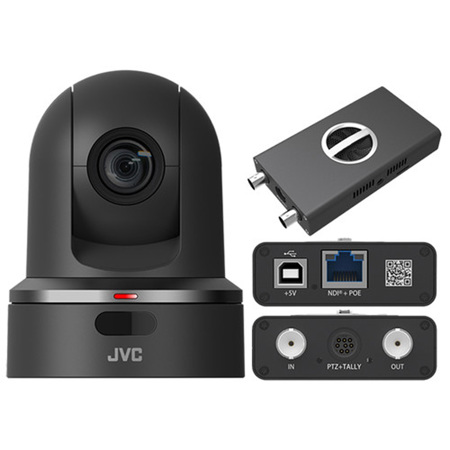

JVC KY-PZ100BU Robotic PTZ Network Video Production Camera with NDI Converter Kit, Black
SKU: JVKYPZ100BND
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About JVC KY-PZ100
Be at the forefront of video production technology with the KY-PZ100BU Robotic PTZ Network Video Production Camera with NDI Converter Kit in sleek black. This advanced and high-quality camera is a game-changer in the field of professional video production and surveillance.
The KY-PZ100BU is not just a PTZ (Pan, Tilt, Zoom) camera, it's a sophisticated robotic camera equipped with JVC's unique IP communications engine. This innovative feature allows for seamless network connection via Wi-Fi, 4G-LTE, or cabled LAN, making it a versatile choice for both studio and field environments.
This camera stands out with its high-resolution FHD (1920x1080) output, ensuring crisp and clear video quality. Its 30x optical zoom capability offers greater flexibility in framing shots and capturing distant subjects, making it a superior choice over alternative cameras.
The KY-PZ100BU is designed for reliable streaming of 1080i/60, 1080p, 720p, and 360p video with 2-channel audio, all with minimal latency and forward error correction. It features both 3G-SDI and HDMI outputs, catering to a variety of video production needs.
Control of this camera is user-friendly and can be done from a web browser, the dedicated RM-LP100 remote control panel, or from various remote units using standard protocol. It also boasts on-board HD recording at up to 50Mbps to a micro SDHC/SDXC card, with the added convenience of being able to upload the recorded files to an external server.
The KY-PZ100BU is equipped with a newly developed 1/2.8-inch image sensor and a 30x optical zoom lens that deliver broadcast-quality images even in low light conditions. Its Wide Dynamic Range mode ensures clear, natural foreground images even under challenging highlight conditions.
The included SDI to NDI Converter is a single-channel unit that converts the camera's SDI output to NDI, enabling its utilization in a switcher environment.
Whether you're wired or wireless, the KY-PZ100BU Robotic PTZ Network Video Production Camera with NDI Converter Kit offers the convenience of powering the camera, controlling it, and streaming to the world all from a single ethernet cable. This makes it the world's most convenient, high-quality robotic camera that can be placed virtually anywhere, stream full HD, and be controlled from anywhere in the world!
JVC KY-PZ100 Features
- PTZ Camera Features
- 1/2.8" CMOS sensor (2.2 million pixels)
- Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6-4.7)
- 12x digital zoom
- Autofocus and image stabilization built-in.
- Fast f/1.6-4.7 maximum aperture for excellent low light
- High sensitivity mode (down to 0.02 lux, color)
- Night mode (0.003 lux, BW)
- Direct drive motor for smooth, quiet and accurate pan and tilt
- PoE+ equipped: LAN cable enables simultaneous streaming, camera control and power supply
- Full HD 1080p, 1080i, 720p video
- Simultaneous 3G-SDI and HDMI and IP digital outputs
- 2 channels audio (or 1 channel balanced audio)
- USB host connection for Wi-Fi or 4G LTE adapter
- PELCO-D control protocol via RS-422/485
- Micro SDHC/SDXC memory card recording (H.264 50Mbps)
- Time/Date overlay
- Remote control via RS-232C / RS-422, or via IP controller
- Can memorize 100 preset settings and positions
- Can be mounted upside-down or right-side-up
- Advanced IP communications capability
- Streaming with SMPTE 2022 forward error correction
- Advanced Zixi reliable communication with ARQ, FEC and adaptive bitrate control
- (Requires optional Zixi license)
- Low latency streaming
- Standard control protocol over LAN (enables PTZ control by TriCaster and other products)
- RTMP streaming directly to content delivery network
- (JVC VIDEOCLOUD, YouTube, Ustream, etc.)
- SDI to NDI Converter Features
- High Bitrate / SDI image quality (100Mb/s True NDI vs. others 10Mb/s NDI|HX)
- Almost ZERO latency (vs higher latency NDI|HX)
- VISCA over IP PTZ control or use JVC's RMLP100 for control over IP
- PoE
- No additional license fees
- Plug and Play
- SDI Loop-through
