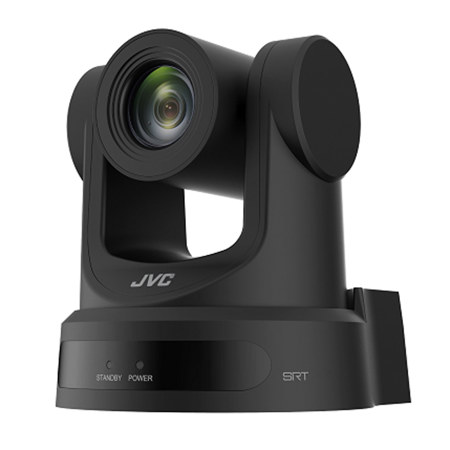

JVC KY-PZ200 HD Remote 20x PTZ Camera, Black

SKU: JVKYPZ200BU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of encoding does the KY-PZ200 HD Remote 20x PTZ Camera support?

The KY-PZ200 HD Remote 20x PTZ Camera supports advanced H.265/H.264/MJPEG encoding for superior streaming image quality and performance.

Can the KY-PZ200 HD Remote 20x PTZ Camera be used as a webcam?

Yes, the KY-PZ200N and KY-PZ200 models support UVC (USB Video class) and can be used as a webcam. They can be connected directly to a PC using a USB cable (sold separately).

What is the benefit of the SRT open-source technology in the KY-PZ200 HD Remote 20x PTZ Camera?

The SRT open-source technology in the KY-PZ200 HD Remote 20x PTZ Camera offers a future-proof solution with continual firmware updates. It also includes automatic repeat request (ARQ) and forward error correction (FEC) to prevent packet loss typically found on internet connections, and offers stream encryption for content protection.

Does the KY-PZ200 HD Remote 20x PTZ Camera offer multi-camera synchronization?

Yes, the KY-PZ200 HD Remote 20x PTZ Camera features Vertical Interval Time Code (VITC) with Network Time Protocol (NTP), providing multi-camera synchronization for live event production.

What interfaces does the KY-PZ200 HD Remote 20x PTZ Camera include?

The KY-PZ200 HD Remote 20x PTZ Camera includes HDMI and 3G-SDI, RJ45 with PoE, RS232, and RS485 interfaces as standard.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC KY-PZ200 Specifications

Camera Section

Camera Section

Jump to...
  • Sensor

    1/2.8", CMOS, effective pixels:2.07M

  • Scanning Mode

    Progressive

  • Lens

    20x, f = 4.42mm - 88.5mm, F1.8 - F2.8

  • Digital Zoom

    8x

  • Minimal Illumination

    0.5Lux @ (F1.8, AGC ON)

  • Shutter

    1/30s - 1/10000s

  • White Balance

    Auto, indoor, outdoor, one push, manual

  • Backlight Compensation

    Supported

  • Digital Noise Reduction

    3D digital noise reduction

  • Horizontal Angle of View

    60.7 Degree - 3.36 Degree

  • Vertical Angle of View

    34.1 Degree - 1.89 Degree

  • Horizontal Rotation Range

    +/-170 Degree

  • Vertical Rotation Range

    -30 Degree - +90 Degree

  • Pan Speed Range

    1.7 Degree - 100 Degree /s

  • Tilt Speed Range

    1.7 Degree - 69.9 Degree /s

  • H & V Flip

    Supported

  • Image Freeze

    Supported

  • PoE

    Supported

  • Number of Preset

    255

  • Preset Accuracy

    0.1 Degree

USB Features

Jump to...
  • Operate System

    Windows 8, Windows 10, Mac OS X, Linux, Android

  • Color System / Compression

    Uncompressed / H.264 / MJPEG

  • Video Format

    Uncompressed YUV : max up to 1080P@30fps
    H.264 AVC: max up to 1080P@60fps
    H.264 SVC: max up to 1080P@60fps
    MJPEG: max up to 1080P@60fps

  • Audio on USB

    Supported

  • USB Video Communication Protocol

    UVC 1.1-1.6

  • UVC PTZ

    Supported

Internet Features

Jump to...
  • Video Compression

    H.265/H.264/MJPEG

  • Video Stream

    Main stream, sub stream

  • Main Stream Resolution

    1920x1080, 1280x720, 1024x576, etc.

  • Sub Stream Resolution

    720x576, 720x480, 320x240, etc.

  • Video Bit Rate (H264,H265)

    Max 58Mbps

  • Bit Rate Type

    Variable Rate, Fixed Rate

  • Frame Rate

    50Hz: 1fps-50fps, 60Hz:1fps-60fps

  • Audio Compression

    AAC, G712

  • Audio Bit Rate

    96Kbps, 128Kbps, 256Kbps

  • Supported Protocols

    SRT, HTTP, RTSP, RTMP/RTMPS, (Standard IP control protocol)

  • SRT Mode

    Listener, Caller

  • Output

    HDMI: version 1.4
    HDMI video formats:
    1920x1080 60p/59.94p/50p/30p/29.97p/25p
    1920x1080 60i/59.94i/50i
    1280x720 60p/59.94p/50p/25p
    3G-SDI: BNC type, 800mVp-p, 75 Ohm, Along to SMPTE 424M standard

    3G-SDI video formats:
    1920x1080 60p/59.94p/50p/30p/29.97p/25p
    1920x1080 60i/59.94i/50i
    1280x720 60p/59.94p/50p

  • Network Interface

    RJ45: 10M/100M/1000M Ethernet Interface

  • Audio Interface

    Line In:3.5mm audio interface
    Line Out: 3.5mm audio interface

  • USB

    USB2.0, A type (for maintenance)
    USB3.0, B type

  • Communication Interface

    RS232 In: 8pin Min DIN, Max Distance: 30m, (Standard)/Pelco-D/Pelco-P Protocol
    RS232 Out: 8pin Min DIN, Max Distance: 30m, (Standard Protocol)
    RS485: 2pin Phoenix Port, Max Distance: 1200m, (Standard)/Pelco-D/Pelco-P Protocol

  • Power Jack

    DC IN 12V

  • VITC synchronization

    Supported (via NTP in Time code)

  • Remote controller

    Supported

General

Jump to...
  • Color

    Black

  • Installation

    Normal, upside-down

  • RESTORE button

    Supported

  • Standby Function

    Supported

  • LED

    Power : 1x Blue
    Standby : 1x Yellow-green

  • Input Voltage

    DC 12V, Max 1.5A

  • POE supply

    802.3af standard

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Storage Temperature

    -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C)

  • Power Consumption

    Max 12W

  • Dimensions (D x W x H)

    6.7 x 5.6 x 6.5" (17 x 14.22 x 16.51cm)

  • Weight

    3.7 lbs (1.67kg)

About JVC KY-PZ200

Bring your remote production to the next level with the KY-PZ200 HD Remote 20x PTZ Camera in sleek black. This state-of-the-art camera is designed to deliver superior streaming image quality and performance, making it an ideal choice for internet and SRT streaming. It incorporates advanced H.265/H.264/MJPEG encoding and VITC (Vertical Interval Timecode) multi-camera synchronization technologies, ensuring you get the best results for your projects.

The KY-PZ200 PTZ camera is available in both black and white models, allowing you to choose the one that best complements your venue or project's ambiance. This camera is not just about aesthetics; it's also about delivering high-quality, low-latency IP video transmission, making it a perfect fit for the ever-evolving media landscape.

The camera supports a range of standard protocols including SRT, HTTP, RTSP, RTMP/RTMPS. With the integration of SRT open-source technology, this PTZ camera offers a future-proof solution with continual firmware updates. The advanced streaming capabilities of the SRT technology include automatic repeat request (ARQ) and forward error correction (FEC) to prevent packet loss typically found on internet connections. It also offers stream encryption for content protection.

The KY-PZ200 PTZ camera also features Vertical Interval Time Code (VITC) with Network Time Protocol (NTP), providing multi-camera synchronization for live event production. This feature is crucial for the mixing and streaming of concerts, shows, sports, and other live productions where image synchronization is essential.

Remote control capabilities are made possible through the JVC RM-LP100 Remote Camera Controller. The camera is equipped with an HD 1/2.8-inch progressive CMOS image sensor and a 20x optical zoom reaching out to 606.9mm @35mm equivalence. It includes HDMI and 3G-SDI, RJ45 with PoE, RS232, and RS485 interfaces standard.

The KY-PZ200N and KY-PZ200 support UVC (USB Video class) and can be used as a webcam. They can be connected directly to a PC using a USB cable (sold separately) and used in place of a webcam. This makes them ideal for shooting and distributing high-quality, high magnification images for web conferences and remote lectures.

In conclusion, the KY-PZ200 HD Remote 20x PTZ Camera is a versatile and high-performing camera that brings professional-quality imaging to your remote productions.

JVC KY-PZ200 Features

  • 1/2.8", CMOS Sensor
  • 20x, f = 4.42mm - 88.5mm, F1.8 - F2.8 Lens
  • 8x Digital Zoom
  • 0.5Lux @ (F1.8, AGC ON) Minimal Illumination

Product Documents

User Manual

Key Features

  • High-performance HD remote PTZ camera with 20x optical zoom
  • Advanced H.265/H.264/MJPEG encoding and VITC multi-camera synchronization
  • Supports SRT, HTTP, RTSP, RTMP/RTMPS standard protocols for versatile streaming
  • Features ARQ and FEC to prevent packet loss and stream encryption for content protection
  • Equipped with an HD 1/2.8-inch progressive CMOS image sensor for superior image quality
  • Can be used as a webcam, ideal for web conferences and remote lectures

What's in the box:

  • 1x JVC KY-PZ200 2.07MP HD PTZ Remote Camera (Black)
  • 1x AC Power Adapter
  • 1x Power Cable
  • 1x RS232 Cable
  • 1x IR Remote Control
  • 1x Ceiling Bracket
  • 2x Logo Sticker
  • 1x User Manual
  • JVC 1 Year Limited Warranty
