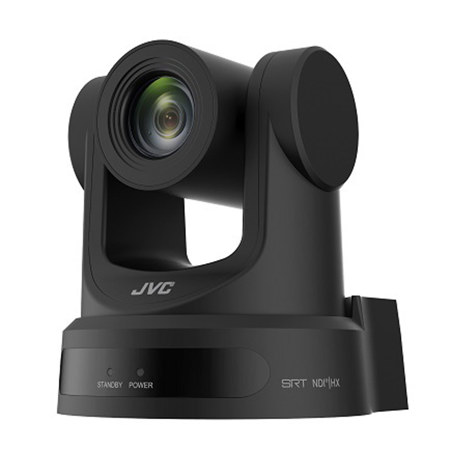

JVC KY-PZ200N HD NDI|HX 20x PTZ Remote Camera, Black

SKU: JVKYPZ200NBU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the KY-PZ200N HD NDI|HX 20x PTZ Remote Camera suitable for live streaming?

The KY-PZ200N HD NDI|HX 20x PTZ Remote Camera is equipped with advanced NDI|HX and SRT streaming technologies, H.265/H.264/MJPEG encoding, and a high-quality, low-latency IP video transmission standard, making it ideal for live streaming.

Can the KY-PZ200N HD NDI|HX 20x PTZ Remote Camera be used as a webcam?

Yes, the KY-PZ200N HD NDI|HX 20x PTZ Remote Camera supports UVC (USB Video class) and can be connected directly to a PC using a USB cable, allowing it to be used as a high-quality webcam for remote lectures or web conferences.

How does the KY-PZ200N HD NDI|HX 20x PTZ Remote Camera ensure optimal image quality?

The KY-PZ200N HD NDI|HX 20x PTZ Remote Camera features an HD 1/2.8-inch progressive CMOS image sensor and 20x optical zoom capability, ensuring superior image capture and quality.

What features of the KY-PZ200N HD NDI|HX 20x PTZ Remote Camera make it future-proof?

The camera includes SRT open-source technology, which offers users a future-proof solution with continual firmware updates. It also features advanced streaming capabilities, including automatic repeat request (ARQ) and forward error correction (FEC), to prevent packet loss typically found on internet connections.

How does the KY-PZ200N HD NDI|HX 20x PTZ Remote Camera handle multi-camera synchronization?

The camera features Vertical Interval Time Code (VITC) with Network Time Protocol (NTP), enabling multi-camera synchronization. This is particularly useful for live event production where image synchronization is crucial.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC KY-PZ200N Specifications

Camera Section

Camera Section

Jump to...
  • Sensor

    1/2.8", CMOS, effective pixels:2.07M

  • Scanning Mode

    Progressive

  • Lens

    20x, f = 4.42mm - 88.5mm, F1.8 - F2.8

  • Digital Zoom

    8x

  • Minimal Illumination

    0.5Lux @ (F1.8, AGC ON)

  • Shutter

    1/30s - 1/10000s

  • White Balance

    Auto, indoor, outdoor, one push, manual

  • Backlight Compensation

    Supported

  • Digital Noise Reduction

    3D digital noise reduction

  • Horizontal Angle of View

    60.7 Degree - 3.36 Degree

  • Vertical Angle of View

    34.1 Degree - 1.89 Degree

  • Horizontal Rotation Range

    +/-170 Degree

  • Vertical Rotation Range

    -30 Degree - +90 Degree

  • Pan Speed Range

    1.7 Degree - 100 Degree /s

  • Tilt Speed Range

    1.7 Degree - 69.9 Degree /s

  • H & V Flip

    Supported

  • Image Freeze

    Supported

  • PoE

    Supported

  • Number of Preset

    255

  • Preset Accuracy

    0.1 Degree

USB Features

Jump to...
  • Operate System

    Windows 8, Windows 10, Mac OS X, Linux, Android

  • Color System / Compression

    Uncompressed / H.264 / MJPEG

  • Video Format

    Uncompressed YUV : max up to 1080P@30fps
    H.264 AVC: max up to 1080P@60fps
    H.264 SVC: max up to 1080P@60fps
    MJPEG: max up to 1080P@60fps

  • Audio on USB

    Supported

  • USB Video Communication Protocol

    UVC 1.1-1.5

  • UVC PTZ

    Supported

Internet Features

Jump to...
  • Video Compression

    H.265/H.264/MJPEG

  • Video Stream

    Main stream, sub stream

  • Main Stream Resolution

    1920x1080, 1280x720, 1024x576, etc.

  • Sub Stream Resolution

    720x576, 720x480, 320x240, etc.

  • Video Bit Rate (H264,H265)

    Max 58Mbps

  • Bit Rate Type

    Variable Rate, Fixed Rate

  • Frame Rate

    50Hz: 1fps-50fps, 60Hz:1fps-60fps

  • Audio Compression

    AAC, G711

  • Audio Bit Rate

    96Kbps, 128Kbps, 256Kbps

  • SRT Mode

    Listener, Caller

  • Output

    HDMI: version 1.4
    HDMI video formats:
    1920x1080 60p/59.94p/50p/30p/29.97p/25p
    1920x1080 60i/59.94i/50i
    1280x720 60p/59.94p/50p/25p
    3G-SDI: BNC type, 800mVp-p, 75 Ohm, Along to SMPTE 424M standard

    3G-SDI video formats:
    1920x1080 60p/59.94p/50p/30p/29.97p/25p
    1920x1080 60i/59.94i/50i
    1280x720 60p/59.94p/50p

  • Network Interface

    RJ45: 10M/100M/1000M Ethernet Interface

  • Audio Interface

    Line In:3.5mm audio interface
    Line Out: 3.5mm audio interface

  • USB

    USB2.0, A type (for maintenance)
    USB3.0, B type

  • Communication Interface

    RS232 In: 8pin Min DIN, Max Distance: 30m, (Standard)/Pelco-D/Pelco-P Protocol
    RS232 Out: 8pin Min DIN, Max Distance: 30m, (Standard Protocol)
    RS485: 2pin Phoenix Port, Max Distance: 1200m, (Standard)/Pelco-D/Pelco-P Protocol

  • Power Jack

    DC IN 12V

  • VITC synchronization

    Supported (via NTP in Time code)

  • Remote controller

    Supported

General

Jump to...
  • Color

    Black

  • Installation

    Normal, upside-down

  • RESTORE button

    Supported

  • Standby Function

    Supported

  • LED

    Power : 1x Blue
    Standby : 1x Yellow-green

  • Input Voltage

    DC 12V, Max 1.5A

  • POE supply

    802.3af standard

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Storage Temperature

    -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C)

  • Power Consumption

    Max 12W

  • Dimensions (D x W x H)

    6.7 x 5.6 x 6.5" (17 x 14.22 x 16.51cm)

  • Weight

    3.7 lbs (1.67kg)

About JVC KY-PZ200N

What sets the KY-PZ200N HD NDI|HX 20x PTZ Remote Camera apart is its advanced streaming capabilities and high-tech features, making it an ideal choice for remote production and live streaming over the internet. This innovative camera model, available in both black and white, is designed to seamlessly blend into any venue or project ambiance.

Equipped with state-of-the-art NDI|HX and SRT streaming technologies, this camera offers H.265/H.264/MJPEG encoding, ensuring optimal streaming image quality and performance. The integrated NDI|HX technology from Vizrt Group provides a high-quality, low-latency IP video transmission standard, making it perfect for the ever-evolving media landscape.

The KY-PZ200N camera also includes SRT, HTTP, RTSP, RTMP/RTMPS, and standard protocols, ensuring compatibility with various platforms. The inclusion of SRT open-source technology, now a hallmark of JVC cameras, offers users a future-proof solution with continual firmware updates. The advanced streaming capabilities of the SRT technology include automatic repeat request (ARQ) and forward error correction (FEC), preventing packet loss typically found on internet connections. It also offers stream encryption for content protection.

The camera features Vertical Interval Time Code (VITC) with Network Time Protocol (NTP), enabling multi-camera synchronization for live event production. This is particularly useful for concerts, shows, sports, and other live productions where image synchronization is crucial.

The KY-PZ200N camera boasts an HD 1/2.8-inch progressive CMOS image sensor and a 20x optical zoom, reaching out to 606.9mm @35mm equivalence. It comes with HDMI and 3G-SDI, RJ45 with PoE, RS232, and RS485 interfaces as standard.

Additionally, the KY-PZ200N supports UVC (USB Video class) and can be used as a webcam, making it a versatile choice for web conferences and remote lectures. It can be connected directly to a PC using a USB cable (sold separately) and used in place of a webcam, providing high-quality, high magnification images.

Remote control capabilities are made possible through the JVC RM-LP100 Remote Camera Controller, adding to the convenience and ease of use. With its sophisticated features and innovative technology, the KY-PZ200N HD NDI|HX 20x PTZ Remote Camera is a top-tier choice for those seeking superior streaming and remote monitoring capabilities.

JVC KY-PZ200N Features

  • 1/2.8", CMOS Sensor
  • 20x, f = 4.42mm - 88.5mm, F1.8 - F2.8 Lens
  • 8x Digital Zoom
  • 0.5Lux @ (F1.8, AGC ON) Minimal Illumination

Product Documents

User Manual

Key Features

  • Advanced NDI|HX and SRT streaming technologies for high-quality, low-latency IP video transmission
  • Integrated H.265/H.264/MJPEG encoding for optimal streaming image quality
  • 20x optical zoom and HD 1/2.8-inch progressive CMOS image sensor for superior image capture

What's in the box:

  • 1x JVC KY-PZ200N NDI/HX 2.07MP HD PTZ Remote Camera (Black)
  • 1x AC Power Adapter
  • 1x Power Cable
  • 1x RS232 Cable
  • 1x IR Remote Control
  • 1x Ceiling Bracket
  • 2x Logo Sticker
  • 1x User Manual
  • JVC 1 Year Limited Warranty
