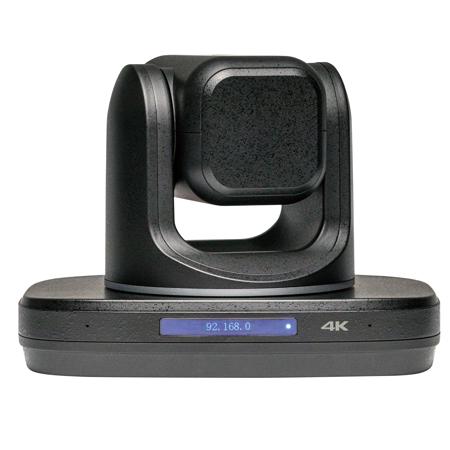

JVC KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera, Black
See all JVC items

JVC KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera, Black

SKU: JVKYPZ510BU
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main advantage of the SMART auto-tracking feature in the KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera?

The SMART auto-tracking feature allows the camera to focus on and follow a specific subject in the frame, such as a speaker or performer. This is especially useful in live event production, educational settings, or religious services.

What benefits does the HEVC SRT 4K60p streaming offer in the KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera?

HEVC SRT 4K60p streaming ensures high-quality video at lower bitrates, making it ideal for remote production over the internet. It also delivers natural, fluid imagery in high-movement settings like sports events and live performances.

What is the significance of the multi-camera synchronization feature in the KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera?

Multi-camera synchronization, made possible with VITC and NTP, is crucial for mixing and streaming concerts, shows, and sporting events where image synchronization is critical. It ensures a seamless live event broadcasting experience.

Does the KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera support H.264 encoding?

Yes, the KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera supports H.264 encoding, which increases its compatibility with a wide range of hardware and software applications.

What is the viewing angle of the KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera?

The KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera has a super-wide horizontal angle of view of 80 degrees, making it excellent for capturing live-action events, classrooms, auditoriums, or places of worship in their full scope.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

JVC KY-PZ510 Specifications

Camera Section

Camera Section

Jump to...

  • Sensor

    1/2.8", CMOS, effective pixels: 8.40MP

  • Scanning Mode

    Progressive

  • Lens

    12x, f = 3.47mm - 41.7mm, F1.8 - F3.7

  • Digital Zoom

    OFF, 4x, 8x, 16x

  • Minimal Illumination

    0.5Lux @ (F1.8, AGC ON)

  • Gain

    0db to 45db

  • Shutter

    1/30s - 1/10000s

  • White Balance

    Auto, Indoor, Outdoor, One-Push, Manual

  • Horizontal Angle of View

    80 Degree to 7.5 Degree

  • Vertical Angle of View

    49.9 Degree to 4.3 Degree

  • Horizontal Rotation Range

    +/-162.5 Degree

  • Vertical Rotation Range

    -30 Degree - +90 Degree

  • Pan Speed Range

    1.8 Degree - 80.5 Degree/s

  • Tilt Speed Range

    1.5 Degree - 49 Degree/s

  • H/V Flip

    Supported

  • H/V Auto Inversion

    Supported

  • Image Freeze

    Supported

  • Number of Preset

    255

  • Preset Accuracy

    0.1 Degree

Input / Output Interfaces

Jump to...

  • HDMI Output

    TYPE A, Max 3840x2160/ 60p, 50p

  • 3G-SDI Output

    BNC type, Embedded audio
    Video: SMPTE 424M ,SMPTE 292M
    Audio: SMPTE 299M
    Max 1920x1080, 60p, 50pBNC type, Embedded audio
    Video: SMPTE 424M ,SMPTE 292M
    Audio: SMPTE 299M
    Max 1920x1080, 60p, 50p

  • Network Interface (LAN)

    RJ-45 (Ethernet): 1000BASE-T/100BASE-TX

  • Audio Interface

    Stereo Mini-jack 3.5mm

  • USB Type-C for UVC

    Including UAC UVC Ver1.0 - Ver1.5 MJPEG/H.264, MAX: 3840x2160/30p (Host mode not supported)

  • Communication Interface

    RS-232C 8-pin Mini-DIN, RS485 2-pin Phoenix port

Network

Jump to...

  • Video Compression

    H.265/HEVC, H.264/MotionJPEG

  • Video Stream

    Main Stream
    Resolution: 640x360 to 3840x2160, Frame Rate: 25p to 60p

    Sub Stream
    Resolution: 320x240 to 720x480, Frame Rate: 25p to 60p

  • Streaming Protocol

    RTSP/RTP
    H.264: 3840x2160/60p50p/60Mbps with VITC
    H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC
    H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC
    MJPEG: 1920x1080/60p50p

    RTMP, RTMPS
    H.264: 3840x2160/60p50p/60Mbps

    SRT
    H.264: 3840x2160/60p50p/60Mbps with VITC
    H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC
    H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC

  • Remote Protocols

    Standard, Pelco, JVC (WEB API, RM-LP100)

  • VITC, Superimposition on Streaming

    RTSP, SRT, UDP
    4K/60p support

General

Jump to...

  • Color

    Black

  • LED

    Tally: Green x1, Red x1; Power On (front): Blue x2

  • Power

    DC12V (AC adapter), PoE+ (IEEE802.3at standard)

  • Power Consumption

    14.5W or less

  • Temperature

    Operating: 32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)
    Storage: -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C)

Physical

Jump to...

  • Humidity

    Operating: 30% to 80%, Storage: Under 85%

  • Dimensions (W x H x D)

    11.6 x 9.5 x 9.3" (29.4 x 24.1 x 23.62cm)

  • Weight

    7.9 lbs (3.58kg) (Approximately)

About JVC KY-PZ510

Before you dive into the world of remote production technology, consider the KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera in sleek black. This state-of-the-art PTZ camera is equipped with advanced features such as SMART auto-tracking and Vertical Interval Time Code (VITC) integrated with Network Time Protocol (NTP). These features allow the JVC PTZ camera to achieve multi-camera synchronization, making it an ideal choice for seamless live event production.

Leveraging the latest HEVC technology, the KY-PZ510BU supports multi-slice encoding, ensuring high-quality video at lower bitrates. This makes it perfect for remote production over the internet (REMI). In addition, the camera supports H.264 encoding, increasing its compatibility with a wide range of hardware and software applications.

The KY-PZ510BU stands out with its 4K60p streaming capability, delivering natural, fluid imagery in settings with high movement, such as sports events and live performances. Its super-wide horizontal angle of view (80 degrees) and focal length of 21.8 to 261.8mm make it an excellent choice for capturing live-action events, classrooms, auditoriums, or places of worship in their full scope.

The SMART auto-tracking function allows operators to set the camera to focus on and follow a specific person in the view, such as an instructor or a key person in a live production. This feature is particularly useful in educational settings, religious services, or live broadcasts.

The KY-PZ510BU's multi-camera synchronization capability is made possible with the VITC and NTP used in 1080 60p mode. This feature is crucial for mixing and streaming concerts, shows, and sporting events where image synchronization is critical. The camera can simultaneously output SRT and RTMPS for hybrid local/remote workflows, ensuring the highest quality distribution to the world's most popular CDNs. Experience the future of remote production technology with the KY-PZ510 4K UltraHD 3G-SDI/HDMI 12x PTZ Camera.

JVC KY-PZ510 Features

  • HEVC SRT 4K60p Streaming
  • Super-wide horizontal angle of view (80 degrees) and focal length of 21.8 to 261.8mm
  • Smart Auto-Tracking
  • Multi-Camera Synchronization
  • Can simultaneously output SRT, and RTMPS for hybrid local/remote workflows

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Advanced 4K UltraHD PTZ camera with 12x zoom for professional live production
  • Enhanced SMART auto-tracking for dynamic subject focus in educational and religious settings
  • High-efficiency HEVC SRT 4K60p streaming for superior remote production over the internet
  • Super-wide 80-degree viewing angle to capture the full scope of events and venues
  • Multi-camera synchronization with VITC and NTP for seamless live event broadcasting
  • Dual encoding with HEVC and H.264 for broad compatibility and streaming flexibility

What's in the box:

  • JVC KY-PZ510 3G-SDI/HDMI 4K Ultra HD 12x PTZ Camera (Black)
  • Power Adapter
  • IR Remote Control
  • Wall Mount
  • JVC 3 Year Limited Warranty
