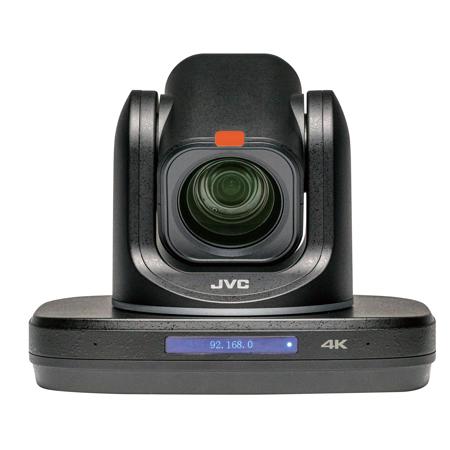

JVC KY-PZ510 4K UltraHD NDI|HX/3G-SDI/HDMI 12x PTZ Camera, Black

SKU: JVKYPZ510NBU

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JVC KY-PZ510N Specifications

Camera Section

Camera Section

Jump to...
  • Sensor

    1/2.8", CMOS, effective pixels: 8.40MP

  • Scanning Mode

    Progressive

  • Lens

    12x, f = 3.47mm - 41.7mm, F1.8 - F3.7

  • Digital Zoom

    OFF, 4x, 8x, 16x

  • Minimal Illumination

    0.5Lux @ (F1.8, AGC ON)

  • Gain

    0db to 45db

  • Shutter

    1/30s - 1/10000s

  • White Balance

    Auto, Indoor, Outdoor, One-Push, Manual

  • Horizontal Angle of View

    80 Degree to 7.5 Degree

  • Vertical Angle of View

    49.9 Degree to 4.3 Degree

  • Horizontal Rotation Range

    +/-162.5 Degree

  • Vertical Rotation Range

    -30 Degree - +90 Degree

  • Pan Speed Range

    1.8 Degree - 80.5 Degree/s

  • Tilt Speed Range

    1.5 Degree - 49 Degree/s

  • H/V Flip

    Supported

  • H/V Auto Inversion

    Supported

  • Image Freeze

    Supported

  • Number of Preset

    255

  • Preset Accuracy

    0.1 Degree

Input / Output Interfaces

Jump to...
  • HDMI Output

    TYPE A, Max 3840x2160/ 60p, 50p

  • 3G-SDI Output

    BNC type, Embedded audio
    Video: SMPTE 424M ,SMPTE 292M
    Audio: SMPTE 299M
    Max 1920x1080, 60p, 50pBNC type, Embedded audio
    Video: SMPTE 424M ,SMPTE 292M
    Audio: SMPTE 299M
    Max 1920x1080, 60p, 50p

  • Network Interface (LAN)

    RJ-45 (Ethernet): 1000BASE-T/100BASE-TX

  • Audio Interface

    Stereo Mini-jack 3.5mm

  • USB Type-C for UVC

    Including UAC UVC Ver1.0 - Ver1.5 MJPEG/H.264, MAX: 3840x2160/30p (Host mode not supported)

  • Communication Interface

    RS-232C 8-pin Mini-DIN, RS485 2-pin Phoenix port

Network

Jump to...
  • Video Compression

    H.265/HEVC, H.264/MotionJPEG

  • Video Stream

    Main Stream
    Resolution: 640x360 to 3840x2160, Frame Rate: 25p to 60p

    Sub Stream
    Resolution: 320x240 to 720x480, Frame Rate: 25p to 60p

  • Streaming Protocol

    RTSP/RTP
    H.264: 3840x2160/60p50p/60Mbps with VITC
    H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC
    H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC
    MJPEG: 1920x1080/60p50p

    RTMP, RTMPS
    H.264: 3840x2160/60p50p/60Mbps

    SRT
    H.264: 3840x2160/60p50p/60Mbps with VITC
    H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC
    H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC

  • Remote Protocols

    NDI, Standard, Pelco, JVC (WEB API, RM-LP100)

  • VITC, Superimposition on Streaming

    RTSP, SRT, UDP
    4K/60p support

General

Jump to...
  • Color

    Black

  • LED

    Tally: Green x1, Red x1; Power On (front): Blue x1

  • Power

    DC12V (AC adapter), PoE+ (IEEE802.3at standard)

  • Power Consumption

    14.5W or less

  • Temperature

    Operating: 32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)
    Storage: -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C)

  • Humidity

    Operating: 30% to 80%, Storage: Under 85%

  • Dimensions (W x H x D)

    11.6 x 9.5 x 9.3" (29.4 x 24.1 x 23.62cm)

  • Weight

    7.9 lbs (3.58kg) (Approximately)

About JVC KY-PZ510N

After meticulous engineering, the KY-PZ510 4K UltraHD PTZ Camera emerges as a sophisticated and state-of-the-art solution for professional video production and surveillance needs. This advanced camera, finished in a sleek black, is equipped with cutting-edge NDI 5 support, enhancing remote production capabilities with high-quality, low-latency IP video transmission that simplifies network connectivity.

The KY-PZ510 boasts an innovative SMART auto-tracking feature, enabling precise and automated tracking of moving subjects, perfect for dynamic video conferencing or capturing every moment during live events. Its auto-tracking technology ensures that key subjects, such as presenters or performers, remain in sharp focus, providing viewers with a consistent and engaging visual experience.

With its super-wide angle lens offering an expansive 80-degree horizontal field of view and a versatile focal length range of 21.8 to 261.8mm, the camera captures comprehensive scenes with exceptional clarity. Whether it's the full expanse of a lecture hall, the grandeur of a place of worship, or the intensity of a sports event, the KY-PZ510 delivers immersive footage with professional-grade quality.

The camera's multi-camera synchronization is a testament to its sophistication, utilizing Vertical Interval Time Code (VITC) and Network Time Protocol (NTP) in 1080 60p mode to ensure seamless integration and synchronization across multiple cameras. This feature is indispensable for live productions such as concerts, shows, and sporting events, where precise timing and coordination are paramount.

Leveraging the latest HEVC technology with multi-slice encoding, the KY-PZ510 provides superior video quality at lower bitrates, making it ideal for remote production over the internet (REMI). The camera's support for both HEVC SRT and H.264 encoding ensures broad compatibility with various hardware and software systems, while its 4K60p streaming capability captures fast-moving action with life-like detail and fluidity.

For added versatility, the KY-PZ510 is designed with networkability and POE technology, allowing for straightforward integration into existing network setups without the need for separate power supplies. This camera is a powerhouse for streaming, capable of simultaneous output in NDI, SRT, and RTMPS formats, catering to hybrid local/remote workflows and ensuring content delivery to the world's most popular CDNs with the highest fidelity.

In summary, the KY-PZ510 4K UltraHD NDI|HX/3G-SDI/HDMI 12x PTZ Camera stands out as an innovative, high-tech tool for professionals seeking a reliable, high-performance camera for video conferencing, surveillance, and live event production.

JVC KY-PZ510N Features

  • HEVC SRT 4K60p Streaming
  • NDI 5 is a high quality, low latency IP video transmission with easy network connection
  • Super-wide horizontal angle of view (80 degrees) and focal length of 21.8 to 261.8mm
  • Smart Auto-Tracking
  • Multi-Camera Synchronization
  • Can simultaneously output NDI, SRT, and RTMPS for hybrid local/remote workflows

Key Features

  • Innovative SMART auto-tracking feature for precise focus on moving subjects
  • Super-wide angle lens with 80-degree horizontal field of view and 21.8 to 261.8mm focal length
  • Latest HEVC technology with multi-slice encoding for superior video quality at lower bitrates

What's in the box:

  • JVC KY-PZ510 NDI|HX/3G-SDI/HDMI 4K Ultra HD 12x PTZ Camera (Black)
  • Power Cable
  • IR Remote Control
  • Wall Mount
  • JVC 3 Year Limited Warranty
