1/2.8", CMOS, effective pixels: 8.40MP
Progressive
12x, f = 3.47mm - 41.7mm, F1.8 - F3.7
OFF, 4x, 8x, 16x
0.5Lux @ (F1.8, AGC ON)
0db to 45db
1/30s - 1/10000s
Auto, Indoor, Outdoor, One-Push, Manual
80 Degree to 7.5 Degree
49.9 Degree to 4.3 Degree
+/-162.5 Degree
-30 Degree - +90 Degree
1.8 Degree - 80.5 Degree/s
1.5 Degree - 49 Degree/s
Supported
Supported
Supported
255
0.1 Degree
TYPE A, Max 3840x2160/ 60p, 50p
BNC type, Embedded audio
Video: SMPTE 424M ,SMPTE 292M
Audio: SMPTE 299M
Max 1920x1080, 60p, 50pBNC type, Embedded audio
Video: SMPTE 424M ,SMPTE 292M
Audio: SMPTE 299M
Max 1920x1080, 60p, 50p
RJ-45 (Ethernet): 1000BASE-T/100BASE-TX
Stereo Mini-jack 3.5mm
Including UAC UVC Ver1.0 - Ver1.5 MJPEG/H.264, MAX: 3840x2160/30p (Host mode not supported)
RS-232C 8-pin Mini-DIN, RS485 2-pin Phoenix port
H.265/HEVC, H.264/MotionJPEG
Main Stream
Resolution: 640x360 to 3840x2160, Frame Rate: 25p to 60p
Sub Stream
Resolution: 320x240 to 720x480, Frame Rate: 25p to 60p
RTSP/RTP
H.264: 3840x2160/60p50p/60Mbps with VITC
H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC
H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC
MJPEG: 1920x1080/60p50p
RTMP, RTMPS
H.264: 3840x2160/60p50p/60Mbps
SRT
H.264: 3840x2160/60p50p/60Mbps with VITC
H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC
H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC
Standard, Pelco, JVC (WEB API, RM-LP100)
RTSP, SRT, UDP
4K/60p support
White
Tally: Green x1, Red x1; Power On (front): Blue x2
DC12V (AC adapter), PoE+ (IEEE802.3at standard)
14.5W or less
Operating: 32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)
Storage: -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C)
Operating: 30% to 80%, Storage: Under 85%
11.6 x 9.5 x 9.3" (29.4 x 24.1 x 23.62cm)
7.9 lbs (3.58kg) (Approximately)

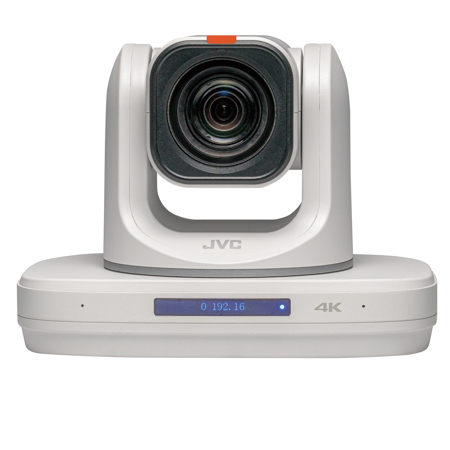

The New 4K KY-PZ510WU (White) PTZ Camera features the latest in remote production technology. The PTZ camera also offers enhanced SMART auto-tracking, Vertical Interval Time Code (VITC) with Network Time Protocol (NTP) which provides the new JVC PTZ camera with multi-camera synchronization for seamless live event production.
HEVC SRT 4K60p Streaming
Using the latest HEVC technology, the KY-PZ510WU can support multi-slice encoding to ensure higher quality video at lower bitrates for remote production over the internet (REMI).The camera also support H.264 encoding, which offers increased compatibility with a variety of hardware and software applications. Furthermore, the 4K60p streaming delivers natural imagery in settings with a lot of movement, such as sports and live events.
Super Wide Angle
The cameras super-wide horizontal angle of view (80 degrees) and focal length of 21.8 to 261.8mm are the perfect way to present live-action events as well as the full scope of a classroom, auditorium or house of worship.
Smart Auto-Tracking
The SMART auto-tracking function of the cameras means that operators can set the camera to focus on and follow one person in the view, such as an instructor, pastor or specific person in a live production.
Multi-Camera Synchronization
Multi-camera synchronization of live video streams is made possible with the VITC (Vertical Interval Time Code) and NTP (Network Time Protocol) used in 1080 60p mode. This feature is ideal for the mixing and streaming of concerts, shows, and sporting events where image synchronization is critical.
The KY-PZ510WU can simultaneously output SRT, and RTMPS for hybrid local/remote workflows to deliver the highest quality distribution to the worlds most popular CDNs.
