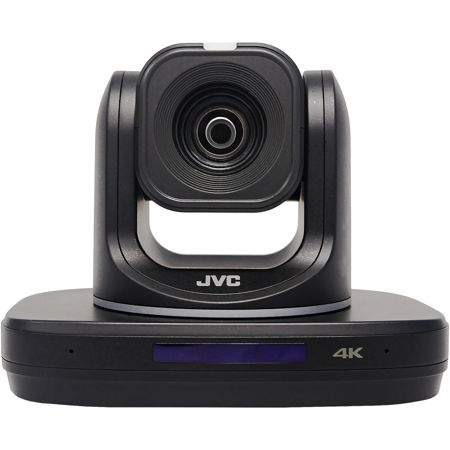

JVC KY-PZ540BU 8.42MP 4K Auto-Tracking 40x PTZ Camera

SKU: JVKYPZ540BU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the zoom capability of the JVC KY-PZ540BU camera?

The JVC KY-PZ540BU camera features a 40x full resolution HD zoom capability, utilizing JVC's Variable Scan Mapping technology for seamless image transitions.

How does the auto-tracking feature work on this camera?

The camera includes five auto-tracking settings: Standard, Area, Stage, Wide Area, and Fine Adjustment, allowing for intelligent subject tracking and smooth footage.

What type of sensor does the JVC KY-PZ540BU use?

The camera is equipped with an 8.42MP 4K sensor, designed to capture high-quality visuals with exceptional clarity.

Is this camera suitable for live event recording?

Yes, the JVC KY-PZ540BU is ideal for live events, lectures, and performances, offering precision and adaptability for high-quality video production.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC KY-PZ540BU Specifications

Camera Front-End

Camera Front-End

Jump to...
  • Image Sensor (inch)

    1/1.8" CMOS

  • Number of Sensors

    1

  • Mega Pixels

    8.42

  • Gain in dB

    0 to 45

  • S/N in dB

    55

  • Min. Illumination

    0.5Lux

  • Shutter Speed

    1/30 to 1/10000

Optical

Jump to...
  • Lens Mount

    Internal

  • Optical Zoom x times

    20

  • Optical Zoom in HD x times

    40

  • Dynamic Zoom x times

    16

  • Lens F Number

    1.8 to 3.7

  • Lens Ratio From / To

    1.58mm to 3.95mm

  • Lens Ratio Equivalent to 35mm

    6.25mm to 125mm

  • Auto Focus

    Yes

PTZ Head Features

Jump to...
  • PAN Angle (degree) +/-

    162.5 Degree

  • PAN Speed with POE+ (max degree/sec.)

    80 Degree

  • PAN Speed w/AC Adapter (max degree/sec.)

    80 Degree

  • TILT Angle (degree)

    -30 Degree to 90 Degree

  • TILT Speed with POE+ (max degree/sec.)

    49 Degree

  • TILT Speed w/AC Adapter (max deg/sec.)

    49 Degree

  • Preset Positions

    255

IP Section of the Product

Jump to...
  • IP Main Connection

    Ethernet LAN RJ45 1000Base-T with POE+

  • IP Connection Supports

    Ethernet

  • IP Features Live-Streaming

    Yes

  • IP Features Remote

    Yes, via RM-LP100, Chrome Web control, VISCA

  • Video Compression Codecs

    3

  • H.265 Codec

    Yes

  • H.264 Codec

    Yes

  • MJPEG Codec

    Yes

  • Live-Streaming Bitrates

    1-60 Mbit/s

  • Live-Streaming Protocols

    SRT, RTMP, RTMPS, RTSP

  • SRT Protocol

    Yes

  • Live-Streaming Single Cast

    Yes

  • Live-Streaming Multicast

    Yes

  • Live-Streaming Resolution

    3840x2160 (60p/50p/30p/25p), 1920x1080 (60p/50p/30p/25p/24p/i60/i50), 1280x720 (60p/50p/30p/25p/24p)

  • 4K Live Streaming

    Yes

  • Live Streaming Audio Channels

    2

IN-OUTs Connections

Jump to...
  • OUT HDSDI

    Yes, 3G HDSDI

  • OUT HDSDI Format Max.

    1080/60p, 50p

  • OUT HDMI

    Yes

  • OUT HDMI Format Max.

    2160/60p, 50p

  • OUT Audio Line

    Yes, 1x 3.5mm mini jack

  • IN Audio AUX

    Yes, 1x 3.5mm mini jack

  • Built-in Microphones

    Yes

  • PTZ Serial Interface RS-232C in/out

    Yes, over 8 PIN mini DIN

  • PTZ Supported Protocols

    Serial, PelcoD, IP JVC, IP others

Power and Environment

Jump to...
  • Power DC

    Yes, 12 Volt or 42V to 57V POE+ over Network LAN

  • Power Consumption

    18W

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -40 to 140 Degree F (-40 to 60 Degree C)

Mechanical

Jump to...
  • Dimensions (W x H x D)

    8.78 x 6.55 x 6.42" (223 x 166.4 x 163 mm)

  • Weight

    4.41 lbs (2kg)

About JVC KY-PZ540BU

From capturing stunning visuals to ensuring seamless transitions, the JVC KY-PZ540BU 8.42MP 4K Auto-Tracking 40x PTZ Camera is engineered for excellence in professional video production. This advanced camera features a 40x full resolution HD zoom capability, made possible by JVC's innovative Variable Scan Mapping (VSM) technology. This technology dynamically scans the 4K sensor, allowing for a seamless and lossless image transition that maintains high-quality visuals even at maximum zoom.

The camera is equipped with five distinct auto-tracking settings: Standard, Area, Stage, Wide Area, and Fine Adjustment. These settings enhance the camera's ability to intelligently track subjects, making it ideal for sophisticated and engaging productions. In Standard mode, users can customize the headroom spacing above the subject, ensuring optimal framing. The Area mode allows the camera to capture the designated frame where the target subject is visible, automatically panning to adjacent areas as the subject moves. This intelligent auto-tracking functionality ensures that the camera remains focused on the subject, providing smooth and professional-grade footage.

Whether you're filming live events, lectures, or performances, the JVC KY-PZ540BU offers unparalleled precision and adaptability, making it an essential tool for any videographer seeking high-quality, dynamic content.

JVC KY-PZ540BU Features

  • YUV 4:2:2 12bit: HDMI output supports YUV 4:2:2 12bit and RGB 4:4:4 8bit
  • 4K 60p50p streaming to YouTube: You can stream 4K(2160p60) from KY-PZ540/N to YouTube
  • UVC (USB Video Class)
  • Multi-Camera synchronization with VITC and NTP
  • Save setup files: You can save the menu settings as a setup file on a PC
  • Still image capture
  • H.264/H.265/Motion JPEG and dual streaming
  • 2-color tally useful for studio shooting
  • 2x to 16x Digital Extender for additional magnification
  • The camera (Built-in NDI HX3) supports NDI 5 SDK version. NDI 5 support Reliable UDP (RUDP) transmission protocol. RUDP ensure reliability through retransmission with high-speed communication, such as UDP

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • 40x Full Resolution HD Zoom with JVC Variable Scan Mapping for seamless image transitions
  • 8.42MP 4K sensor for capturing stunning, high-quality visuals
  • Dynamic auto-tracking capabilities ensure smooth and professional-grade footage
  • Ideal for live events, lectures, and performances requiring precision and adaptability

What's in the box:

  • JVC KY-PZ540BU 8.42MP 4K 3G-SDI/HDMI/IP HEVC Auto-Tracking 40x PTZ Camera (Black)
  • Power Cable
  • RS232 Cable
  • IR Remote Controller
  • Ceiling Mount Bracket
  • AC/DC Adapter
  • User Manual
  • JVC 1 Year Limited Warranty (Extended 2 Year Warranty with Online Registration)
