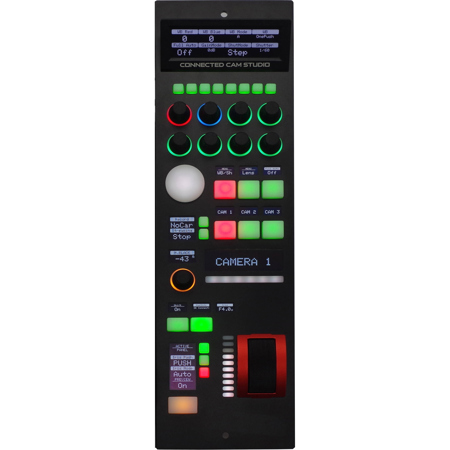

JVC RM-LP250 IP Remote Control Panel for GY-HC900 Series and GY-HC500 Series Camcorders, Controls Up to 8 Cameras

SKU: JVRMLP250M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What series of camcorders is the RM-LP250 IP Remote Control Panel compatible with?

The RM-LP250 IP Remote Control Panel is currently compatible with the GY-HC900 series camcorders. It is also planned to be upgraded in the future to support the GY-HC500 series.

How many cameras can the RM-LP250 IP Remote Control Panel control at once?

The RM-LP250 IP Remote Control Panel can control up to eight cameras simultaneously.

Does the RM-LP250 IP Remote Control Panel have customizable buttons?

Yes, the RM-LP250 IP Remote Control Panel features eight user-programmable buttons and most of the buttons can be customized via a web-based user interface.

What type of connection does the RM-LP250 IP Remote Control Panel use?

The RM-LP250 IP Remote Control Panel connects to your network using an Ethernet (RJ-45) connection.

Does the RM-LP250 IP Remote Control Panel have a display?

Yes, the RM-LP250 IP Remote Control Panel features a super crisp OLED window that provides a clear and large display of settings.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC RM-LP250 Specifications

  • Compatibility

    GY-HC900 Series and GY-HC500 Series Camcorders

  • Camera control

    RM-LP250M can connect x3 camera recorders

  • Interface

    RJ-45
    DB9 (EXT I/O) connector
    Firmware Upgrade via USB2.0

  • Network Interface

    The controller have a 100 Mbps network interface
    Network switch must have Auto-MDI/MDIX
    Network switch must support 100 Mbps

  • Power

    DC 12V, PoE (48V IEEE 802.3af )

  • Power consumption

    6W

  • Operating

    Temperature: 32 Degree - 107.6 Degree F (0 Degree - 40 Degree C)
    Humidity: 30% RH - 80% RH

  • Storage Temperature

    -4 Degree - 122 Degree F (-20 Degree - +50 Degree C)

  • Dimensions (W x D x H)

    4.02 x 14 x 2.83" (102.2 x 355 x 72mm)

  • Weight

    2.8 lbs (1.3kg)

  • UPC Code

    5714074002048

About JVC RM-LP250

For professional videographers and broadcast control room operators seeking a high-tech, user-friendly solution to manage multiple cameras, the RM-LP250 IP Remote Control Panel is an indispensable tool. Designed to seamlessly integrate with the GY-HC900 and GY-HC500 series camcorders, this intuitive control panel allows for the precise manipulation of up to eight cameras, ensuring that your production runs smoothly and efficiently.

The RM-LP250 boasts a robust set of features, including a super crisp OLED window that provides a clear and large display of settings. The panel's ergonomic design allows for an adjustable angle, ensuring optimal visibility and comfort during extended use. With eight user-programmable buttons and eight high-quality encoders featuring RGB backlighting, operators can easily identify and adjust functions on the fly.

The panel's versatility extends to its programmable pressure and direction-sensitive elastomer joypad, offering nuanced control over camera movements. Additionally, dynamic labeling is made possible with four-way buttons accompanied by OLED legends, adapting to the specific needs of each production.

Key functions such as recording and streaming are directly accessible through dedicated buttons, streamlining the workflow. A camera ID display with a tally bar provides clear visual communication for on-air status, while a master black knob with a dedicated OLED display ensures precise adjustment of image quality.

Iris control parameters are finely tuned with a dedicated encoder, and a 4-way button allows for quick preview toggling. The majority of the buttons on the RM-LP250 can be customized via a web-based user interface, allowing for a tailored control experience to meet the unique demands of your production.

The RM-LP250 connects effortlessly to your network using an Ethernet (RJ-45) connection, ensuring reliable and responsive control over your camera setup. With a durable build and an interface designed for both amateur and professional users, this remote control panel stands out as a versatile and intuitive solution for multi-camera control.

Note: The RM-LP250 currently supports GY-HC900 models, with a planned future upgrade to enhance compatibility with the GY-HC500 series, making it a forward-thinking investment for your production needs.

JVC RM-LP250 Features

  • IP Remote Control for up to three JVC CONNECTED CAM cameras
  • Iris control
  • Zoom + focus control (if lens supports it)
  • Master Black control
  • Gain Settings
  • AE Levels
  • Shutter mode and speed
  • WB Mode, WB One Push and WB Paint
  • Detail
  • Tally
  • Character Output Mix
  • Menu and Menu Navigation
  • Super crisp window with large display tiles for settings
  • High-quality encoders with RGB backlight for function identification
  • Camera ID display with OLED technology
  • RGB tally bar
  • Preview button for GPI or control of video router
  • Four-way buttons with OLED legends for dynamic labelling and functionality
  • Pressure and direction sensitive joystick pad
  • Master black knob with dedicated OLED display
  • Encoder wheel with display and LED bar
  • Industry standard form factor (4"/102mm wide)
  • Sits console style on table top or mountable in OB van rack

Key Features

  • Intuitive multi-camera control for GY-HC900 and GY-HC500 series camcorders
  • User-friendly interface with adjustable OLED display and programmable buttons
  • Eight high-quality encoders with RGB backlighting for easy function identification
  • Versatile elastomer joypad for precise camera movement control
  • Direct access recording and streaming buttons for efficient workflow management
  • Durable Ethernet (RJ-45) connection for reliable network integration

What's in the box:

  • RM-LP250 IP Remote Control Panel
  • Power Adapter with Power Plug
  • CAT.5E Ethernet Cable (6.56')
  • USB 2.0 Type A/Type Micro B Cable (3.28')
  • JVC 1 Year Limited Warranty
