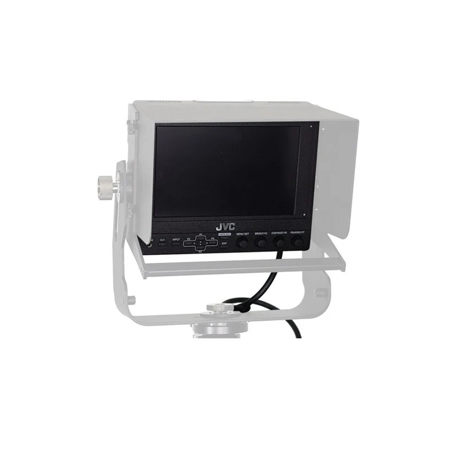

JVC VF-HP900 7" WUXGA Studio Viewfinder for GY-HC900CH Camera

SKU: JVVFHP900

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the VF-HP900 7" WUXGA Studio Viewfinder?

The VF-HP900 Studio Viewfinder features a high-resolution WUXGA display with a resolution of 1920x1200.

Can I control my camera directly from the VF-HP900 Studio Viewfinder?

Yes, the VF-HP900 Studio Viewfinder provides comprehensive camera control from its front panel controls.

What input options does the VF-HP900 Studio Viewfinder support?

The VF-HP900 Studio Viewfinder supports multiple input options, including 3G-SDI, HDMI, DVI, and composite inputs.

Does the VF-HP900 Studio Viewfinder support HDR workflows?

Yes, the VF-HP900 Studio Viewfinder adheres to the ITU Rec.2100 standard, supporting both HLG and PQ for HDR workflows.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC VF-HP900 Specifications

Panel
  • Panel size (diagonal)

    7" (17.78cm)

  • Panel resolution

    1920 x 1200 Pixels

  • Panel Aspect Ratio

    16 to 10

  • Panel surface glare / non glare

    Non glare

  • Panel Type LCD

    Yes

  • Back-light LED

    Yes

  • Brightness

    500 cd/ sq. m

  • Panel Bit depth

    8

  • Image Processing Bit depth

    8

  • Viewing angle H/V

    H 170 / V 170

  • Contrast Ratio

    1000:1

Items for EVF Monitors (MON)

Jump to...
  • EVF Type

    Studio Viewfinder (Direct-View via Lens/Eye or Studio Viewfinder)

  • Left/Right or Center use

    Center

  • View angle adjustable

    Yes

  • Mount Type

    Need SK-J900 Mount KIT

  • External Power

    Yes, DC 10,5V to 17V

  • Power via Camera

    Yes

  • Direct Remote control

    Yes (for Camera Operations)

  • Monitor Peaking

    Yes

  • Tally Light (EVF)

    Yes

  • Tally on/off switch

    Yes

  • SDI Return

    Yes

IN-OUTs Connections VIDEO

Jump to...
  • Input HD-SDI

    Yes, 3G

  • Number of HDSDI Inputs

    1

  • Input HDMI

    Yes

  • HDMI HDCP

    Yes

  • Loop out HD-SDI

    Yes, 3G

IN-OUT connections AUDIO

Jump to...
  • Headphone out

    Yes, 3.5 mm mini jack

  • Speaker integrated

    Yes

IN-OUT Connections Controls

Jump to...
  • USB Port

    Yes, USB 2.0 Type A for LUT Upload and Service

Supported Signal Formats

Jump to...
  • HDSDI/SD Signal Formats SMPTE-424M

    Yes

  • HDSDI/SD Signal Formats SMPTE-425M-A/B

    Yes

  • HDSDI/SD Signal Formats BTA S-004C

    Yes

  • HDSDI/SD Signal Format SMPTE-292M

    Yes

  • HDSDI/SD Signal Formats SMPTE-274M

    Yes

  • HDSDI/SD Signal Formats SMPTE-RP211

    Yes

  • HDSDI/SD Signal Formats

    Yes (DUAL-LINK or 3G SMPTE-372M-2002)

  • HDSDI/SD Signal Formats ITU-R BT656

    Yes

  • SDI Signal Formats SMPTE-259M

    Yes

  • HDSDI/SD Signal Formats SMPTE-125M

    Yes

  • Signal Format ITU BT601-7

    Yes

  • Signal Format SMPTE-299M

    Yes

  • Signal Format SMPTE-272M

    Yes

  • HDMI Format PAL/NTSC

    No

  • HDMI Format 1080 interlaced

    Yes

  • HDMI Format 720p

    Yes

  • HDMI Format 1080P plus

    Yes

  • HDMI Format 1080 psF

    Yes

Dedicate Functions

Jump to...
  • SDI Timecode

    Yes

  • R/G/B/Mono

    Yes

  • False color

    Yes

  • Zebra stripes display

    Yes

  • H/V delay

    Yes

  • Scan Modes

    4:3/16:9

  • Freeze frame

    Yes

  • Safety area markers

    Yes, 80%/88%/90%/93%/95%

  • Center Marker

    Yes

  • Scale Markers

    Yes, 4:3/16:9/14:9/16:9+4:3/2.35:1/166:1/175:1/1.85:1

  • Area Marker Visibility

    OFF, Line, Half, Half+Line

  • 3D-LUT

    Yes

  • 3D-LUT LOG Support for

    J-LOG, HLG, PQ

  • Function Keys

    7 Keys usable for different Features

  • Picture Flip modes

    Yes

  • Direct Brightness/Contrast/Color control

    Yes

Measurement and indication Tools

Jump to...
  • Waveform

    Yes

  • Vector-scope

    Yes

  • Histogram

    Yes

  • Audio Level Meter

    Yes

  • Audio Level Meter Channels

    16

Calibration and Color settings

Jump to...
  • Preset Color Temperature 9300K

    Yes

  • Preset Color Temperature 6500K

    Yes

  • Preset Color Temperature 5600K

    Yes

  • Preset Color Temperature USER

    Yes

  • Manual calibration of Color Temperature

    Yes (gain or/and cut-off)

  • Gamma Levels

    1,8 to 2,8

  • Adjustable Back-Light

    Yes

Power and Environment

Jump to...
  • Power DC

    Yes, Via Camera VF Cable or 4Pin XLR

  • DC Connector Type

    4 PIN XLR

  • Power consumption

    15 Watts

  • Operation Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Operation Humidity: (Non-Condensing)

    30% to 80%

  • UPC Code

    46838081491

About JVC VF-HP900

An essential tool for professional photographers and videographers, the VF-HP900 7" WUXGA Studio Viewfinder is specifically designed for seamless integration with the JVC GY-HC900CH Camera. This high-performance viewfinder connects effortlessly to the camera via a single multicable, providing a streamlined setup for studio configurations.

Boasting a 7-inch LCD panel, the VF-HP900 delivers WUXGA resolution of 1920x1200, ensuring crystal clear visuals for precise framing and focusing. This high-resolution display allows for direct camera setting adjustments on the LCD screen, offering photographers and videographers a convenient and efficient way to manage their shots.

The VF-HP900 Studio Viewfinder is not just about visual clarity; it also provides comprehensive camera control from its front panel controls. This feature allows for quick and easy adjustments, enhancing the user's control over their shooting environment.

Equipped with multiple input options, the VF-HP900 supports 3G-SDI, HDMI, DVI, and composite inputs, making it a versatile addition to any professional camera setup. Furthermore, it adheres to the ITU Rec.2100 standard, supporting both Hybrid Log Gamma (HLG) and Perceptual Quantizer (PQ), ensuring compatibility with the latest high dynamic range (HDR) workflows.

In summary, the VF-HP900 7" WUXGA Studio Viewfinder for GY-HC900CH Camera is a high-quality, versatile tool that enhances the functionality of your JVC camera, providing superior control and visual accuracy for professional-grade photography and videography.

JVC VF-HP900 Features

  • 7" LCD WUXGA (1920 x 1200), 8bit
  • HDMI signal input (HDCP-compatible, linear PCM): HDMI connector x1
  • Digital signal input (3G/HD/SD SDI, supports embedded audio):auto detection, BNC connector x1
  • Digital signal output (3G/HD/SD SDI, supports embedded audio): BNC connector x1
  • 26-pin connector (terminal used exclusively for camera: video, audio, power, control) x1
  • Controls the Camera System Menu
  • SK-J900 Mounting Kit
  • Supports 3D-LUT
  • Max 6 cube files
  • ITU REC2100 (HLG and PQ) Profiles
  • Supports JVC J-LOG LUT

Key Features

  • Designed specifically for seamless integration with the JVC GY-HC900CH Camera
  • Features a 7-inch LCD panel with high-resolution WUXGA display (1920x1200)
  • Allows direct camera setting adjustments on the LCD screen
  • Provides comprehensive camera control from its front panel controls
  • Supports multiple input options, including 3G-SDI, HDMI, DVI, and composite inputs
  • Adheres to ITU Rec.2100 standard, supporting both HLG and PQ for HDR workflows

What's in the box:

  • JVC VF-HP900 7" WUXGA Studio Viewfinder
  • VF Cable
  • User Manual
  • JVC 1 Year Limited Warranty
