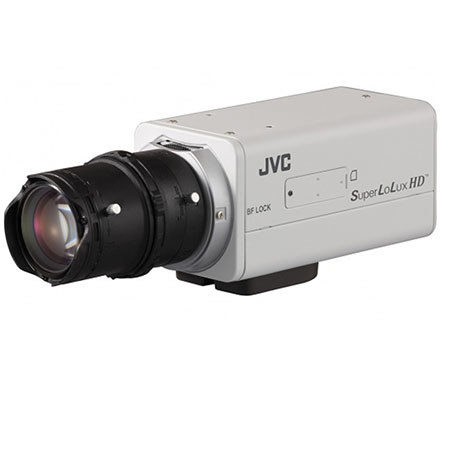

JVC VN-H37U 1080p Full HD Network Security Camera (Box Type, Less Lens)
See all JVC items

JVC VN-H37U 1080p Full HD Network Security Camera (Box Type, Less Lens), 2.2kOhms Impedance, PoE

SKU: JVVNH37U

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

JVC VN-H37U Specifications

  • Image sensor

    1/3" Square-Pixel Progressive Scan CMOS (elementary color filter)

  • Effective pixels

    Approximately 2,120,000 pixels
    1944 (H) x 1092 (V)

  • Lens mount

    CS mount

  • Minimum luminance of subject

    (F1.2, 50 %, AGC High, 1/30 s)
    Color: 0.3 lx (typ.)
    Black and White: 0.03 lx (typ.)

  • Monitor output

    75 Ohms, 1.0 Vp-p NTSC or PAL (switch selectable)

  • Network output: Image compression format

    JPEG, H.264 High Profile, H.264 Baseline Profile, MPEG-4

  • Network output: Frame size

    1920 x 1080
    1280 x 960
    1280 x 720
    640 x 480
    640 x 360
    320 x 240

  • Network output:Audio compression formats

    u-Law (64 kbps), AD/DA 16 bits, Fs = 8 kHz, monaural

  • Network output: Network interface

    RJ-45
    100BASE-TX/10BASE-T/FULL/HALF/Auto-negotiation enabled

  • Alarm record

    16MB

  • LAN standards

    Compliant with IEEE802.3, IEEE802.3u and IEEE802.3af

  • LAN standards: Communication protocol

    TCP/IP, UDP/IP, FTP, ICMP, ARP, DHCP, SNTP, HTTP, SMTP, RTP, RTSP, IPv4, IPv6, DSCP, HTTPS, SNMP

  • Power supply voltage

    PoE(DC-48 V)

  • Current consumption

    120 mA

  • Ambient temperature

    -10 to 50 deg. C / 14 to 122 deg. F (Operation)
    0 to 40 deg. C / 32 to 104 deg. F (Recommended)

  • Ambient humidity

    20 % RH to 90 % RH (without condensation)

  • Weight

    340g / 11.99oz (approx.)

About JVC VN-H37U

The JVC VN-H37U 1080p Full HD Network Security Camera (Box Type, Less Lens) is compatible with H.264, Motion JPEG and MPEG4. It is possible to output a dual stream of Motion JPEG and H.264 simultaneously. The VN-H37U outputs high-resolution Full HD images of up to 1920 x 1080p pixels.

Super LoLux HD Sensitivity
Super LoLux is JVC's original technology that ensures superior color reproduction even in extremely low light. The camera can produce rich color images in light as low as 0.3 lux (50% video level, without slow shutter).

Newly-developed C.L.V.I. embedded
Incorporates Clear Logic Video Intelligence, JVC original technology to offer superior wide dynamic performance and anti-fog capability.

ONVIF/PSIA support
Supports ONVIF and PSIA, world standard protocols for network cameras.

H.264 High Profile support
The H.264 High Profile offers even higher compression efficiency and precision than H.264 Baseline or Main Profiles used in ordinary cameras. High Profile enables distribution of high resolution images while saving even more bandwidth.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • JVC VN-H37U 1080p Full HD Network Security Camera (Box Type & Less Lens)
  • JVC 3 Year Parts and Labor Limited Warranty
