This item is no longer available.
The JVC VN-H57U is compatible with H.264, Motion JPEG, and MPEG4 video formats.
Super LoLux HD Sensitivity is JVC's proprietary technology that ensures superior color reproduction even in extremely low light conditions. It can produce rich color images in light as low as 0.3 lux.
Clear Logic Video Intelligence (C.L.V.I.) is a technology developed by JVC that offers superior wide dynamic performance and anti-fog capability. It ensures clear, unobstructed footage in any weather conditions.
Yes, the JVC VN-H57U supports ONVIF and PSIA, which are world-standard protocols for network cameras. This makes it easy to integrate with your existing security system.
H.264 High Profile offers even higher compression efficiency and precision than the H.264 Baseline or Main Profiles used in ordinary cameras. This enables the distribution of high-resolution images while saving even more bandwidth.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
1/3" Square-Pixel Progressive Scan CMOS (elementary color filter)
Approximately 2,120,000 pixels
1944 (H) x 1092 (V)
CS mount
(F1.2, 50 %, AGC High, 1/30 s)
Color: 0.3 lx (typ.)
Black and White: 0.03 lx (typ.)
75 Ohms, 1.0 Vp-p NTSC or PAL (switch selectable)
Mini-jack ( dia. 3.5 stereo R ch), can connect to a microphone that has a plug-in power system
DC 2.47 V(typ.)
2.2 kOhms (typ.)
Line OUT (200 Ohms, Max 1.9 Vp-p)
mini jack (dia. 3.5 stereo L ch)
JPEG, H.264 High Profile, H.264 Baseline Profile, MPEG-4
1920 x 1080
1280 x 960
1280 x 720
640 x 480
640 x 360
320 x 240
u-Law (64 kbps), AD/DA 16 bits, Fs = 8 kHz, monaural
RJ-45
100BASE-TX/10BASE-T/FULL/HALF/Auto-negotiation enabled
No-voltage a contact input, PNP open collector input, low level, latch/momentary (500 msec or longer) (1 mA circuit current at low level and 3.3 VDC applied voltage at high level)
NPN open collector-output (16 VDC safe excitation voltage and 30 mA allowable sink current)
16MB
Compliant with IEEE802.3, IEEE802.3u and IEEE802.3af
TCP/IP, UDP/IP, FTP, ICMP, ARP, DHCP, SNTP, HTTP, SMTP, RTP, RTSP, IPv4, IPv6, DSCP, HTTPS, SNMP
AC24 V 50 Hz/ 60 Hz, or PoE (DC-48 V)
AC24 V 0.5 A, or PoE 150 mA (7.2 W)
-10 to 50 deg. C / 14 to 122 deg. F (Operation)
0 to 40 deg. C / 32 to 104 deg. F (Recommended)
20 % RH to 90 % RH (without condensation)
360g / 12.7oz (approx.)

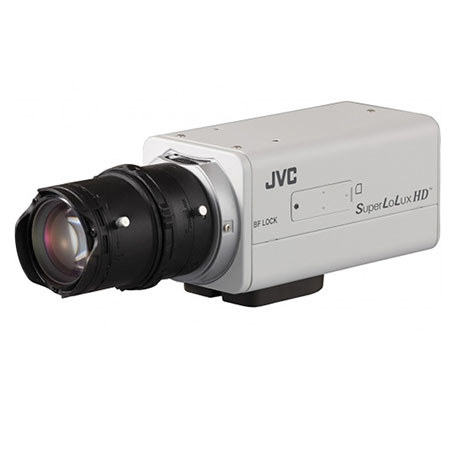

Become the guardian of your property with the advanced JVC VN-H57U 1080p Full HD Network Security Camera. This high-quality, box-type camera, designed without a lens, delivers crystal-clear, high-resolution images with its 1080p Full HD capabilities.
The VN-H57U is a versatile device, compatible with H.264, Motion JPEG, and MPEG4 formats. It boasts the ability to output a dual stream of Motion JPEG and H.264 simultaneously, ensuring seamless surveillance footage at all times. With a resolution of up to 1920 x 1080 pixels, this camera captures every detail with precision, making it an ideal choice for both indoor and outdoor security needs.
One of the standout features of this innovative security camera is its Super LoLux HD Sensitivity. This is JVC's proprietary technology that guarantees superior color reproduction, even in extremely low light conditions. With the ability to produce rich color images in light as low as 0.3 lux, this camera ensures that no detail goes unnoticed, regardless of the lighting conditions.
The VN-H57U also incorporates JVC's original Clear Logic Video Intelligence (C.L.V.I.) technology. This feature offers superior wide dynamic performance and anti-fog capability, ensuring clear, unobstructed footage in any weather conditions.
In terms of compatibility, this reliable and durable security camera supports ONVIF and PSIA, world-standard protocols for network cameras. This means it can easily integrate with your existing security system. Additionally, it supports H.264 High Profile, offering even higher compression efficiency and precision than the H.264 Baseline or Main Profiles used in ordinary cameras. This feature enables the distribution of high-resolution images while saving even more bandwidth.
In summary, the JVC VN-H57U 1080p Full HD Network Security Camera is a robust, advanced, and reliable solution for your security surveillance needs. Its high-quality imaging, low-light capabilities, and superior compression efficiency make it a standout choice in its category.
