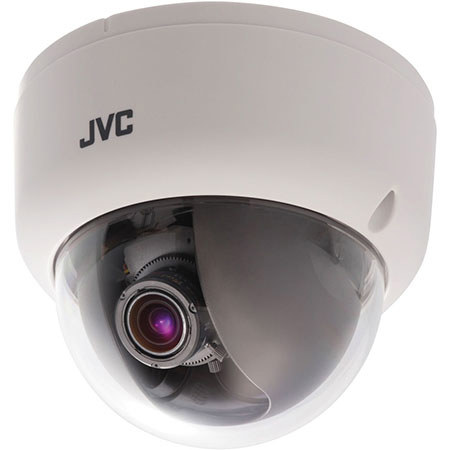

JVC VN-T216U 1080p Mini Dome IP Security Camera, PoE

SKU: JVVNT216U

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JVC VN-T216U Specifications

  • Image device

    1/2.7-type Mega-pixel CMOS sensor

  • Sensitivity

    Color: 0.6 lx
    Black/White: 0.6 lx (50%)

  • Day/Night

    Easy D/N

  • Auto Gain Control

    Off/On, selectable

  • Auto Iris Control

    AES (Automatic Electric Shutter)

  • White Balance

    ATW (2800K-8500K) and Manual

  • Electric Shutter

    PAL 1/25-1/10000 sec
    NTSC 1/30-1/10000 sec

  • Noise Reduction

    Yes

  • 3 Axis Gimbals

    Yes

  • Motion detection

    Yes

  • Lens Type

    1/3-type 3-9 mm
    F:1.2

  • BLC

    Yes

  • Audio

    Line in/out

  • Alarm

    1 in / 1 out (Alarm out spec: 0.5 A / AC 120 V max)

  • Video Compression

    H.264 & MPEG4 & MJPEG

  • Video Streaming

    Single Encode: 1080P (max.)
    Dual Encode: 720P + D1 (max.)

  • Resolution

    NTSC: 1080P(1920 x 1080), 720P(1280 x 720), D1(720 x 480), 4CIF(704 x 480), VGA(640 x 480), 640 x 360, CIF(352 x 240), QVGA(320 x 240)
    PAL: 1080P(1920 x 1080), 720P(1280 x 720), D1(720 x 576), 4CIF(704 x 576), VGA(640 x 480), 640 x 360, CIF(352 x 288), QVGA(320 x 240)

  • Image Frame Rate

    PAL: Up to 25 fps
    NTSC: Up to 30 fps

  • Security

    Multiple user access levels with password protection

  • Users

    1 Administrator, 5 users

  • Video Access from Web Browser

    Full control of all camera settings available to administrator

  • Minimum Web Browsing Requirements

    Windows XP or Windows 7 as OS, Internet Explorer Version 6.0-9.0
    CPU: Intel Pentium 4 2.4 GHz or equivalent AMD
    Memory: 1GB or above

  • Network interface

    RJ-45, 100BASE-TX/10BASE-T, FULL/HALF/Auto negotiation

  • Supported Protocols

    IPv4, Http, TCP, RTSP, RTP, ICMP, UDP, IGMP, RTCP, FTP, DNS, DHCP, ARP

  • Surveillance Protocol

    ONVIF Conformant

  • Onboard Storage

    SDHC (class 10 is recommended)

  • Power Supply

    PoE IEEE 802.3af Class 0, DC 12 V, AC 24 V

  • Power Consumption

    PoE 0.13 A, DC 12 V 550 mA

  • Connectors

    Power Input: removable terminal block
    Network: RJ45 connector
    Audio In/out: removable terminal block
    Alarm In/out: removable terminal block

  • Operating Temperature

    -10 to 50 deg.C / 14 to 122deg.F

  • Operating Humidity

    20 % to 90 % (without condensation)

  • Storage Temperature

    20 to 60 deg.C / 68 to 140deg.F

  • Dimension (Dia.)

    4.92 x 4.17" / 125 x 106mm

  • Weight

    17.28oz / 490g

About JVC VN-T216U

When it comes to maintaining security and surveillance, the JVC VN-T216U Mini Dome IP Security Camera stands out with its 1080p Full HD resolution. This compact yet powerful 2.2MP Easy Day/Night Indoor camera is designed to be vandal-resistant, ensuring durability and longevity.

The camera's Full HD Monitoring feature incorporates a 1/2.7-type Megapixel CMOS sensor, capable of capturing high-resolution images of up to 1920x1080 pixels. This ensures that every detail is captured with clarity, providing you with comprehensive surveillance coverage.

The VN-T216U is equipped with Multi Codec capability, supporting H.264 High Profile, MJPEG, and MPEG-4 formats. This flexibility allows for a dual stream of Motion JPEG and H.264 or MPEG4, offering versatility in video format selection based on your specific needs.

One of the standout features of this Mini Dome IP Security Camera is its H.264 High Profile support. This advanced feature offers higher compression efficiency and precision than the H.264 Baseline Profile or H.264 Main Profile typically found in ordinary cameras. This means that you can distribute high-resolution images while saving even more bandwidth.

The camera also supports ONVIF, the world standard protocols for network cameras, ensuring compatibility and seamless integration with your existing network infrastructure.

With its Power over Ethernet (PoE), 24VAC, and 12VDC power options, the JVC VN-T216U Mini Dome IP Security Camera offers flexibility in installation and operation. Moreover, its UL listing guarantees adherence to safety standards, providing you with peace of mind.

In summary, the JVC VN-T216U Mini Dome IP Security Camera is a robust and versatile solution for your security needs, delivering high-quality images while offering advanced features and compatibility.

JVC VN-T216U Features

  • 1080p Full HD resolution with 2.2MP CMOS sensor for crystal-clear surveillance footage
  • Vandal-resistant indoor mini dome design for enhanced durability in security applications
  • Multi Codec support including H.264 High Profile, MJPEG, & MPEG-4 for efficient video compression
  • ONVIF compatibility ensures seamless integration with existing network security systems
  • Dual streaming capability with Motion JPEG and H.264 or MPEG4 for flexible monitoring options
  • PoE/24VAC/12VDC power options for convenient and versatile camera installation

Key Features

  • 1080p Full HD resolution with 2.2MP CMOS sensor for crystal-clear surveillance footage
  • Vandal-resistant indoor mini dome design for enhanced durability in security applications
  • Multi Codec support including H.264 High Profile, MJPEG, & MPEG-4 for efficient video compression
  • ONVIF compatibility ensures seamless integration with existing network security systems
  • Dual streaming capability with Motion JPEG and H.264 or MPEG4 for flexible monitoring options
  • PoE/24VAC/12VDC power options for convenient and versatile camera installation

What's in the box:

  • JVC VN-T216U 1080p Mini Dome IP Security Camera
  • JVC 3 Year Labor and Parts Warranty
