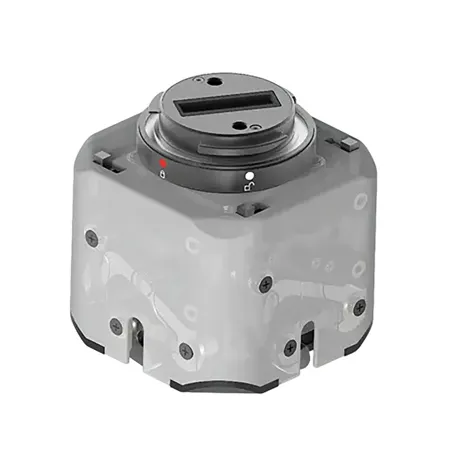

JZ UT4A Utility Drop Kit for DJI Matrice 400 and Matrice 350 RTK Drones

SKU: JZDK001201 MFR: JZ.DK.0012.01
Earn VIP Reward Points

Key Features

  • Achieve enhanced performance with this durable JZ UT4A Utility Drop Kit, perfect for DJI Matrice drones.
  • Experience perfect fit and easy installation on your DJI Matrice 400 or Matrice 350 RTK with this kit.
  • Enjoy great value with the lightweight design, ensuring optimal drone performance and payload delivery.
  • Effortlessly deploy payloads up to 13.23 lbs with the quick-release single-point drop function.
  • Control your drone accessories precisely using DJI Pilot 2 for seamless operational management.
  • Benefit from an IP4X protection level, ensuring robust performance in various operating temperatures.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

JZ UT4A Specifications

  • Color

    Black

  • Compatibility

    DJI Matrice 400, DJI Matrice 350 RTK Drones

  • Electrical interface

    T-Port

  • Maximum power consumption

    15W

  • Protection level

    IP4X

  • Compatible Models

    Matrice 400
    Matrice 350 RTK

  • Number of mounts

    4 paragraphs

  • Individual mounting weight

    Maximum 13.23 lbs (6kg), the actual aircraft load shall prevail

  • Gross vehicle weight

    Maximum 44 lbs (20kg), actual weight is subject to aircraft load

  • Drop-in function

    Single-point drop, one-key full drop

  • Installation method

    Quick-release

  • Flash color

    Red, green, blue, yellow, white

  • Alarm sound playback

    The alarm sound is played, and the alarm sound mode is switched

  • Operational control

    DJI Pilot 2

  • Maximum sound pressure at 1 meter

    110dB

  • Operating temperature

    14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Storage temperature

    -4 Degree F to 140 Degree F 9-20 Degree C to 60 Degree C)

  • Country of Origin

    China

  • Dimensions

    2.24 x 2.24 x 2.3" (57 x 57 x 59mm)

  • Weight

    6.28 oz (178g)

  • UPC Code

    6976509040592

About JZ UT4A

The JZ UT4A Utility Drop Kit features a built-in high-output siren and RGB full-color LED beads, integrating four-stage aerial delivery, alarm sounds, and strobe flashing into one compact module. Equipped with the JZ T-Port interface, it supports remote control via DJI Pilot 2 and offers five-color strobe warning lights (red, green, blue, yellow, white). Compatible with DJI Matrice 400 when paired with the JZ center-mounted single gimbal bracket, and with DJI Matrice 350 RTK when used with the OSDK payload bracket.

Mount Detection
Four mounting positions with real-time status display on DJI Pilot 2

Alarm Siren
Built-in high-output siren with 6 alarm sounds freely combinable with five strobe colors.

Strobe Warning
Supports five-color strobe flashing (red, green, blue, yellow, white).

Application Areas

Rescue
During disaster relief, emergency supplies can be rapidly dropped from the air, while strobe lights are activated to help trapped personnel quickly locate and respond.

Emergency
At the scene of an emergency, it can be hovered at high altitude for warning and guidance, and multi-colored flashing lights can be activated for warning, thereby improving the efficiency of emergency response.

Emergency rescue
In disaster relief missions, emergency rescue tools can be precisely airdropped, and safety passages can be marked using lighting and flashing lights. Voice-synchronized commands make ground rescue more efficient and coordinated.

Assure
In large-scale events or traffic control missions, aerial warnings and real-time reminders can be provided, combined with flashing alerts, to improve overall operational safety.

JZ UT4A Features

  • Four-stage aerial delivery system with built-in siren and RGB strobe lighting
  • JZ T-Port interface enables remote control through DJI Pilot 2
  • Supports five-color strobe warnings with red green blue yellow and white lights
  • Built-in high-output siren with six customizable alarm sound combinations
  • Real-time mount detection with four position status display in DJI Pilot 2

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve enhanced performance with this durable JZ UT4A Utility Drop Kit, perfect for DJI Matrice drones.
  • Experience perfect fit and easy installation on your DJI Matrice 400 or Matrice 350 RTK with this kit.
  • Enjoy great value with the lightweight design, ensuring optimal drone performance and payload delivery.
  • Effortlessly deploy payloads up to 13.23 lbs with the quick-release single-point drop function.
  • Control your drone accessories precisely using DJI Pilot 2 for seamless operational management.
  • Benefit from an IP4X protection level, ensuring robust performance in various operating temperatures.

What's in the box:

  • JZ UT4A Utility 4-Hook Drop
  • M400 Center Mounted Single Gimbal Bracket
  • User Manual
  • JZ 1 Year Limited Warranty
