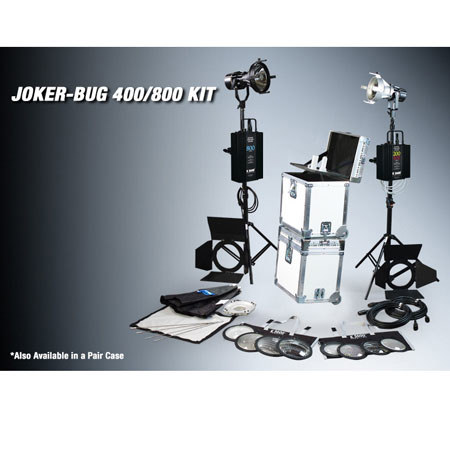

K 5600 Joker-Bug 400 / 800 Combination PAR Lamp Head Complete Kit, with Two Single Cases, AC Only.

Joker-Bug 400

The Joker-Bug 400 combines the characteristics of the BUG-LITE 400, a 400 Watt daylight HMI system without optic with those of the Joker 400, a PAR 46 fixture using a specular parabolic reflector and a set of 4 lenses. The Joker-Bug 400 is comparable to a 1500/2000W quartz fixture but with a power draw of only 5.5 Amps.

In the Bug-Lite mode (no optics) the main application is in traditional Lightbanks as well as Lanterns where it uses the sides as a large reflector, collecting the maximum output of the lamp and filling the front screen very evenly. It is very powerful in daylight interiors and can operate in any position including pointing straight down. The BEAMER optical accessory turns the BUG-LITE into a Joker-Bug, a directional PAR unit offering various beam patterns through quick lens changes.

The Joker-Bug 400 offers the most flexible optical configuration for location lighting by achieving Spot to Flood ratios of 80 to 1 with beam angles ranging from 5 degrees to 55 degrees. The Joker-Bug 400 is delivered with a Clear Glass Beaker when reaching for full intensity is important and a Frosted Glass Beaker when light quality is the prime concern.

The 400W MSR lamp was selected for its size/weight and the sizes/weights of the components needed to operate it. The MSR lamp with its GZZ 9.5 base is considerably smaller than the next traditional Wattage, the 575 (G22 base). The shorter arc gap of the 400 makes up for the difference of output between 400 and 575 and the lower Wattage does not require forced air cooling of the power supply.

Joker-Bug 800

The Joker Bug 800 represents a natural step for K 5600, an extension of its line of HMI daylight fixtures. After the enormous popularity of the 200 and the 400, the full f-Stop increment seemed logical. Another determining factor for the creation of this particular fixture size is the main power limitations associated with the location shooting.

The next size up (1200W) monopolizes a full circuit where as the Joker Bug 800 will allow for another source such as a 400 while delivering twice the output of that 400. The Joker Bug 800 is comparable to a 3200/4000 quartz fixture but with a power draw of only 12.5 Amps. In the Bug-Lite mode (no optics) the main application is in traditional Lightbanks as well as Lanterns where it uses the sides as a large reflector, collecting the maximum output of the lamp and filling the front screen very evenly.

It is very powerful in daylight interiors and can operate in any position including pointing down. The BEAMER optical accessory turns the BUG-LITE into a Joker Bug, a directional PAR unit offering various beam patterns through quick lens changes. The Joker Bug 800 offers the most flexible optical configuration for location lighting by achieving Spot to Flood ratios 55 to 1 with beam angles from as narrow as 5 degrees to as wide as 45 degrees.
