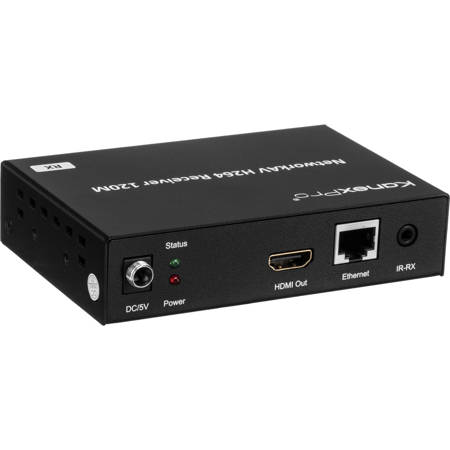

KanexPro NetworkAV H.264 HDMI over IP Receiver, 394' Transmission Distance

SKU: KAAVIPH264RX MFR: EXT-AVIPH264RX
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 394 feet with this reliable H.264 HDMI over IP Receiver.
  • Enjoy versatile control with IR and RS232, perfect for remote management of your devices.
  • Experience seamless streaming with low latency, ideal for live events and digital signage.
  • This HDMI receiver supports up to 1080p at 60Hz, ensuring high-quality video output for displays.
  • Integrate easily into existing networks; supports IGMP and DHCP for simple configuration changes.
  • Compact design fits discreetly into any setup, making this receiver a perfect AV connectivity solution.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?RICHARD T : We have dozens of these all over our network and they work very well.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro NetworkAV Receiver Specifications

  • Protocol

    H.264 encoder over TCP/IP

  • Support Video format

    480i/480p/576i/576p/720p/1080i/1080p at 60HZ

  • Support Audio format

    LPCM, Audio sampling rate 48KHZ

  • Streaming Bit Rate

    15Mbps

  • HDCP

    Compliant

  • IR Frequency

    38 -56 KHZ

  • RS232 Baud rate

    Default 2400bps, total 8 options

  • Default IP

    RX: 192.168.1.12

  • Group ID

    Group 00 - group 63

  • Request for Switch/Router

    Support IGMP, support DHCP

  • Input

    1x RJ45 input

  • Output

    1x HDMI Female port looping output

  • RS232

    Phoenix RS232 port

  • IR

    IR TX port (Support 38K-56KHz)
    IR Ext port (Support 38KHz)

  • Supported Input Resolutions

    Frequency at 50Hz: 576i, 576P, 720P, 1080P, 1080i Resolutions
    Frequency at 60Hz/59.94Hz: 480i, 480P, 720P, 1080P Resolutions
    Frequency at 30Hz/29.97Hz: 1080P
    Frequency at 24Hz: 1080P
    Frequency at 25Hz: 1080P

  • VESA Resolutions

    Frequency at 50Hz: 576i, 576P, 720P, 1080P, 1080i Resolutions
    Frequency at 60Hz/59.94Hz: 480P, 720P, 1080P Resolutions
    Frequency at 30Hz/29.97Hz: 1080P
    Frequency at 24Hz: 1080P
    Frequency at 25Hz: 1080P

  • Operating temperature

    -5 to 35 deg. C (23 to 95 deg. F)

  • Operating Humidity Range

    5 to 90%RH (No Condensation)

  • Power supply

    DC 5V 1A

  • Power consumption

    Max 3 watt

  • Dimensions

    119 x 79.5 x 28mm (4.69 x 3.13 x 1.10")

  • Weight

    0.28kg (0.62 lbs)

  • UPC Code

    813982021204

About KanexPro NetworkAV Receiver

A cutting-edge solution for high-definition audio and video transmission, the KanexPro EXT-AVIPH264RX NetworkAV H.264 HDMI over IP Receiver is a DHCP-enabled device that effortlessly integrates with your existing Ethernet setup. Leveraging the power of advanced H.264 compression technology, this receiver transmits full HD 1080p signals from HDMI-based displays over a LAN network, ensuring optimal quality with minimal bandwidth usage.

Designed for maximum reach, the KanexPro EXT-AVIPH264RX supports Power over Ethernet (PoE) and can transmit signals over a single CATx cable up to a distance of 394 feet (120 meters). This feature allows for versatile broadcasting modes including one-to-one, one-to-many, and many-to-many configurations over an Ethernet switch.

The receiver is capable of decoding and extending pure 1080p resolutions up to 394 feet, offering real-time AV coding and decoding to broadcast 1080p. It's also compatible with DVI connections, providing additional flexibility for your setup.

The dual power input feature is 802.3af compliant with PoE and DC 5V, eliminating the need for a separate power source when connected through a PoE network switch. This receiver can also be cascaded to multiple extenders for larger network configurations.

The KanexPro EXT-AVIPH264RX supports the LPCM audio format and features a smart IP address setting with Dynamic Host Configuration Protocol (DHCP). It also includes a wide-band IR pass-through for source control (38khz to 56khz) and bi-directional UART/RS232 (up to 115200), allowing you to select 8 group Baud rates using a remote controller.

Ideal for digital signage and networked AV applications, this receiver delivers full audio, video, power, data, and control using a single Ethernet cable. Please note that Power over Ethernet will be supported only with a PoE-enabled network switch. Experience seamless, high-quality AV transmission with the KanexPro EXT-AVIPH264RX NetworkAV H.264 HDMI over IP Receiver.

KanexPro NetworkAV Receiver Features

  • Advanced H.264 compression technology for full HD 1080p transmission over LAN networks
  • Supports PoE and transmits up to 394 feet over a single CATx cable
  • Offers versatile broadcasting modes including one-to-one, one-to-many, and many-to-many configurations
  • Compatible with DVI connections and supports LPCM audio format
  • Features smart IP address setting with Dynamic Host Configuration Protocol (DHCP)
  • Ideal for digital signage and networked AV applications, delivering full AV, power, and data over a single Ethernet cable

Key Features

  • Extend HDMI signals up to 394 feet with this reliable H.264 HDMI over IP Receiver.
  • Enjoy versatile control with IR and RS232, perfect for remote management of your devices.
  • Experience seamless streaming with low latency, ideal for live events and digital signage.
  • This HDMI receiver supports up to 1080p at 60Hz, ensuring high-quality video output for displays.
  • Integrate easily into existing networks; supports IGMP and DHCP for simple configuration changes.
  • Compact design fits discreetly into any setup, making this receiver a perfect AV connectivity solution.

What's in the box:

  • KanexPro NetworkAV H.264 HDMI over IP Receiver
  • IR-RX Cable
  • IR Extension Cable
  • Screws
  • Detachable Mounting Ears
  • Phoenix Plugs for RS232 Cable Termination
  • Remote Controller
  • Manual
  • KanexPro 2 Year Limited Warranty
