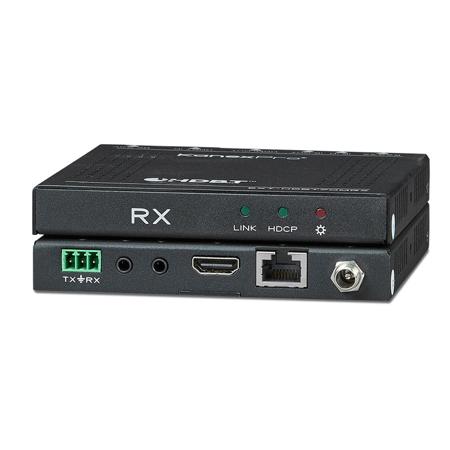

KanexPro EXT-HDBT70MRX UltraSlim 4K/30 HDMI Receiver over HDBaseT
See all KanexPro items

KanexPro EXT-HDBT70MRX UltraSlim 4K/30 HDMI Receiver over HDBaseT, 230' Transmission Distance

SKU: KAHDBT70MRX MFR: EXT-HDBT70MRX
Be the first to review this itemAsk a Question
$262.45
OR
$44/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 230ft with this UltraSlim HDBaseT HDMI Receiver.
  • Enjoy crystal-clear 4K/30 video with HDBaseT technology for superior HDMI extension.
  • Control your devices remotely using the integrated IR and RS232 pass-through feature.
  • This HDMI receiver supports HDMI 1.4 and HDCP 2.2 for seamless compatibility.
  • Compact design ensures the UltraSlim receiver fits discreetly into any setup location.
  • Reliable HDMI extension with a bandwidth of 10.2Gbps for high-quality video transmission.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$79.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?BRADLEY G : Replacing a like model.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

KanexPro EXT-HDBT70MRX Specifications

  • Input Signal

    1x IR; 1x RJ-45; 1x RS232

  • Input Connector

    1x 3.5mm mini jack; 1x RJ-45; 1x 3p captive screw connector

  • Output

    1x HDMI, 1x IR, 1x RS232

  • Output Connector

    1x HDMI female; 1x 3.5mm mini jack;x 3p captive screw connector

  • Resolution Range

    640x480 at 60Hz - 4Kx2K at 30Hz

  • Transmission Mode

    HDBaseT

  • Transmission Distance

    1080p <= 70m; 4Kx2K <= 40m

  • Bandwidth

    10.2Gbps

  • HDMI Standard

    Support HDMI1.4 and HDCP2.2

  • Impedance

    75Ohms

  • Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Humidity

    10% - 90%

  • External Power Supply

    Input: 100VAC-240VAC, 50/60Hz
    Output: DC 24V, 1.25A

  • Power Consumption

    14W (Max)

  • Dimensions (WxHxD)

    115 x 16.2 x 109mm (4.53 x 0.64 x 4.29")

  • Weight

    196g (6.91 oz)

  • UPC Code

    813982021372

About KanexPro EXT-HDBT70MRX

The KanexPro EXT-HDBT70MRX is an HDCP 2.2 compliant receiver - extender consisting of one HDMI output one Ethernet input and IR + RS-232 controls. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at up to 70/40m. Moreover, EXT-HDBT70M supports CEC, bi- directional RS232 & IR control and bi-directional PoH (power over HDBaseT) function.

• UltraSlim point-to-point HDMI Receiver over HDBaseT
• Extend full HD 1080p up to 70m
• Extend 4K/30 up to 40m
• Supports Ultra HD 4K at 30Hz resolutions &
• Video resolutions from 1080p/60 at 48bit
• Bi-directional PoH (power over HDBaseT)
• Bi-directional RS-232 & IR control
• HDCP 2.2 and EDID compliant
• Bandwidth 10.2 Gbps
• IR input/output - embedded over CATx extension
• Dolby TrueHD & DTS Master Audio ready
• Supports uncompressed audio - LPCM
• One locking power supply included
• Backed by KanexPro 3-year parts and labor warranty

Applications
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.

Note

Use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HDMI signal up to 230ft with this UltraSlim HDBaseT HDMI Receiver.
  • Enjoy crystal-clear 4K/30 video with HDBaseT technology for superior HDMI extension.
  • Control your devices remotely using the integrated IR and RS232 pass-through feature.
  • This HDMI receiver supports HDMI 1.4 and HDCP 2.2 for seamless compatibility.
  • Compact design ensures the UltraSlim receiver fits discreetly into any setup location.
  • Reliable HDMI extension with a bandwidth of 10.2Gbps for high-quality video transmission.

What's in the box:

  • KanexPro EXT-HDBT70MRX UltraSlim 4K/30 HDMI Receiver over HDBaseT
  • 2x Receiver Mounting Ears
  • 4x Mounting Screws
  • 4 x Plastic Cushions
  • RS232 Cable
  • IR Receiver
  • User Manual
  • KanexPro 3 Year Parts & Labor Warranty
