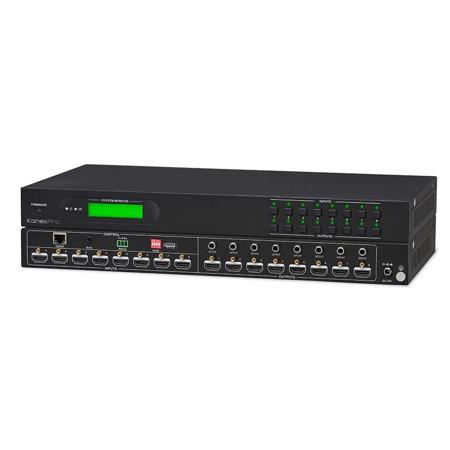

KanexPro Ultra-Fast 8x8 HDMI Matrix Switcher with 4K/60Hz
See all KanexPro items

KanexPro Ultra-Fast 8x8 HDMI Matrix Switcher with 4K/60Hz

SKU: KAHDMX8818G

This item is no longer available.

Recommended Alternatives

KanexPro SW-HDSC51HDBT: Picture 1 regular
KanexPro SW-HDSC51HDBT HDBaseT Seamless Presentation Switcher & Scaler
$1,574.95
KanexPro HDMI Card: Picture 1 regular
KanexPro Flexible One Input 4K HDMI Card with Audio
$367.45
KanexPro HDBaseT Card: Picture 1 regular
KanexPro Flexible One Input 4K HDBaseT Card with Audio
$629.95
KanexPro HDMI card: Picture 1 regular
KanexPro Flexible 1-Output HDMI Card with De-Embedded PCM Audio
$451.45
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

KanexPro Switcher Specifications

  • Input Impedence

    75Ohms

  • Input Level

    T.M.D.S. 2.9V/3.3V

  • Input Signal

    8 HDMI

  • Input Connector

    Female Type-A HDMI

  • Output Level

    T.M.D.S. 2.9V/3.3V

  • Output Impedence

    75Ohms

  • Output Signal

    8 HDMI; 8 SPDIF audio

  • Output Connector

    Female Type-A HDMI; 3.5mm mini jack

  • Control Signal

    1 IR IN; 1 TCP/IP; 1 RS232

  • Control Connector

    3.5mm mini jack; female RJ45; 3-pin pluggable terminal block

  • Video Signal

    HDMI2.0 & HDCP2.2

  • Audio Signal

    Dolby Digital, DTS, DTS-HD

  • EDID Management

    In-built EDID data and manual EDID management

  • Resolution Range

    640x480 at 60Hz - 4Kx2K at 60Hz 4:4:4, 1080P 3D

  • HDMI Cable Length

    <=5m

  • Power Supply

    24VDC, 2.71A

  • Power Consumption

    Full load: 32W
    Standby: 2.2W

  • Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Reference Humidity

    10% - 90%

  • Gain

    0 dB

  • Bandwidth

    18Gbps

  • Maximum Pixel Clock

    165MHz

  • Supported Resolutions

    4K: 4096x2160 (30,50,60 Hz), 3840x2160 (24,25,30 50 60 Hz)
    21:9: 2560x1080 (60Hz)
    16:9: 1920x1080(1080P 3D), 1600x900, 1366x768, 1280x720, 1024x576 (60Hz)
    16:10: 1920x1200, 1680x1050, 1440x900, 1360x768, 1280x800 (60Hz)
    4:3: 1600x1200, 1400x1050, 1280x1204, 1024x768, 800x600, 640x480 (60Hz)

  • Switching Speed

    200ns (Max.) 0-2 seconds

  • Consumer Electronics Control (CEC)

    Supports CEC via infrared data pass-through

  • EDID and DDC Management

    Built-in EDID data and manual management via DIP Switch and Display Data Channel (DDC) data using DVI and HDMI standards, EDID and DDC signals are actively bufferred.The built-in EDID/DDC database can analyze these two signals, mix them, and realize the handshake internally

  • HDCP Management

    Compliant with High-bandwidth Digital Content Protection (HDCP 2.2) using HDMI 2.0 standards. The built-in HDCP management technology can analyze HDCP key authentication, and realize handshake internally

  • Digital Audio Output

    Supports HDMI audio transmitted through the RGB and Y, Cr, Cb lines, actively buffered
    Supports De-embedded SPDIF audio via digital coaxial output

  • Serial Control Port

    RS-232, 9-pin female D connector

  • IR Remote

    Default IR remote

  • Ethernet (RJ-45)

    TCP/IP control via Ethernet Controller & Web Based GUI

  • Dimensions (WxHxD)

    437 x 44 x 236.5mm (17.20 x 1.73 x 9.31")
    1U high, full rack wide

  • Weight

    4.32 lbs (1.96kg)

  • UPC Code

    813982021396

About KanexPro Switcher

The KanexPro HDMX88-4K is a professional 8-input, 8-output HDMI matrix featuring HDCP 2.2 with the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K at 60Hz. This matrix switcher supports switching speeds to less then 0.2 seconds and also provides 8-additional audio ports via S/PDIF connectors to support audio de-embedding from HDMI. It can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix using graphical and visual indicators right from the computer or touch-panel.

• Cross-switch 8HDMI inputs to 8 HDMI outputs with 4K at 60Hz
• Eight independent S/PDIF audio for Audio De-embedding from HDMI
• Distribute 4Kx2K at 60Hz signal up to 15m
• Supports standard 1080p & WUXGA resolutions up to 2560x1080 at 60Hz
• HDCP 2.2 Compliant
• Smart EDID DIP switch for proper display output
• Supports latest High Speed HDMI Specifications
• Supports Dolby Digital, DTS, DTS-HD
• Control thru front-panel keys, IR, RS-232 & Web based GUI
• Front-panel LCD screen provides real-time I/O connection status
• Expedient firmware upgrade thru Micro USB port
• 1U (19") rack mountable aluminum enclosure
• Universal RS-232 code compatible with any 3rd party control systems
• Locking HDMI & Power supply
• Internal Universal power for worldwide compatibility

Industry Standard HDCP 2.2 & 4K
HDCP 2.2 authentication is present at all times on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160 at 30, 50 or 60Hz, 3840x2160 at 24, 25,30, 50 or 60Hz and 2560x1080 at 60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.

Applications
The KanexPro HDMX88-4K matrix switcher is ideal for numerous commercial applications such as military, medical and government audio-video environments, where swift, reliable switching and distribution of high-resolution HDMI signal is critical to meet pixel-by-pixel needs.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • KanexPro Ultra-Fast 8x8 HDMI Matrix Switcher
  • 2x Mounting Ears
  • 6x Screws
  • 4x Plastic Cushions
  • RS232 Cable (3-pin to DB9)
  • IR Receiver
  • IR Remote
  • Power Adaptor(DC 24V 2.71A)
  • User Manual
  • KanexPro 3 Year Limited Warranty
