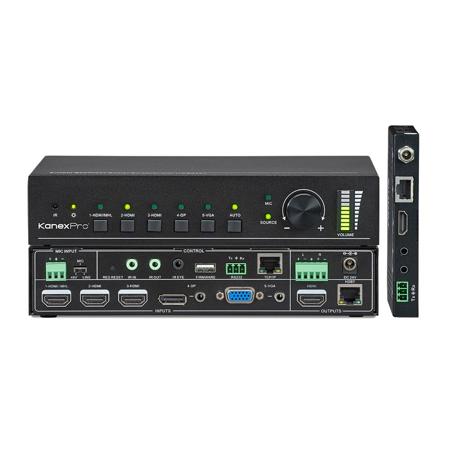

KanexPro SW-HDSC51HDBT HDBaseT Seamless Presentation Switcher & Scaler with 5 Inputs

SKU: KAHDSC51HDBT MFR: SW-HDSC51HDBT
Earn VIP Reward Points

Key Features

  • Seamlessly switch between HDMI, DisplayPort, and VGA sources with this video switcher.
  • Extend your HDMI signal up to 70m with HDBaseT, perfect for large conference rooms.
  • Enjoy high-resolution video output up to 1920x1200 for crisp, clear presentations.
  • Control the presentation switcher via IR, RS232, or TCP/IP for ultimate flexibility.
  • Scale video signals effortlessly, ensuring compatibility with various display types.
  • Use the built-in microphone input for clear audio during presentations and meetings.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro SW-HDSC51HDBT Specifications

  • Additional Item Includes

    2x 3-Pin Phoenix Connectors
    5-Pin Phoenix Connector
    IR Emitter
    IR Receiver (With Carrier Wave)
    User Manual
    KanexPro 3 Year Limited Warranty

  • Video input

    1x HDMI/MHL
    2x HDMI
    1x DP
    1x VGA

  • Video Input Connector

    3 female HDMI
    1x DisplayPort
    1x female VGA (15-pin)

  • Input Video Signal

    HDMI, DP, YPbPr, C-video, VGA

  • Video Output

    1x HDMI
    1x HDBaseT

  • Video Output Connector

    1x female HDMI
    1x RJ45

  • Output Video Signal

    HDMI,HDBaseT

  • Output Resolution

    1920x1200, 1920x1080, 1600x1200, 1600x900, 1360x768, 1280x800, 1280x720, 1024x768

  • Standards

    Compliant with HDMI 1.4 & HDCP2.2

  • Audio Input

    1x stereo audio input for DP
    1x stereo audio input for VGA
    1x Microphone audio

  • Audio Input Connector

    2x 3.5mm Stereo jacks
    1x 3-Pin phoenix connector

  • Audio Input Impedance

    >10k Ohms

  • Audio Output

    1x Dual-Mono analog audio

  • Audio Output Connector

    1x 5-Pin phoenix connector

  • Audio Output Impedance

    70 Ohms

  • Frequency Response

    20Hz-20K Hz

  • Stereo Channel Separation

    >80dB at 1KHz

  • Control port

    1x IR IN
    1x IR OUT
    1x IR EYE
    1x RS232
    1x TCP/IP

  • Control Connector

    3x 3.5mm mini jack
    1x 3-Pin phoenix connectors
    1x RJ45

  • Transmission Distance

    1080p<=70m(Cat6)

  • Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Humidity

    10% - 90%

  • Power Supply

    DC24V, 2.71A

  • Power Consumption

    27W

  • Dimensions (WxHxD)

    8.6 x 1.7 x 6.8" (21.84 x 4.32 x 17.27cm)

  • Weight

    1.76 lbs (0.80kg)

  • UPC Code

    813982021402

About KanexPro SW-HDSC51HDBT

The KanexPro SW-HDSC51HDBT is a seamless switcher with 5-inputs (3 HDMI, 1 DP &1 VGA), with one local HDMI output and one HDBaseT output designed to switch and scale up to 5 devices to one or more displays (mirrored). It supports instant seamless switching from one device to another with zero latency no matter what its connected to. Fully compliant with the latest HDCP 2.2 specs, this switcher supports CEC commands and EDID management. The output of the switcher can be extended with via PoH (power over HDBaseT) to up to 230 feet. (70m) with the receiver included in the system.

• Seamlessly switch & scale 5-video inputs to 2-outputs using HDBaseT & HDMI
• Auto-switching enabled
• HDBaseT output extends CAT5e/6 distance up to 230 feet (70 meters)
• Includes HDBaseT receiver with PoH support
• Built-in Audio De-embedder for HDMI & VGA inputs
• Selectable output resolutions supported: 1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768
• HDCP 2.2 compliant & CEC
• VGA video supports C-video, YPbPr and VGA
• 48V phantom power for condensers
• MIC port supports balanced/unbalanced signal, suppresses external noise effectively
• 3-level MIC input for use with: condenser, dynamic & wireless microphones
• Bi-directional IR & RS232 control
• Controllable via buttons, IR remote, RS232 & Web-based GUI
• Includes IR remote
• Powerful OSD function

The switcher can be controlled using one IR input, one IR output & one RS-232 port, the IR & RS-232 signals can be broadcasted bi-directionally between the seamless scaler-switcher and the HDBaseT receiver. In addition, the switcher can also be controlled via web-based GUI,front panel buttons, RS 232 commands and through IR remote.

Applications
Ideal for use in lecture halls, boardrooms and conference room set-ups where DisplayPort and HDMI based laptops and other devices can be used for fast switching & scaling with legacy video formats such as VGA to one or more displays over HDBaseT up to 70 meters.

Key Features

  • Seamlessly switch between HDMI, DisplayPort, and VGA sources with this video switcher.
  • Extend your HDMI signal up to 70m with HDBaseT, perfect for large conference rooms.
  • Enjoy high-resolution video output up to 1920x1200 for crisp, clear presentations.
  • Control the presentation switcher via IR, RS232, or TCP/IP for ultimate flexibility.
  • Scale video signals effortlessly, ensuring compatibility with various display types.
  • Use the built-in microphone input for clear audio during presentations and meetings.

What's in the box:

  • KanexPro SW-HDSC51HDBT HDBaseT Seamless Presentation Switcher & Scaler with 5 Inputs
  • 2x Mounting Ears with 4 Screws
  • 2x Long Mounting Ears with 6 Screws (Optional)
  • Power Adapter (24VDC/2.71A)
  • 4x Plastic Cushions
  • IR Remote
  • VGA Converting Cable (VGA to YPbPr)
  • HDBaseT Receiver
  • 2x Mounting Ears with 4 Screws for HDBaseT Receiver
  • 4x Plastic Cushions for HDBaseT Receiver
  • RS232 Cable (3-Pin Phoenix Connector to DB9) (See Specs for more Item includes)
