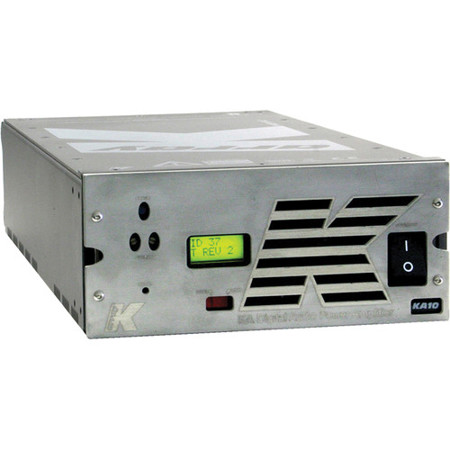

K-Array KA10-10 4-Channel Class-D Power Amplifier with DSP and Remote Control
See all K-Array items

K-Array KA10-10 4-Channel Class-D Power Amplifier with DSP and Remote Control, 500W/Channel at 4 Ohms

SKU: KAKA1010PC

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

K-Array KA10-10 Specifications

  • Max power 4 Ohms

    4 x 500 w

  • Max power 8 Ohms

    4 x 260 w

  • Connectors

    2 x 4-pin Speakon

  • Speakon 1 wiring

    pin 1+,1- = CH1
    pin 2+, 2- = CH3

  • Speakon 2 wiring

    pin 1+,1- = CH2
    pin 2+ 2- = CH4

  • Slew Rate 8 Ohms

    50V/uS

  • S/N Ratio

    >105 dB/A

  • Distortion (THD, DIM,SMPTE)

    <0.5%

  • Input impedance

    20K bal. 10K unbal

  • Gain

    32 dB

  • Output

    Unbalanced to ground

  • Bandwidth

    10 Hz - 30 KHz

  • Damping Factor 8 Ohms (100Hz)

    >500

  • Thermal protection

    Yes

  • Short circuit / over-load

    Yes

  • Clip limit, Analog signal limit

    Yes

  • Audio Input: Connectors

    2 x M + 2 x F bal. 3-pin XLR

  • Audio Input: Wiring

    1=gnd 2=hot 3 = cold

  • Remote control Input: Connectors

    2 x female 8-pin RJ45

  • Remote control: Protocol

    RS485 - V2 software

  • Power Input: Connectors

    2 x PowerCon IN/OUT

  • Operating range

    100-120 Vac 60Hz

  • I. nom

    3.6 A / 115 Vac - 2.2 A 230 Vac

  • Operation voltage

    Minimum: 95 Vac - 195 Vac
    Maximum: 125 Vac - 205 Vac

  • Max continuous and burst current

    12A(>10s) - 24A(<1s)

  • Dimensions

    7.87 x 3.46 x 17.52" / 19.98 (1/2 U rack) x 8.78 (2U rack) x 44.50cm

  • Weight

    10.58lbs / 4.79kg

About K-Array KA10-10

The K-Array KA10-10 professional rack amplifier line has been designed to give answers to all the needs of touring and installation applications in which a large amount of power is needed together with the maximum flexibility, over low sizes and weight. The sophisticate electronics on-board allow to reach outstanding output power levels with over-high efficiency.

DSP on-board can provide perfect signal processing for all K-array products, providing safe working conditions and a large choice of dedicated presets to solve the most parts of the needs of high-end applications. A dedicated remote control ensures a constant connection with all the units, allows the total management of the presets installed and the possibility of the download of new ones.

K-Array KA10-10 Features

  • Very light weight
  • Compact design, 2 rack units per 4 channels
  • Optical limiters
  • Electronically protected
  • Over-high efficiency
  • Management software
  • Top quality components for outstanding performance
  • Aluminum frame

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • K-Array KA10-10 4-Channel Class-D Power Amplifier with DSP and Remote Control
  • 2 x Rack Adapters
  • 2 x XLR Neutrik Cable
  • Lan Cable & 8 Poles Cat5
  • Adjustment Pen Screwdriver
  • Software & Utilities CD
  • User's Manual
  • K-Array 2 Year Warranty
