Review Summary
30Hz-20kHz (Acoustics)
112 dB continuous - 118 dB peak (Acoustics)
Horizontal: 90deg.
Vertical: 10-60deg. (digitally controlled)
Type: DSP controlled
Frequencies: 200Hz
Analog connectors: 1 x XLR parallel input
Connectors: 1x USB
Connectors: 1x 4-pin Speakon (2-channel power out to mid-high)
Connector: 1x VDE power plug
Type: 1 modules class D - DSP controlled
Power to mid-high: 125W x 2 channels (250W total)
Power to sub: 250W
Protection: Dynamic limiter, over current, over temp, short circuits
Stage monitor
Front fill
Live event
Music and speech reinforcement
Portable AV
Operating Range: 85 - 132 Vac 50 Hz (Auto-switching)
170 - 264 Vac 60 Hz (Auto-switching)
I. Nom.: 2 A / 115 Vac - 1 A / 230 Vac
Peak Power: 660 W / 120ms max
12.8 x 70-86 x 17.13" / 32.51 x 177.8-218.44 x 43.51cm
47.4lbs / 21.50kg

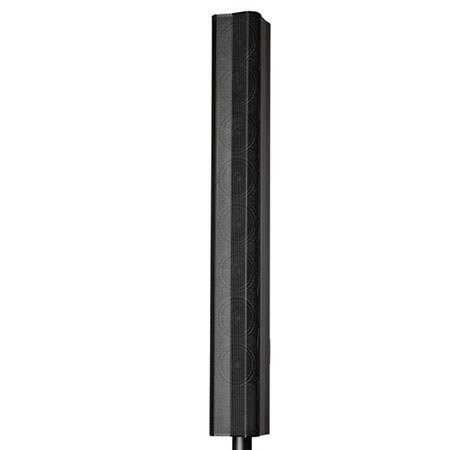

The BlueLine KB1R system is not another plastic lollipop speaker on a stand. A 12" subwoofer for bass and eight 3.15" loudspeakers for medium-high frequencies assure elevated performance, preserving the timbre and quality of instruments and voices. The powered bass speaker serves as the foundation both musically and physically. At less than 13" wide there are no tripod legs to trip on. The top speaker is a true line array element that provides smooth and even coverage of the audience area even at distance. It is visually elegant and does not obscure sight lines to the stage.
Compactness, lightweight design and transportability mark the KB1R and make it easy to integrate into a musician's kit. It is equipped with a carrying case that enables loading and unloading even with small hatchbacks. The bass speaker is protected by a padded cover designed to insulate the sub from bumps and scratches. The designers of the KB1R have chosen materials commonly used for products of a professional quality. Plastic materials have been deliberately avoided in order to preserve the resilience required for professional use. Aluminum, wood and steel have been chosen to forge the BlueLine, perfectly matching the characteristic qualities of the K-array brand. It is no surprise that K-array has developed a product that is easy to transport and quick to set-up.
