K-Array KF12MT 12" Full Range Multi-Purpose Powered Speaker, Single
See all K-Array items

K-Array KF12MT 12" Full Range Multi-Purpose Powered Speaker, 1000W Power, 55-19kHz Frequency Range, Single

SKU: KAKF12MT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

K-Array KF12MT Specifications

  • Speaker power

    800 + 200 W(AES)

  • Frequency range (-10 dB)

    55 - 19 kHz

  • Sound Pressure Level (SPL) 1W/1mt

    99 dB

  • Maximum Sound Pressure Level (SPL)

    127 dB Continuous
    133 dB Peak

  • Coverage

    Horizontal: 70 deg.
    Vertical 70 deg.

  • Crossover

    Type: Internal Passive Crossover

  • Transducer Type

    Coaxial Transducer: 12" Neodymium magnet woofer with 3" voice coil

  • Audio Input

    Analog connectors: 2 male + 2 female 3-pin balanced XLR
    Analog connectors 2 male + 2 female 3-pin balanced XLR

  • Remote Control Input

    1 male + 1 female XLR parallel / 1 USB B Jack serial converter

  • Audio Power Output

    Connector:1 x Female 4-pin Speakon
    Wiring: Pin1+= CH1+ Pin1- = CH1- Pin2+= N.C. Pin2= N.C.

  • Power Input

    2 x PowerCon IN/OUT

  • Amplifier

    Type: 1 module class D - DSP controlled
    Nominal power output: 2 X 1050 W at 8 Ohms 1% THD + NOISE(3)
    Protection: Dynamic Limiter, Over Current, Over Temp. Short Circuit
    Frequency response: 10 Hz - 25 KHz (+/- 3 dB) for 1W at 8 Ohms
    Damping factor 8 Ohms, 100 Hz: > 500
    THD+N 1KHz, 1 W: 0.010%
    Thermal dissipation: 1/8 of max output power at 8 Ohms = 282 BTU/h (71KCal/h), 1/4 of max output power at 8 Ohms = 464 BTU/h (117KCal/h)

  • AC Power

    Nominal voltage : 115 / 230 Vac auto switching
    Operating range: 85 - 130 Vac 60Hz / 190 - 240 Vac 50Hz (Auto Switch)
    I. Nom: 5.5 A / 115 Vac - 2.9 A / 230 Vac

  • Consumption

    Efficiency: >80% (typical)
    1/8 rated power (pink noise) at 4 Ohms: 410W

  • Certification

    IP 20

  • Dimensions

    39 x 52.2 x 36.5cm (15.37 x 20.55 x 14.38")

  • Weight

    41.45lbs (18.8Kg)

About K-Array KF12MT

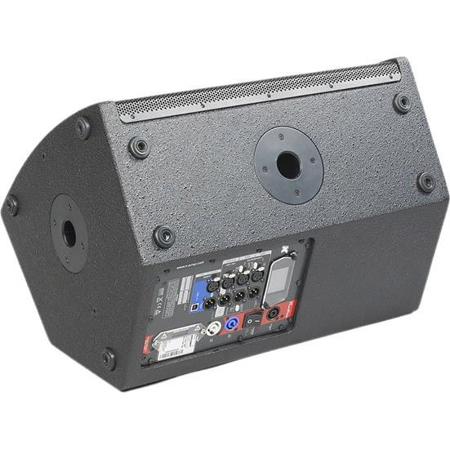

The K-Array KF12MT Full-Range Multi-Purpose Powered Speaker is a 12" coaxial full range multi-purpose powered speaker. The KF12MT's integrated on-board touch screen with matrix control provides intuitive managing and editing of powerful DSP control. Additional functionalities include: a delay up to 400ms, parametric filters for room eq, 2 analog + 2 digital inputs in AES/EBU, routing options, USB and Serial connections for remote control and a full range powered output of 1000W on 8 Ohms.

Using one powered and one passive KF12 speaker a stereo system can be configured with 2 analog or digital fully independent inputs. It is ideally used as a stage monitor due to its wedge shape and as a stereo system. This portable speaker is housed in a black wood chassis and black steel grill.

K-Array KF12MT Features

  • Unique performance-to-size ratio
  • Symmetrical horizontal and vertical coverage
  • Angled cabinet for floor monitor use
  • Integrated 35mm pole adapters for different uses
  • Integrated DSP with multiple analog and digital inputs
  • On-board touch screen with matrix control
  • Configurable full range powered output
  • RS485 and USB connectivity for remote control

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Unique performance-to-size ratio
  • Symmetrical horizontal and vertical coverage
  • Angled cabinet for floor monitor use
  • Integrated 35mm pole adapters for different uses
  • On-board touch screen
  • Configurable full range powered output

What's in the box:

  • K-Array KF12MT 12" Full Range Multi-Purpose Powered Speaker
  • K-Array 1Year Limited Warranty
