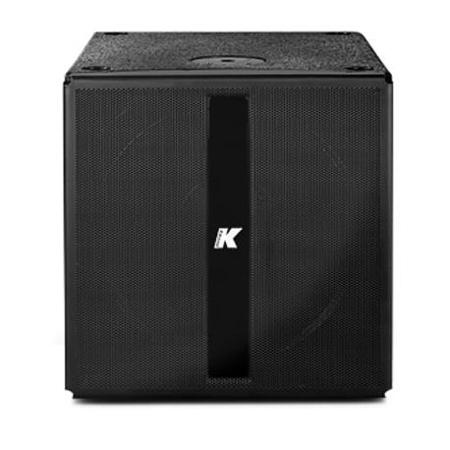

K-Array 18" Powered Subwoofer with DSP and Power Output, 1400W Max Power

The K-array KMT18 I is a full-featured audio systems featuring a powered 18" subwoofer, programmable onboard DSP and multiple analog and digital inputs and outputs for creating a wide array of speaker configurations. The amplifier mounted on board is class D, delivering 2 x 1000 W at 8Ohms. The KMT18 I features an integrated touch screen, providing intuitive control over the main DSP functions: input/output levels, signal routing, offset delays for subwoofer and speakon output (up to 10 ms each) and overall system delay (up to 330 ms). All DSP functions, including EQ, can also be remote controlled via software over USB or RS485 (3-pin XLR). The KMT series provides two balanced analog line level inputs and a two-channel AES/EBU digital input.

• Unique performance-to-size ratio
• Fitted with integral handles and castors
• Direct radiating, long excursion 18" driver
• Ultra fast set-up and dismantling system
• Analog and digital AES-EBU inputs
• RS485 and USB connectivity for remote control

An integrated class D amplifier delivers 2 x 1000 W at 8Ohms, with a max THD of 1% (EIAJ test at 1kHz). The KMT18 I features multiple analog and digital outputs, including a Speakon output to connect a wide array of passive speakers including mid-high modules (KP52, KP102) or additional passive subwoofers (KMT18P). To optimize performance, the on-board DSP includes presets to drive K-array speakers. The KMT series' unique four-corner port configuration provides symmetrical back loading to the speakers, for extended bass response with very low distortion.

The port configuration also provides incredible structural strength to the cabinet, despite its light weight. Pocket handles and an M20 thread mount position for attaching mid-high speakers makes the KMT series convenient to use and ideal for medium throw applications in theaters, concert halls and Audio/Video installations. All KMT components are designed by K-array and custommade under K-array's quality control system.

Applications
• Theatrical sound reinforcement
• Concert halls, clubs, houses of worship
• Portable and installed audio-visual systems
• Cinema and special effects
• Optimized for KK52, KK102 or KMT18P
