K-Array KO40 Self Powered 21" High Power Subwoofer, 8 Ohms Impedance, 25Hz - 150Hz, 136dB Continuous/140dB Peak Sound Pressure Level, 4000W

SKU: KAKO40

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

K-Array KO40 Specifications

  • Acoustics: Speakers Power Handling

    2000W

  • Acoustics: Max Power

    4000W

  • Acoustics: Impedance

    8Ohms

  • Acoustics: Frequency Range

    25Hz - 150Hz

  • Acoustics: SPL 1W/1mt

    96.5dB

  • Acoustics: Maximum SPL

    136dB continuous - 140dB peak

  • Coverage

    Omni

  • Cross over: Type

    DSP controlled

  • Cross over: Frequency

    DSP dependent: 150Hz suggested

  • Transducers

    1x 21" Neodymium speakers with 6" voice coil

  • Audio Input: Connectors

    1x male + 1x female parallel 3-pin balanced XLR

  • Audio Input: Wiring

    Pin1 = ground / Pin2 = hot (+) / Pin3 = cold (-)

  • Remote Control Input: Connectors

    2x female 8-pin RJ45

  • Power Input: Connectors

    2x PowerCon IN/OUT

  • Amplifiers: Type

    Class D - DSP controlled

  • Amplifiers: Power

    4000W at 8Ohms

  • Amplifiers: Protection

    Dynamic limiter, over current, over temp, short circuits

  • AC power: Operating Range

    Auto range: 85-270 Vac 50-60 Hz with PFC

  • AC power: P. nom

    900 VA

  • AC Power: Power factory

    1/2 max out/8Ohms: 0.90

  • AC Power: Minimum Operation Voltage

    70V AC

  • AC Power: Maximum Operation Voltage

    400V AC

  • Dimensions

    23.62 x 23.62 x 33.46" / 59.99 x 59.99 x 84.99cm

  • Weight

    92.59lbs / 42kg

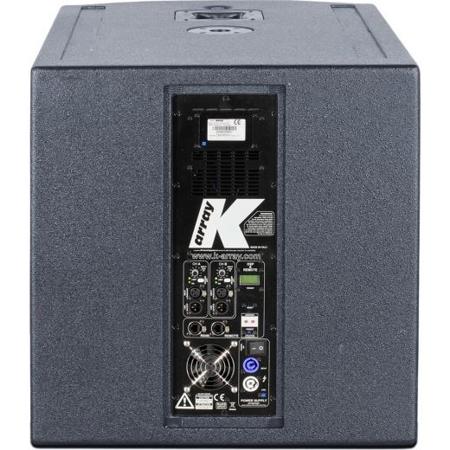

About K-Array KO40

The K-Array KO40 is a self-powered, Sub Bass speaker system. It is best suited for high-power extended bass response applications in arenas, theatres, concert halls, churches and outdoor events. The 21" speaker employ neodymium magnets and 6" voice coils driven by powerful D-class amplify ers. The large ports are designed to be fully symmetrical to the speakers, which means the back loading on the drivers is consistent and even with no port air turbulence. The triangle port construction also provides excellent structural integrity and strength, effectively eliminating any box resonance.

This is an effective companion sub to the KH4 and KH15 powered mid-high speaker systems. When used with the KS4 bass element the combination becomes a very effective, directional bass system with a prodigious output. An internal DSP module provides control presets. Dedicated software allows for remote control of the speaker from a PC. All the components are designed by the K-array R&D department and custom made under the K-array quality control system.

K-Array KO40 Features

  • Unique performance-to-size ratio
  • Self powered
  • Integrated DSP and remote control
  • Very fl at profi le
  • Integrated flying and stacking hardware
  • Top quality components for outstanding performance
  • For use in combination with other K-array systems
  • Medium and large scale events
  • Touring sound reinforcement

What's in the box:

  • K-Array Self Powered 21" High Power Subwoofer
  • K-Array 1 Year Limited Warranty
