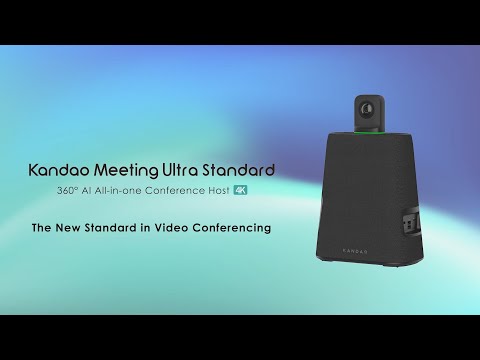

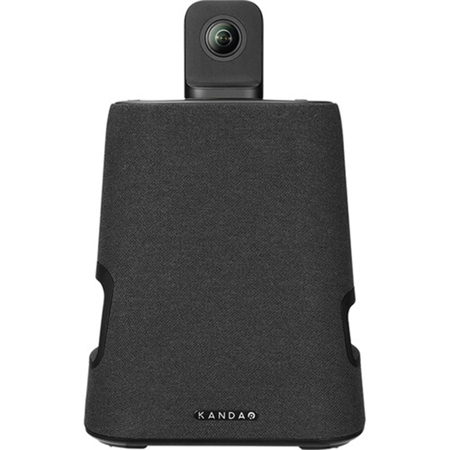

Kandao Meeting Ultra Standard 4K 360 Degree AI Conference Camera

Innovative Tool for Hybrid Collaboration

360-Degree Field of Vision

360 Degree Fully Covered for Equal Conferencing
Fully cover the entire meeting room and capture in 360 degrees with two ultra-high-definition fisheye lenses. Capture from the center of lenses instead of the edge to avoid poor image quality. Perform clearly with fine details through intelligent noise reduction, wide dynamic range, exposure compensation, and auto white balance.

Smart Tracking

Follow the Speaker
With AI motion detection algorithm, the speaker is smartly tracked and auto-framed. No need to sit fixed in front of the camera, the speaker can stand up and walk around to give a presentation.

CPU, GPU and NPU

Get a Real-Time Feedback
A seamless conversation is achieved with powerful CPU, GPU, and NPU through stable transmission, precise human-face and voice detection, and low-latency tracking of whoever is speaking.

• 8-core CPU
• 4-core GPU
• 6-Tops NPU

Algorithm 4.0

AI Speaking Person Detection Algorithm 4.0
Kandao Meeting Ultra features an upgraded AI Detection Algorithm 4.0 which can accurately localize and auto-frame the local meeting attendees, especially the active speaking person in ultra-low latency with 15-degree ultimate recognition. The active speaker is always highlighted and placed in the center focus for remote participants.

• AI 4.0 Detection Algorithm
• 15 degree ultimate recognition

Speaker and Microphones

Your Idea is Well Conveyed and Heard
Kandao Meeting Ultra has a full-duplex audio system composed of an eight-omnidirectional microphone array and a 10 Watt Hi-Fi speaker. This not only ensures a wide 5.5-meter-radius voice pickup range but also premium sound quality output for conveying clear messages in remote meetings.

• 8 microphones
• 10 Watt Hi-Fi speaker
• 5.5m radius voice pickup

Ambient Noise Cancellation
Even in noisy surroundings, voice can be well-conveyed with a brand-new AI noise reduction algorithm. Without affecting the clarity and quality of voices, it cancels distracting noises such as keyboard typing, car honking, doors opening and closing, chairs moving, pen clicking, and noise from other equipment, creating a focused meeting environment.

What Makes it Unique

Image Quality

Meeting Ultra Clear 4K with HDR
Wave goodbye to blurred image quality. Kandao Meeting Ultra output streams at 4K 30FPS HDR video to get rid of over-exposed images even when conferencing near windows. The built-in noise reduction algorithm creates vivid and clear hybrid meeting experiences like never seen before.

• +100% Acquisition Clarity
• +300% Output Resolution

Android OS

Built-in Operation System
Kandao Meeting Ultra Standard has a built-in Android OS with a friendly user interface where users can download video conferencing software directly onto the device, creating a perfect solution for hybrid collaboration.

Two Modes to Use

Multiple Choices for Setup and Placement

USB mode
Connect Meeting Ultra to your computer with a USB cable to start a hybrid collaboration with auto-framing.

Standalone mode
It's a total conferencing solution with dual 4K lenses, a built-in operation system, two touch screens, an eight-microphone array, a Hi-Fi speaker, and dual 4K lenses. You are all set for a meeting.

HDMI IN and Out - Share Your Screen through HDMI

HDMI IN
Connect your computer to Kandao Meeting Ultra through HDMI IN to share your computer screen.

Display in Different

Two HDMI Out
Supports HDMI outputs to two external screens, so everyone can see clearly in a large space. The screens on the device and external screens can display differently to share screens while managing the meeting.

Screen Mirroring

One-Step Screen Mirroring from Multi-Type Devices
Get rid of messy wires with built-in screen mirroring. Supporting Airplay and Miracast protocol means users can share screens from iOS devices, MacOS devices, Android devices, and Windows-system devices.

Adapt to Different Conference Situation

Conference Mode

Smart Conference Modes
Kandao Meeting Ultra has three discussion modes for multi-attendee framing, main-speaker focusing, and all-attendee displaying. The panorama on top is optional to show all attendees. Under Gallery View and Speaker View, it can automatically adjust the view according to the detected number of attendees.

Speaker View
This discussion mode has seven boxes with a panorama on top. Six of those boxes show attendees separately while highlighting the speaking person in a larger box on the left.

Gallery View
Al algorithm selects up to a maximum of eight speakers and reframes them to equally show attendees. The panorama on top is optional.

Global View
Two 180-FOV (field of vision) panoramas are recorded by the two 195-degree lenses showing all attendees while minimizing distortion.

Manual Conference View Adjustment
Highlight a specified speaker by manually panning the main split-screen and zooming in after view-locking.

Optional Panorama on Top
The panorama on top is optional for showing all attendees.

Setup an Ignore Zone
You can mark an Ignore zone and adjust their range to disable auto-framing.

Conferencing with Your Platform of Choice
Zoom, Tencent Meeting, GotoMeeting, Skype, Teams, BlueJeans, DingTalk, Slack, Polycom, StarLeaf, Google Meet, Cisco Webex, and more.

Guarantee Your Data Security
Kandao Meeting Ultra does not store or transmit any user's private information or behavior data. The AI algorithm is entirely local and offline, with no online settings.

• Address Security: Do not store IP address and location
• Leave No Trace: Support one-step log out
• Prevent Information Leakage: Do not provide an open API
• Bluetooth Toggle: Bluetooth is available to be turned off

Interfaces and Connection Ports
Kandao Meeting Ultra Standard has several interfaces and connection ports for different requirements. It has two HDMI-out, an HDMI-in, Wi-Fi, a RJ45 network port, and USB ports. It is flexible enough to adapt to various office space.

What's More

Remote Controller
Users can power off the device through the remote controller, switch video conferencing software, change conference views, turn up/down volume, mute, or start local video recording.

Network Connection
From a connectivity standpoint, it can connect to any 5G hotspot to truly allow users to have conference meetings anywhere or connect through LAN for a ultra-low latency hybrid collaboration.

• Wi-Fi 6 5GHz 1Gbps Ethernet

Auto Power On
It can be set up to auto-start once plugged into the AC outlet. It's convenient for controlling a hard-to-reach device.
