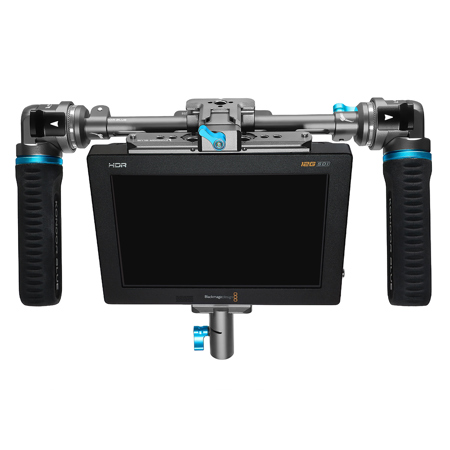

Kondor Blue Director's Monitor MKII Pro Kit, Space Gray

SKU: KBDMPK2 MFR: KB-DMPK2
Earn VIP Reward Points

Key Features

  • Robust monitor cage rail system offers versatile mounting for your on-camera monitor setup.
  • Pro V-Mount battery plate powers your monitor & accessories, extending your shooting time.
  • Utilize the core bracket for a stable & secure monitor mounting, ensuring optimal viewing.
  • PPSH 15mm rod supports various accessories, enhancing your video monitor's functionality.
  • Rosette grips provide comfortable, adjustable control for precise monitor positioning.
  • Baby pin adapter allows quick & easy mounting of your director's monitor to stands.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kondor Blue Directors Monitor MKII Specifications

5" Monitor Cage Rail

5" Monitor Cage Rail

Jump to...
  • Mounting

    1x NATO Rail
    Bottom: 1x 1/4"-20 Screw
    Top: 2x ARRI Anti-Twist
    Top: 4x 1/4"-20 Threaded Holes

  • Length

    5" (12.7cm)

  • Weight

    1.8 oz (51g)

2" Monitor Cage Rail

Jump to...
  • Mounting

    1x NATO Rail
    Bottom: 1x 1/4"-20 Screw

  • Length

    2" (5.1cm)

  • Weight

    0.9 oz (25g)

Core Bracket

Jump to...
  • Weight

    3.5 oz (100g)

Battery Plate

Jump to...
  • Material

    Aluminum

  • Power Output

    Coaxial: 12 VDC
    Coaxial: 8 VDC

  • Camera Power Method

    Battery Plate Mount Type

  • Inputs/Outputs

    2x D-Tap
    2x USB-C
    2x 2.1mm Coaxial

  • Plate Front / Battery Mount

    V-Mount

  • Number of Battery Bays

    1

  • Indicator

    LED

  • Dimensions

    43.3 x 32.3 x 17.7" (110 x 82 x 45cm)

  • Weight

    15 oz (425g)

  • Material

    Aluminum

  • Thread Type

    Female / Female

  • Thread Size

    12mm

  • Diameter

    15mm

  • Length

    8" (20.3cm)

  • Weight

    1.3 oz (37g)

15mm Rosette Single Rod Clamp

Jump to...
  • Clamp Type

    Pipe

  • Jaw Shape

    Round

  • Mounting

    Accessory Mount: 1x Rosette with Proprietary Female Thread

  • Clamping Range

    0.6" (15.2mm) Diameter Pipe/Pole (Each)

  • Rosette diameter

    1.25" (31.8mm)

  • Thread size

    M6 female

  • Weight

    1.75 oz (50g)

Pro Pivot Rosette Grips

Jump to...
  • Material

    Rubber, Stainless Steel

  • Rotation

    Yes

  • Built-In Controls

    No

  • Attachment Method

    Attaches via 2x Built-In Rosette

  • Accessory Mounting

    1x ARRI Anti-Twist 3/8"-16 Thread

  • Shoe Mounting

    No

  • Rosettes

    1x ARRI Rosette w/ M6 Thread (per Handgrip)

  • Rail Mounting

    No

  • Dimensions

    6 x 1.6 x 1.3" (152 x 41 x 34mm) (Each)

  • Weight

    8 oz (229g) (Each)

Adapter

Jump to...
  • Mounting

    Light/Accessory Mount: 1x 5/8" Receiver

  • Dimensions

    2 x 1 x 0.8" (50 x 26 x 20mm)

  • Weight

    1.5 oz (44g)

  • UPC Code

    5068650000000

About Kondor Blue Directors Monitor MKII

Enhance your filmmaking experience with the Director's Monitor MKII Pro Kit in Space Gray, a sophisticated evolution of the KONDOR BLUE Director's Monitor Indie Kit. This comprehensive kit is designed for versatility and ease of use, ensuring that your monitor setup is both secure and adaptable to various shooting environments.

The 5" Monitor Cage Rail is a key component, offering the flexibility to be mounted on either the top or bottom of your monitor. This rail is compatible with NATO accessories, allowing you to attach handles, clamps, and articulating arms effortlessly. With interchangeable Anti-Twist Locator Pin inserts, it supports a wide range of popular monitors, including SmallHD, PortKeys, Atomos, Blackmagic, and Feelworld. The included 1/4"-20 mounting screws and hex wrench make installation straightforward, while the modular design ensures easy customization and quick disassembly for transport.

Central to this kit is the Core Bracket, which emphasizes speed and versatility. This NATO bracket features ARRI and Rod mounts, making it ideal for attaching a V-Mount Battery Plate. It can be mounted from either the top or bottom of the monitor and is compatible with the Kondor Blue Mini V-Mount Plate and Monitor NATO Rails. The bracket includes multiple accessory mounts, such as a cold shoe and ARRI mounts, and integrates seamlessly with the Kondor Blue D-Tap Hub. The built-in 3mm hex tool adds convenience, while the dual 15mm rod clamp prevents monitor sag, ensuring stability during shoots.

The Pro V-Mount Battery Plate is engineered for professional use, offering a variety of power output options, including dual-direction D-Tap ports and USB C PD ports capable of 100W power delivery. Its aluminum construction ensures durability, while the magnetic power contacts and pivoting clamp provide flexibility in mounting. The plate's compact design accommodates micro-sized batteries, making it a perfect fit for modern, lightweight setups.

Included in the kit is the 8" PPSH 15mm Rod, crafted from aerospace-grade aluminum for unmatched strength and lightness. This rod is ideal for mounting accessories like follow focus systems, matte boxes, and lens supports. It can be extended with M12 Rod Extension Connectors, allowing for further customization.

The 15mm Rosette Single Rod Clamp enhances your setup by converting any 15mm rod end to an ARRI rosette, facilitating the attachment of EVFs or monitors. Its toolless connection and standard ARRI rosette design ensure ease of use and compatibility with a wide range of accessories.

The Pro Pivot Rosette Grip is a standout feature, offering 30 adjustment positions and compatibility with both left and right orientations. Its ergonomic rubber design provides comfort and grip, while the 60-tooth ARRI style rosette ensures secure attachment. The grip's anti-twist mount and strap loop add to its functionality, making it an essential tool for any filmmaker.

Finally, the Baby Pin 5/8" Spigot Receiver to NATO Clamp Adapter expands your setup possibilities. This versatile clamp can be used with light stands and C-Stands, offering a secure hold with its wide 16mm/5/8" clamp. Whether you need to mount a director's monitor or set up an overhead rig, this adapter provides the flexibility and security required for professional filmmaking.

With the Director's Monitor MKII Pro Kit, you gain a robust, adaptable, and professional-grade solution for your monitoring needs, enhancing your production capabilities on set.

Kondor Blue Directors Monitor MKII Features

  • Modular 5" & 2" Rails: Fits most monitors; NATO-compatible for easy accessory mounting
  • Core Bracket: NATO clamp, dual 15mm rod mount, and multiple accessory mounts for versatility
  • Pro V-Mount Plate: Dual D-Tap, USB-C PD ports, 12V/8V outputs, and magnetic expansion module contacts
  • 8" PPSH 15mm Rod: Lightweight aerospace aluminum for follow focus, matte box, and more accessories
  • 15mm Rosette Clamp: Converts 15mm rods to ARRI rosette with tool-free attachment and adjustable angle
  • Pro Pivot Rosette Grip: 30 adjustable positions, left/right compatible, ergonomic rubber grip for control
  • Baby Pin to NATO Adapter: Versatile clamp for light stands, C-Stands, and creative setups

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Robust monitor cage rail system offers versatile mounting for your on-camera monitor setup.
  • Pro V-Mount battery plate powers your monitor & accessories, extending your shooting time.
  • Utilize the core bracket for a stable & secure monitor mounting, ensuring optimal viewing.
  • PPSH 15mm rod supports various accessories, enhancing your video monitor's functionality.
  • Rosette grips provide comfortable, adjustable control for precise monitor positioning.
  • Baby pin adapter allows quick & easy mounting of your director's monitor to stands.

What's in the box:

  • 5" Monitor Cage Rail
  • 2" Monitor Cage Rail
  • Pro V-Mount Battery Plate
  • Core Bracket
  • 8" PPSH 15mm Rod
  • 2x 15mm Rosette Single Rod Clamp
  • 2x Pro Pivot Rosette Grip
  • Baby Pin 5/8" Spigot Receiver to NATO Clamp Adapter
  • Kondor Blue Lifetime Limited Warranty
