Kondor Blue Ultimate Rig for Sony FX3, Space Gray

SKU: KBSFX3UR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kondor Blue Ultimate Rig Specifications

Cage
  • Color

    Space Gray

  • Compatibility

    Sony FX3

  • Support Type

    Cage

  • Grip Type

    None

  • Battery Plate Type

    None

  • Accessory Mounting

    Cage: Multiple x 1/4"-20 Thread, Multiple x ARRI Anti-Twist 3/8"-16 Thread

  • Tripod Mounting

    Cage: Built-In Arca-Type Plate

  • Shoe Mounting

    Cage: Top: 1x Cold Shoe

  • Rosettes

    None

  • Rail Mounting

    Cage: 3x NATO Rail

  • Weight

    9 oz (255g)

Top Handle

Jump to...
  • Color

    Space Gray

  • Item Type

    Topside Handle with Cheeseplate-Style Handle

  • Built-In Controls

    Remote Trigger

  • Attachment Method

    Attaches via Rail Clamp

  • Rod Standard

    15mm Single Rod

  • Rod Ports

    1x 15mm Rod Port

  • Accessory Mounting

    Handle Shaft
    Multiple x 1/4"-20 Thread
    Multiple x 3/8"-16 Thread
    Multiple x ARRI Anti-Twist 3/8"-16 Thread

  • Shoe Mounting

    2x Built-In Cold Shoe Slot

  • Rosettes

    None

  • Rail Mounting

    1x NATO Rail Clamp

  • Ports

    1x LANC

  • Material

    Aluminum

  • Dimensions

    5 x 3 x 1" (12.7 x 7.6 x 2.5cm)

  • Weight

    6 oz (170g)

ARRI-Standard Baseplate

Jump to...
  • Support Type

    Baseplate

  • Grip Type

    None

  • Compatibility

    Blackmagic Pocket Cinema Camera 4K/6K

  • Rod Standard

    15mm LWS / 60mm Spacing

  • Battery Plate Type

    None

  • Accessory Mounting

    None

  • Camera Mounting

    ARRI Dovetail with 1/4"-20 Screw, 3/8"-16 Screw

  • Tripod Mounting

    Baseplate: 1/4"-20 Thread, 3/8"-16 Thread, Manfrotto 501

  • Rod Ports

    2x 15mm Rod Port

  • Shoe Mounting

    None

  • Rosettes

    None

  • Materials

    Aluminum

  • Dimensions

    5 x 4 x 3.5" (127 x 101.6 x 88.9mm)

  • Weight

    11.4 oz (323g)

Rosette Extension Arm

Jump to...
  • Material

    Aerospace Grade Aluminum

  • Adjustment Range

    8 to 11.5" (20.3 to 29.2cm)

  • Mounting

    4x ARRI-Style Rosette

  • Dimensions

    7.9 x 1.6 x 1.3" (20.1 x 4.1 x 3.3cm)

  • Weight

    6.3 oz (179g)

Rosette Handgrip

Jump to...
  • Materials

    Aluminum, Rubber

  • Attachment Method

    Attaches via Rosette

  • Accessory Mounting

    None

  • Shoe Mounting

    None

  • Rosettes

    2x ARRI Rosette w/ M6 Thread

  • Rail Mounting

    None

  • Item Type

    Left Side Handgrip
    Right Side Handgrip

  • Rotation

    Yes

  • Built-In Controls

    None

  • Dimensions

    6.8 x 1.8 x 1.4" (17.3 x 4.6 x 3.6cm)

  • Weight

    7.1 oz (201.3g)

PPSh Rod

Jump to...
  • Material

    Aluminum

  • Thread Type

    Female / Female

  • Thread Size

    12mm

  • Number of Rods

    2

  • Diameter

    15mm

  • Length

    12" (30.5cm)

  • Weight

    2 oz (57g)(each)

E Mount Cine Cap

Jump to...
  • Camera Body Mount

    Sony E

  • Material

    Anodized, Aircraft Grade Aluminum Alloy Metal

  • Diameter

    2.44"

  • Depth

    0.61"

  • Weight

    1.2 oz

Dual Rod Clamp

Jump to...
  • Material

    Metal

  • Rod Standard

    15mm LWS

  • Mounting

    2x ARRI-Style Rosettes with M6 Threads
    2x 15mm Rod Ports

  • Dimensions

    4.5 x 1.25 x 1.25" (11.4 x 3.2 x 3.2cm)

  • Weight

    4 oz (113g)

Cine V-Mount Battery Plate

Jump to...
  • Power Input

    DC Jack: 19V

  • Power Output

    D-Tap: 14.4V
    DC Jack: 15V
    DC Jack: 12V
    DC Jack: 7.4 to 8.4V
    DC Jack: 5V

  • Camera Power Method

    Connector

  • Plate Front / Battery Mount

    V-Mount

  • Plate Rear Mount

    15mm Rod Clamp

  • Number of Battery Bays

    1

  • Material of Construction

    ABS Plastic, Aluminum

  • Dimensions

    5.03 x 4.41 x 1.96" (12.77 x 11.20 x 4.97cm)

  • Weight

    11.3 oz (320.34g)

Dummy Battery Cable

Jump to...
  • Connector 1

    1.3/3.5 mm DC

  • Dummy Battery

    NP-FZ100

  • Output

    8V Regulated

  • Output Current

    2A

  • Length

    16 to 36" (41 to 91cm)

  • UPC Code

    5068650968274

About Kondor Blue Ultimate Rig

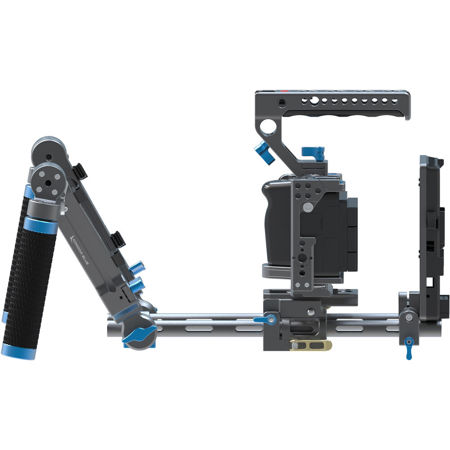

A comprehensive and versatile solution for videographers, the Ultimate Rig for Sony FX3 in Space Gray is designed to enhance your shooting experience. This rig includes a Cage with Trigger Top Handle, featuring a built-in Arca Swiss Plate on the bottom for seamless compatibility with the latest DJI Ronin. The cage is equipped with NATO rails on all sides, multiple 1/4" and four 3/8" threaded holes with ARRI Locator Pins for Anti-twist accessories, ensuring a secure and stable setup for your camera.

The rig also includes a 15mm ARRI-Standard Baseplate, designed to support 15mm LWS rods. This baseplate is ideal for setups with large lenses and matte boxes, thanks to its industry-standard dovetail connection and 15mm rod support. The baseplate features a side-load camera plate system for easy camera mounting, and it includes a Manfrotto 501-standard camera plate. The baseplate is rubber-padded to prevent scratching and minimize twisting.

The Ultimate Rig for Sony FX3 also comes with a Sony E Mount Cine Cap. This high-end, aerospace-grade aluminum alloy cap protects your camera's port and sensor while adding a sleek look to your rig. The cap features engraved lens orientation markings and precise ridges along the edge for easy gripping.

The rig includes 12" PPSh 15mm Rods, the lightest 15mm aluminum rods in the industry that don't compromise on strength. These rods are perfect for mounting accessories like follow focus, matte box, lens support, and servo motors.

The rig also features a Rosette Arms, Grips, and Clamp Bundle. This bundle includes a pair of rosette hand grips, adjustable extension arms, and a standard 15mm rod block. The grips are lined with textured rubber for comfortable handling, and they connect using quick-release rosettes.

The Cine V-Mount Battery Plate included in the rig features multiple DC outputs, allowing you to power multiple devices simultaneously. The battery plate also includes two 15mm rod connectors for easy mounting to your existing rig.

Lastly, the rig includes a Dummy Battery Cable. This cable allows you to power your cameras from the Kondor Blue V Mount or Gold Mount Battery Plates small DC port. The cable is 16" long when relaxed and stretches to 36" long when needed, providing flexibility and convenience during shoots.

In summary, the Ultimate Rig for Sony FX3 in Space Gray is a comprehensive, high-quality, and versatile solution for professional videographers, designed to enhance your shooting experience and improve the quality of your work.

Kondor Blue Ultimate Rig Features

  • Cage with Trigger Top Handle Features
  • Built-in Hex tools on the bottom of the cage
  • HDMI Clamp Included
  • Modular design, allowing you to remove side plates if desired
  • 15mm ARRI-Standard Baseplate Features
  • ARRI-standard dovetail
  • 15mm LWS rod support
  • Side-load camera plate system
  • Manfrotto 501 standard camera plate
  • 1/4"-20 and 3/8"-16 mounting screws
  • 1/4"-20 and 3/8"-16 tripod mount threads
  • Aerospace Grade Aluminum
  • Sony E Mount Cine Cap Features
  • Protects the camera port and sensor with style
  • Crafted from aerospace-grade aluminum alloy
  • Anodized in a sleek space gray finish
  • Locks into place like a lens
  • Engraved with lens mounting orientation indicators
  • Precise ridges along the edge aid in gripping the cap
  • Packaged like a jewel
  • 12" PPSh 15mm Rod Features
  • 12-Inch Threaded Rod with PPSh Barrel Design
  • Lightweight
  • Durable
  • Aerospace Grade Aluminum
  • Extendable Options
  • Rosette Arms, Grips and Clamp Features
  • Connects via ARRI Rosettes
  • Provides Quick Adjustments
  • Aerospace-Grade Aluminum
  • Cine V-Mount Battery Plate Features
  • Features multiple DC outputs
  • Can charge a Battery
  • Aerospace Grade Aluminum
  • 15mm rod connectors
  • Dummy Battery Cable Features
  • Connect our Battery Plates to Your Panasonic LUMIX Camera
  • 1.35 DC to Dummy Battery Connectivity
  • 16" Contracted Length
  • 36" Extended Length
  • Input Voltage: 12V - 17V
  • Output Voltage: 7.4/8.4V (Regulated through our Battery Plate)
    Output Current: 2A

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Cage with Trigger Top Handle featuring built-in Arca Swiss Plate for compatibility with DJI Ronin
  • 15mm ARRI-Standard Baseplate with side-load camera plate system for easy camera mounting
  • Aerospace-grade aluminum Sony E Mount Cine Cap for camera port and sensor protection
  • Lightweight 12" PPSh 15mm Rods for mounting various camera accessories

What's in the box:

  • Full Camera Cage
  • Trigger Top Handle
  • 15mm ARRI-Standard Baseplate
  • Sony E Mount Cine Cap
  • 2x 12" PPSh 15mm Rods
  • 2x Rosette Extension Arm (Right/Left)
  • 2x Quick Release Rosette Handgrip (Right/Left)
  • 15mm Dual Rod Clamp with ARRI-Style Rosettes
  • Cine V-Mount Battery Plate
  • Dummy Battery Cable
  • Kondor Blue Lifetime Limited Warranty
