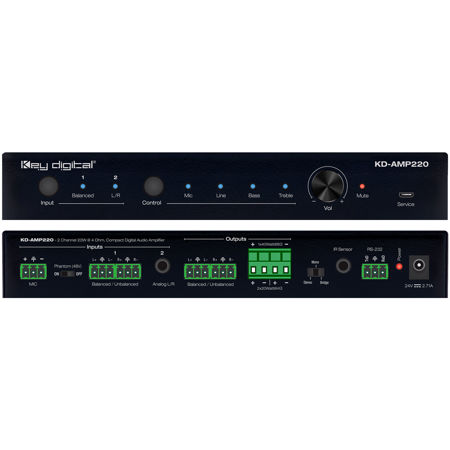

Key Digital KD-AMP220 2-Ch Compact Digital Amplifier, 20W Per Ch at 8 Ohm

Key Digital KD-AMP220 2-Ch Compact Digital Amplifier, 20W Per Ch at 8 Ohm

SKU: KDAMP220
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Key Digital KD-AMP220 Specifications

I/O Connections

I/O Connections

Jump to...

  • Analog Inputs

    One (1) 6-pin Phoenix Connector
    One (1) 3.5mm TRS Connector

  • Microphone Input

    One (1) 3-pin Phoenix Connector

  • Control (Front Panel)

    Push Button, Rotary Knob

  • Control (Rear Panel)

    RS-232 via One (1) 3-pin Phoenix Connector
    IR via One (1) 3.5mm TRS Connector

  • Microphone 48V Phantom Power Mode Switch

    One (1) 2-Position Slide Switch

  • Output Signal Format Selector

    One (1) 3-Position Slide Switch

  • Balanced/Unbalanced Analog Audio Output

    One (1) 6-pin Phoenix Connector

  • Speaker Output

    One (1) 4-pin/5 mm Phoenix Connector

  • 24V DC Power

    One (1) Barrel (5.5 mm OD, 2.1 mm ID)

Audio Performance

Jump to...

  • Input Impedance

    >10k Ohm

  • Output Impedance

    50 Ohm Analog Output
    4/8 Ohm Speaker Output

  • Maximum Rated Power Output

    40 Watts

  • Frequency Response

    120 Hz to 20 kHz

  • Common Mode Rejection Ratio (CMRR)

    >70 dB at 20 Hz to 20 kHz

  • Signal to Noise Ratio (SNR)

    80 dB (Max)

  • Total Harmonic Distortion + Noise

    1% at 1 kHz; 0.3% at 20 kHz at Nominal Level

  • Voltage Gain

    32 dB

Power, ESD and Regulatory

Jump to...

  • Minimum Power Consumption

    5 watts

  • Maximum Power Consumption

    45 watts

  • Power Supply Input Voltage

    100-240v AC at 50/60 Hz at 0.5 A

  • Power Supply Output Rating

    24V DC at 2.71 A

  • ESD Protection

    15kV

  • Device Regulatory

    CE, FCC

  • Power Supply Regulatory

    CE, FCC

Chassis and Environmental

Jump to...

  • Enclosure

    Painted Aluminum

  • Operating Temperature

    +32 to +104 Degree F (0 to +40 Degree C)

  • Operating Humidity

    20% to 90%, Non-condensing

  • Storage Temperature

    +14 to +140 Degree F (-10 to +60 Degree C)

  • Storage Humidity

    20% to 90%, Non-condensing

  • Dimensions

    8.661 x 1.299 x 4.094" (21.9 x 3.29 x 10.39cm)

  • Weight

    1.153 lb (0.522kg)

Other

Jump to...

  • UPC Code

    815996020358

About Key Digital KD-AMP220

The KD-AMP220 is a 2x20 watt Class-D amplifier with 8 Ohm speaker output ideal for installation in presentation spaces. Input connections accommodate microphone, line level balanced/unbalanced, and line level 3.5mm stereo analog audio inputs. The output is a mix of audio from the microphone input and the selected audio input. Microphone and output volume levels may be variably controlled via IR, RS-232, or the front panel, and speaker level output may be set to bridge, stereo, or mono mode.

Class D 2 Channel Amplification: 2Ch 20 WPC @ 8 Ohm, 40 WPC @ 4 Ohm BRIDGED

Mixing: Output is a mix of microphone and the selected audio input

Signal Processing:
• Variable volume level set for each input
• Variable volume, bass, and treble for output

Inputs: Microphone (3-pin balanced, condenser/dynamic), 6-pin balanced stereo, 3.5mm stereo

Phantom Power: 48V phantom power for integration with condenser microphones

Outputs: Pre-amp line level (6-pin balanced), speaker level

Speaker Level Output: Bridge, stereo, or mono modes selectable

Noise gate: for consistent audio levels, prevention of ambient noise

Control: Front panel, RS-232, IR with external IR Sensor (included)

Control System Support: Compass Control Pro ready. Fully controllable by all IR, and RS-232 supported control systems via open API.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • KD-AMP220 2-Channel Compact Digital Amplifier
  • IR Remote Control
  • Key Digital 3 Year Limited Warranty
