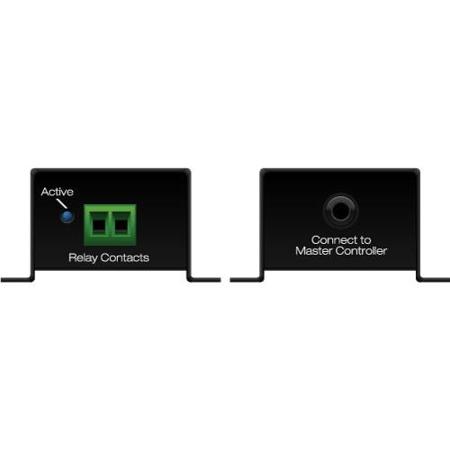

Key Digital KD-CCXR200 Converts MCP35 I/O Port to Contact Closure/Relay

Key Digital KD-CCXR200 Converts MCP35 Multi-function I/O Port to Contact Closure/Relay

SKU: KDCCXR200
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Key Digital KD-CCXR200 Specifications

  • Color

    Black

  • Compatibility

    KD-MC1000, KD-MC2500 and Digital IQ Series Matrix Switchers

  • UPC Code

    819505001500

About Key Digital KD-CCXR200

Compatible with:
KD-MC1000, KD-MC2500 and Digital IQ Series Matrix Switchers

Multi-function 3.5mm based Compass Control Port - MPC35 supports the following seven features:
• IR output
• IR Input
• RS232 bi-directional
• Voltage sensor
• Voltage trigger
• PCM audio sensor
• Composite Video sensor

Converts:
Any I/O Multifunction Compass Control Port (MPC35) to Contact Closure/Relay when set to 12V Output Voltage Trigger Mode

Contact Functionality:
Contact Normally Open, if 12V applied - Contact Closed.

3.5mm mono input connection:
Use a male-to-male 3.5mm mono cable from KD-MC1000, KD-MC2500 and Digital IQ Series Matrix Switchers with built-in Compass Control Pro

One Contact Closure/Relay Output

Contact Closure Maximum Rating:
250V/2A

Maximum Distances:
• 3.5mm mono cable: 10 feet
• Contact Closure/Relay Output with one twisted pair of CAT5e/6 cable: 100 feet

No external power required

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • KD-CCXR200 Converts MCP35 Multi-function I/O Port to Contact Closure/Relay
  • Key Digital 3 Year Limited Warranty
